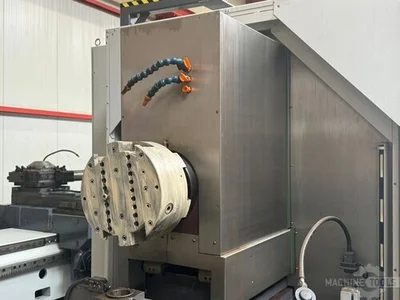

Face plate / head diameter 320 mm
Stroke X-Axis
Stroke Y- Axis
Hydraulic work piece tension true "swimming jaws"
Coolant tank 400 L with GRUNDFOSS PUMPS
Stroke W Axis around 500 mm

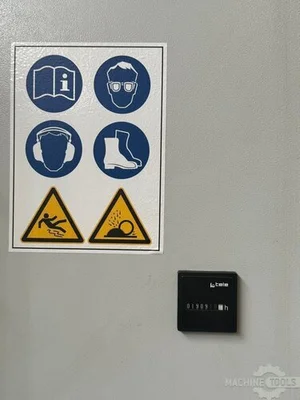

1910 Power-On Hours
| Power | 10 kW | 13.4 hp |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 1,000 mm | 39.37" |
| Table-L | 4,100 mm | 161.42" |
| Dimensions | 7800 x 2300 x 2250 mm | 7800 x 2300 x 2250 mm |
| Weight | 15000 kg | 15000 kg |
Table Length: 4100 mm
Table Width: 1000 mm
Speeds / ranges: 3000 Rpm
Power: 10 kW
Ram size: 320 mm
Number of controlled axis: 4 Axis = Z - X1 - X2 - W
Length: 7800 mm
Width: 2300 mm
Height: 2250 mm
Weight: 15000 kg
Face plate / head diameter 320 mm
Stroke X-Axis
Stroke Y- Axis
Hydraulic work piece tension true "swimming jaws"
Coolant tank 400 L with GRUNDFOSS PUMPS
Stroke W Axis around 500 mm
1910 Power-On Hours
Table Length: 4100mm
Table Width: 1000mm
Speeds / ranges: 3000Rpm
Power: 10kW
Ram size: 320mm
Number of controlled axis:4 Axis = Z - X1 - X2 - W
Length: 7800mm
Width: 2300mm
Height: 2250mm
Weight: 15000kg
