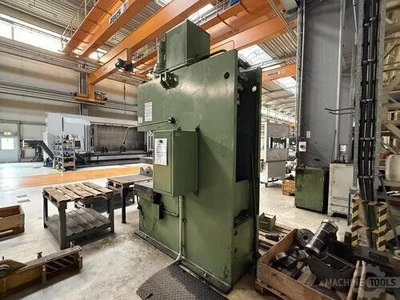

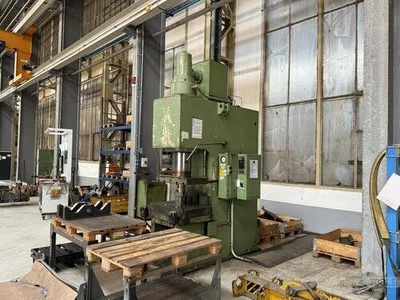

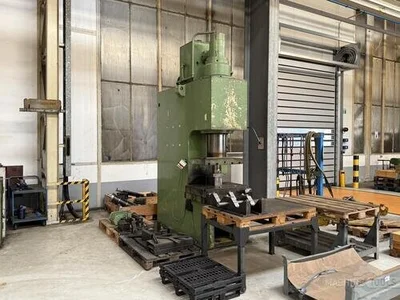

USED 1980 WMW ZEULENRODA PYE 160 SS

C-Frame construction
Die height 850 mm
Thickness bolster plate 100 mm
Throath C Side 360 mm

Capacity Kg: 160000
Table Length: 1250 mm
Table Width: 600 mm
Ram stroke: 500 mm
Approche speed: 100 mm/min.
Working speed: 10 mm/min.
Return speed: 125 mm/min.
Power: 22,5 kW
Length: 2150 mm
Width: 1250 mm
Height: 3600 mm
Weight: 7500 kg

C-Frame construction
Die height 850 mm
Thickness bolster plate 100 mm
Throath C Side 360 mm


Capacity Kg: 160000
Table Length: 1250mm
Table Width: 600mm
Ram stroke: 500mm
Approche speed:100mm/min.
Working speed:10mm/min.
Return speed: 125mm/min.
Power: 22,5kW
Length: 2150mm
Width: 1250mm
Height: 3600mm
Weight: 7500kg
