X Stroke 1835 mm
Z Stroke 1000 mm
Table load 20 Ton
Ram size 230 x 230 mm
Stroke crossrail 800 mm
Stroke crossrail in 5 steps each 200 mm
Live tools 2000 Rpm
Power live tools 15 kW
ATC 18 station max L = 450 mm
Taper BT50 BIG PLUS
Full C-Axis 360.000
Under power in AEROSPACE precision plant
2020 Table bearing replaced
2020 Ram bearing replaced
2025 new chip conveyor
| Swing | 2,400 mm | 94.488" |
| Power | 48 kW | 64.4 hp |
| Max RPM | 200 RPM | 200 RPM |
| Turning Dia | 2,400 mm | 94.488" |
| Live Tooling | Yes | Yes |
| Dimensions | 9300 x 6300 x 6700 mm | 9300 x 6300 x 6700 mm |
| Weight | 32000 kg | 32000 kg |
Max. turning Ø: 2400 mm
Table Ø: 2000 mm
ATC / revolver: 18
Speeds / ranges: 200 Rpm
Power: 48 kW
Maximum turning height: 1500 mm
C-Axis: 360000 °
Length: 9300 mm
Width: 6300 mm
Height: 6700 mm
Weight: 48000 kg
X Stroke 1835 mm
Z Stroke 1000 mm
Table load 20 Ton

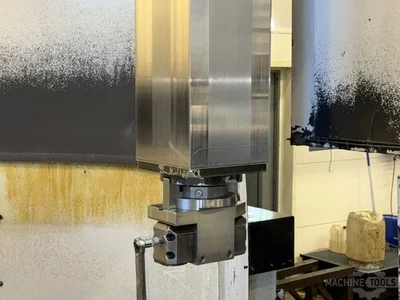

Ram size 230 x 230 mm
Stroke crossrail 800 mm
Stroke crossrail in 5 steps each 200 mm
Live tools 2000 Rpm
Power live tools 15 kW
ATC 18 station max L = 450 mm
Taper BT50 BIG PLUS
Full C-Axis 360.000
Under power in AEROSPACE precision plant
2020 Table bearing replaced
2020 Ram bearing replaced
2025 new chip conveyor
Max. turning Ø: 2400mm
Table Ø: 2000mm
ATC / revolver: 18
Speeds / ranges: 200Rpm
Power: 48kW
Maximum turning height:1500mm
C-Axis: 360000°
Length: 9300mm
Width: 6300mm
Height: 6700mm
Weight: 32000kg
