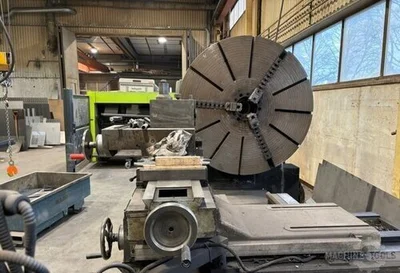

3 chuck 1200 mm
Heidenhain Digital read out syhstem X / Z Axis
Feeds in 2 directions
Multi fix Tool systems with inserts
| Swing | 1,390 mm | 54.724" |
| Spindle Bore | 150 mm | 5.9055" |
| Power | 18 kW | 24.1 hp |
| RPM | 350 RPM | 350 RPM |
| Swing Over Cross Slide | 1,020 mm | 40.158" |
| Dimensions | 6600 X 1800 x 2000 mm | 6600 X 1800 x 2000 mm |
| Weight | 18000 KG | 18000 KG |
DBC Turning Length: 3000 mm
Swing over bed Ø: 1390 mm
Swing over cross slide Ø: 1020 mm
Spindle bore: 150 mm
Bed width: 700 mm
Stroke pinole: 300 mm
Spindle taper: Metric 80 Mk
Power: 18 kW
Speeds / ranges: 0 - 350 Rpm
Workpiece load: 8000
Length: 6600 mm
Width: 1800 mm
Height: 2000 mm
Weight: 18000 kg
3 chuck 1200 mm
Heidenhain Digital read out syhstem X / Z Axis
Feeds in 2 directions
Multi fix Tool systems with inserts
DBC Turning Length: 3000mm
Swing over bed Ø: 1390mm
Swing over cross slide Ø:1020mm
Spindle bore: 150mm
Bed width: 700mm
Stroke pinole: 300mm
Spindle taper: Metric 80Mk
Power: 18kW
Speeds / ranges: 0 - 350Rpm
Workpiece load: 8000
Length: 6600mm
Width: 1800mm
Height: 2000mm
Weight: 18000kg
