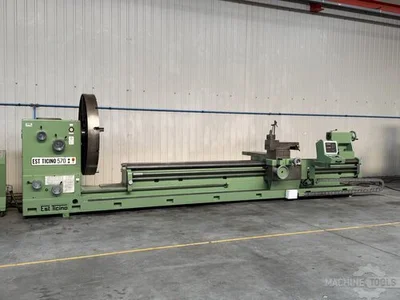

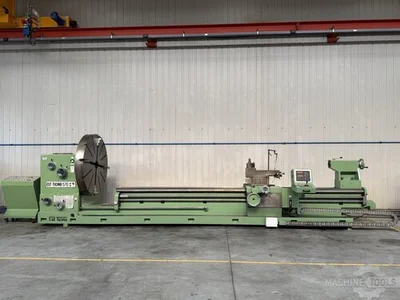

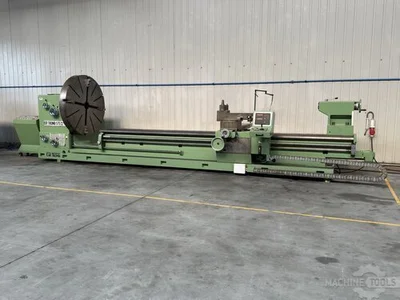

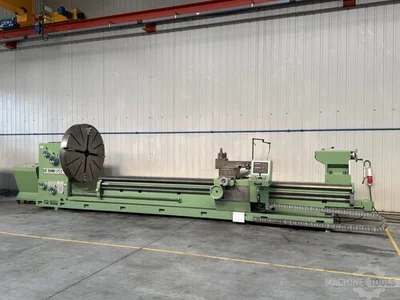

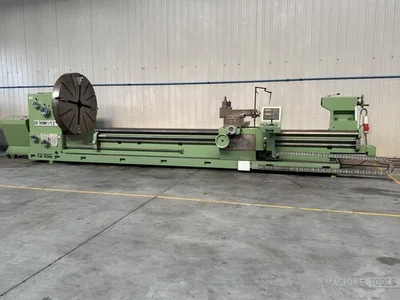

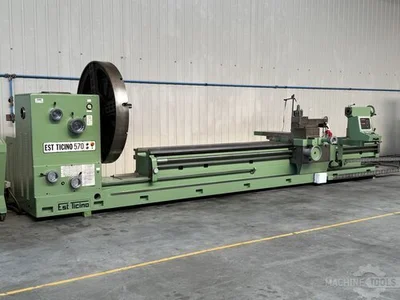

USED 1987 EST TICINO ET BM 570

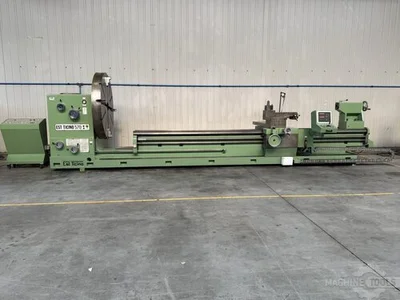

Please note: not original pictures its only 3000 length not 5000 mm
3 Guide way construction
2 Axis HeidenHain Digital readout
Feed in 3 directions all tool post slide
Central lubrication
Work load flying in chuck 2500 Kg
Work load NOT supported 8500 Kg
Work load supported 10000 Kg
Optional 4 chuck ca 1200 mm
Optional 4 chuck ca 1500 mm
Optional package with 3 steady rest fixed model from  .... to ....

DBC Turning Length: 5000 / 7500 mm
Swing over bed Ø: 1140 mm
Swing over cross slide Ø: 810 mm
Swing in the gap Ø: 1500 mm
Gap length: 2500 mm
Spindle bore: 130 mm
Bed width: 600 mm
Tailstock spindle Ø: 130 Ø
Stroke pinole: 300 mm
Spindle taper: 6 Mk
Power: 25 kW
Speeds / ranges: 9 - 900 Rpm
Length: 7500 mm
Width: 2300 mm
Height: 1650 mm
Weight: 12000 kg

Please note: not original pictures its only 3000 length not 5000 mm

3 Guide way construction
2 Axis HeidenHain Digital readout
Feed in 3 directions all tool post slide
Central lubrication

Work load flying in chuck 2500 Kg
Work load NOT supported 8500 Kg
Work load supported 10000 Kg

Optional 4 chuck ca 1200 mm
Optional 4 chuck ca 1500 mm
Optional package with 3 steady rest fixed model from  .... to ....

DBC Turning Length: 5000 / 7500mm
Swing over bed Ø: 1140mm
Swing over cross slide Ø:810mm
Swing in the gap Ø: 1500mm
Gap length: 2500mm
Spindle bore: 130mm
Bed width: 600mm
Tailstock spindle Ø: 130Ø
Stroke pinole: 300mm
Spindle taper: 6Mk
Power: 25kW
Speeds / ranges: 9 - 900Rpm
Length: 7500mm
Width: 2300mm
Height: 1650mm
Weight: 12000kg
