Long stroke CNC Press brake
8 Axis controlled

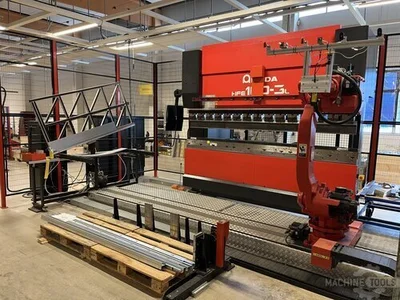

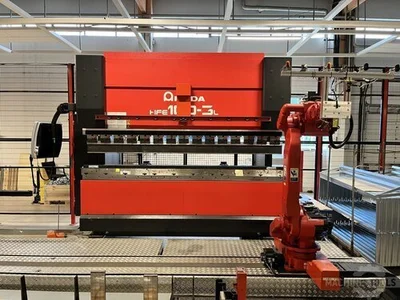

ASTRO 50Y AMADA Robot

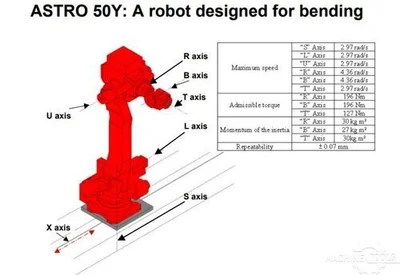

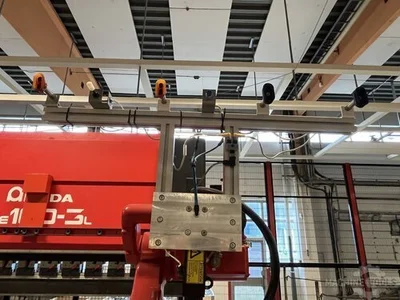

ASTRO 50 Y bending cell is composed of an HFE Pressbrake associated with an 7-axis robot.
When machining medium / fine thick and large dimension parts.

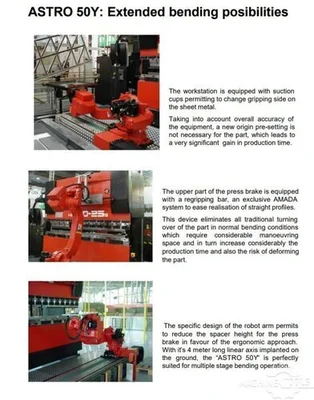

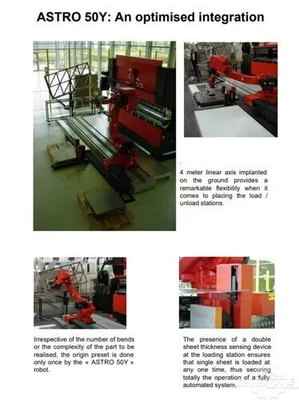

Machine turns out to be highly polyvalent thanks to a 4-m long linearaxis and numerous grippers.

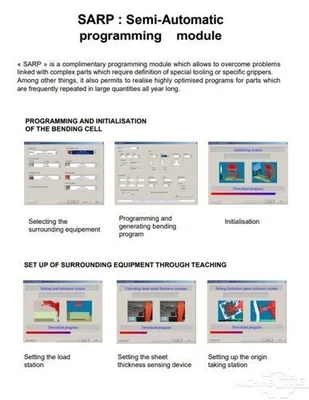

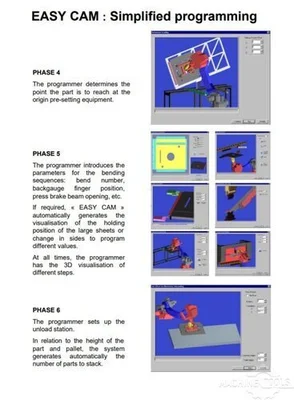

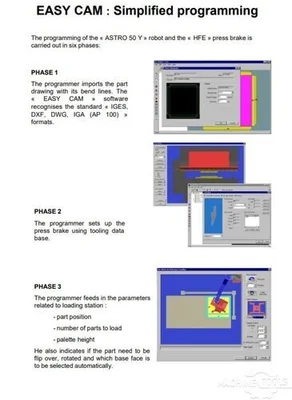

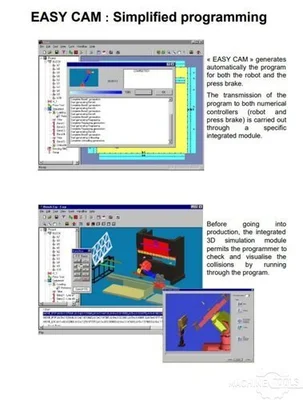

Programming has become particularly easy through EASY CAM software

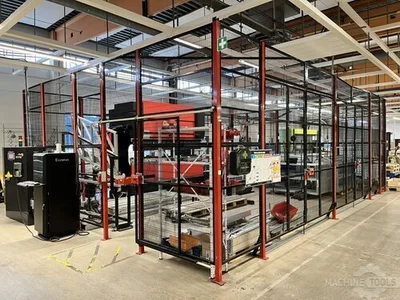

Safety CE Fence around machine and tobot
| Tonnage | 100 T | 90.719 t |
| Stroke | 200 mm | 7.874" |
| Dimensions | 8000 x 4000 x 2800 mm | 8000 x 4000 x 2800 mm |
| Weight | 7800 kg | 7800 kg |

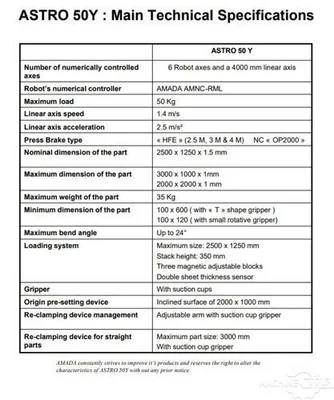

Max. bending length: 3110 mm
Distance between column: 2705 mm
Max. pressing force: 100 T
Dis. Beam - Table: 580? mm
Beam stroke: 200 mm
Troth beam: 420 mm
Approch speed: 100 mm/min.
Working speed: 10 mm/min.
Return speed: 100 mm/min.
Adjustment X-Axis back gauge: 1000 mm
Number of controlled axis: 8 + 7 Robot

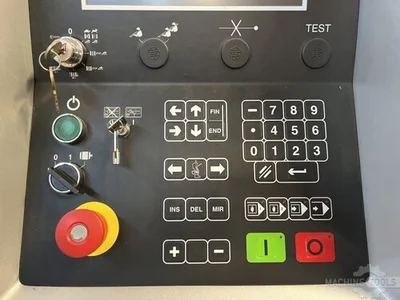

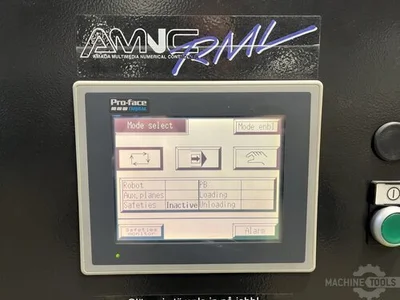

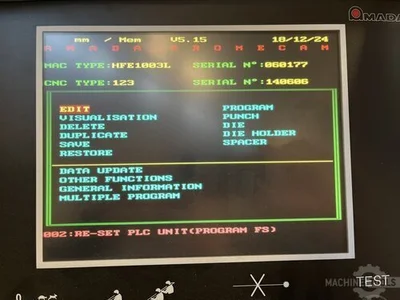

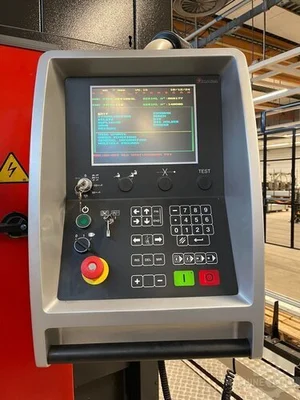

Control: OPERATEUR
Power: 14 kW
Length: 8000 mm
Width: 4000 mm
Height: 2800 mm
Weight: 7800 kg
Long stroke CNC Press brake
8 Axis controlled
ASTRO 50Y AMADA Robot
ASTRO 50 Y bending cell is composed of an HFE Pressbrake associated with an 7-axis robot.
When machining medium / fine thick and large dimension parts.
Machine turns out to be highly polyvalent thanks to a 4-m long linearaxis and numerous grippers.
Programming has become particularly easy through EASY CAM software
Safety CE Fence around machine and tobot
Max. bending length: 3110mm
Distance between column: 2705mm
Max. pressing force: 100T
Dis. Beam - Table: 580?mm
Beam stroke: 200mm
Troth beam: 420mm
Approch speed: 100mm/min.
Working speed: 10mm/min.
Return speed: 100mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 8 + 7 Robot
Control: OPERATEUR
Power: 14kW
Length: 8000mm
Width: 4000mm
Height: 2800mm
Weight: 7800kg
