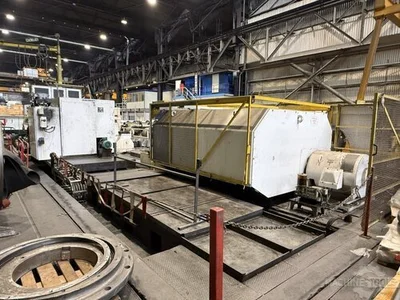

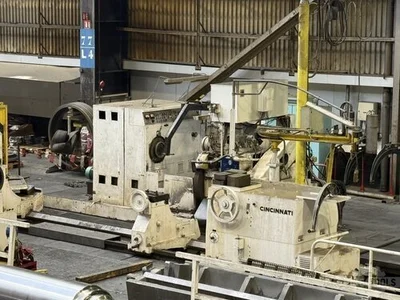

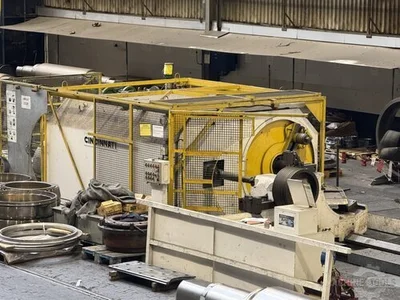

USED 1970 CINCINNATI 60 X 216

Covex and Concave grinding
6 steady rest included
2 steady rest hydrostatic
Coolant system with magnetic filter
Measuring system with 5 arms caliber:
Arm 1: Working area 1300 to 1600 mm
Arm 2: Working area 1000 to 1300 mm
Arm 3: Working area   700 to 1000 mm
Arm 4: Working area   400 to   700 mm

Centre height: 787 mm
Grinding Ø: 1574 mm
Grinding length: 5800 mm
Grinding stone dimensions: 914 x 101,6 x 304,50 mm
Grinding stone speeds: 1800 Rpm
Length: 15100 mm
Width: 5500 mm
Height: 3550 mm
Weight: 120000 kg

Covex and Concave grinding
6 steady rest included
2 steady rest hydrostatic
Coolant system with magnetic filter

Measuring system with 5 arms caliber:
Arm 1: Working area 1300 to 1600 mm
Arm 2: Working area 1000 to 1300 mm
Arm 3: Working area   700 to 1000 mm
Arm 4: Working area   400 to   700 mm

Centre height: 787mm
Grinding Ø: 1574mm
Grinding length: 5800mm
Grinding stone dimensions:914 x 101,6 x 304,50mm
Grinding stone speeds: 1800Rpm
Length: 15100mm
Width: 5500mm
Height: 3550mm
Weight: 120000kg
