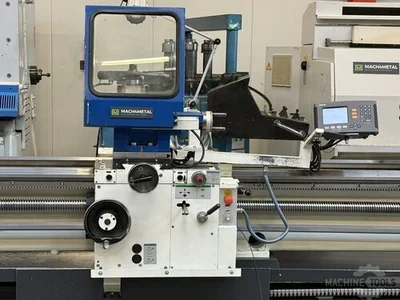

HeidenHain ND-780 with 3 axis Read-outX, Zo, Z
HeidenHain LS388C Scales

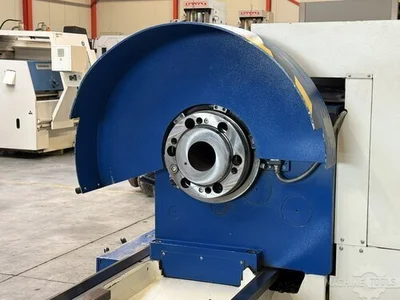

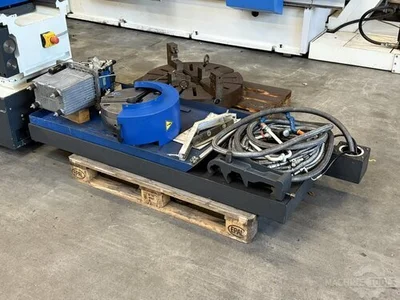

2 x CE-Chuck cover for 500 & 900 mm

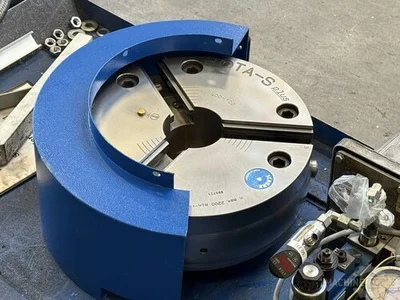

SCHUNK 3 chuck Ø 400-102
Bison 4 chuck ....

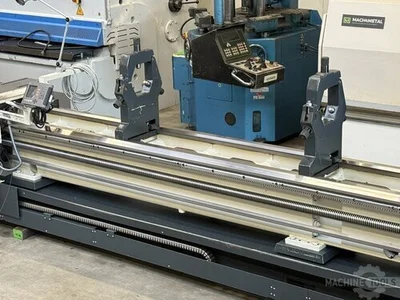

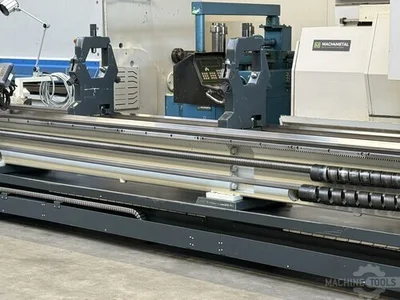

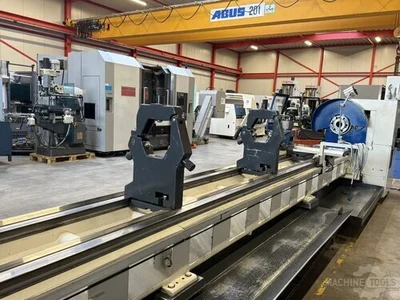

Steady rest Ø 30 - 210 mm
Steady rest Ø 210 - 370 mm
| Swing | 800 mm | 31.496" |
| Centers | 6,000 mm | 236.22" |
| Spindle Bore | 92 mm | 3.622" |
| Power | 15 kW | 20.1 hp |
| RPM | 1,400 RPM | 1,400 RPM |
| Swing Over Cross Slide | 520 mm | 20.473" |
| Dimensions | 9000 x 1900 x 2100 mm | 9000 x 1900 x 2100 mm |
| Weight | 7670 kg | 7670 kg |
DBC Turning Length: 6000 mm
Swing over bed Ø: 800 mm
Swing over cross slide Ø: 520 mm
Swing in the gap Ø: 870 mm
Gap length: 320 mm
Spindle bore: 92 mm
Spindle power: 15 kW
Bed width: 550 mm
Spindle taper: 6 Mk

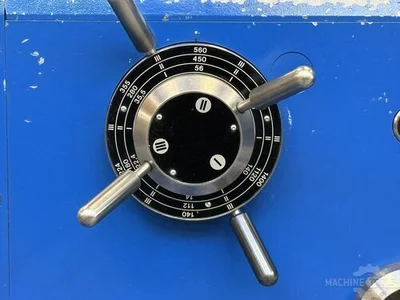

Speeds / ranges: 14 - 1400 Rpm
Length: 9000 mm
Width: 1900 mm
Height: 2100 mm
Weight: 7670 kg
HeidenHain ND-780 with 3 axis Read-outX, Zo, Z
HeidenHain LS388C Scales
2 x CE-Chuck cover for 500 & 900 mm
SCHUNK 3 chuck Ø 400-102
Bison 4 chuck ....
Steady rest Ø 30 - 210 mm
Steady rest Ø 210 - 370 mm
DBC Turning Length: 6000mm
Swing over bed Ø: 800mm
Swing over cross slide Ø:520mm
Swing in the gap Ø: 870mm
Gap length: 320mm
Spindle bore: 92mm
Spindle power: 15kW
Bed width: 550mm
Spindle taper: 6Mk
Speeds / ranges: 14 - 1400Rpm
Length: 9000mm
Width: 1900mm
Height: 2100mm
Weight: 7670kg
