4 side complete machining

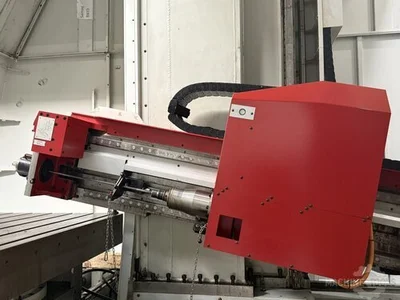

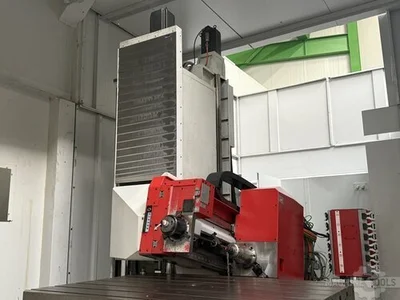

Swiveling drilling and milling unit
DCM Dynamic Collison Monitoring
CAM-Model
QCK ( Quick Check Kinematics)
Transfer bore cycle (380-382)
90 Bar IKZ Coolant system

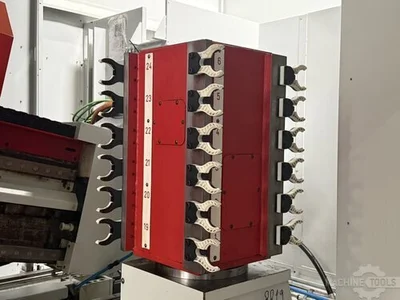

Extra ATC Tower 24 position (4 x 6) HSK 63
Double ballscrew construction
Clear tank 1650 L and Waste tank 1300 L
Chip conveyor
| Max Dia. Hole Drilled | 36 mm | 1.4173" |
| Max Drilling Depth | 1,250 mm | 49.213" |
| Dimensions | 8100 x 6300 x 4300 mm | 8100 x 6300 x 4300 mm |
| Weight | 31000 kg | 31000 kg |
Max. drill Ø steel: 36 mm
Drilling depth: 1250 mm
X - Travel: 1600 mm
Y - Travel: 1250 mm
Z - Travel: 1100 mm
W - Travel: 1600 mm
Table load: 7000
Table size L x W / or ø: 1500 x 1100 mm
Spindle taper: HSK-63 Mk
Power on spindle: 23 kW
Speeds / ranges: 6000 Rpm
Length: 8100 mm
Width: 6300 mm
Height: 4300 mm
Weight: 31000 kg
4 side complete machining
Swiveling drilling and milling unit
DCM Dynamic Collison Monitoring
CAM-Model
QCK ( Quick Check Kinematics)
Transfer bore cycle (380-382)
90 Bar IKZ Coolant system
Extra ATC Tower 24 position (4 x 6) HSK 63
Double ballscrew construction
Clear tank 1650 L and Waste tank 1300 L
Chip conveyor
Max. drill Ø steel: 36mm
Drilling depth: 1250mm
X - Travel: 1600mm
Y - Travel: 1250mm
Z - Travel: 1100mm
W - Travel: 1600mm
Table load: 7000
Table size L x W / or ø:1500 x 1100mm
Spindle taper: HSK-63Mk
Power on spindle: 23kW
Speeds / ranges: 6000Rpm
Length: 8100mm
Width: 6300mm
Height: 4300mm
Weight: 31000kg
