FP Model ideal for variety of application Medium-Large size Components

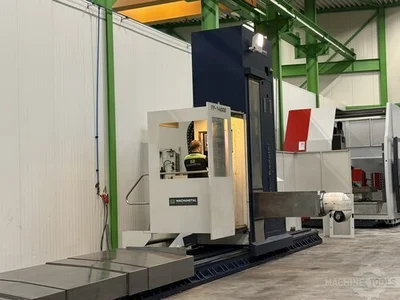

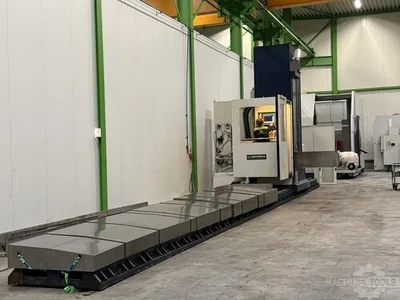

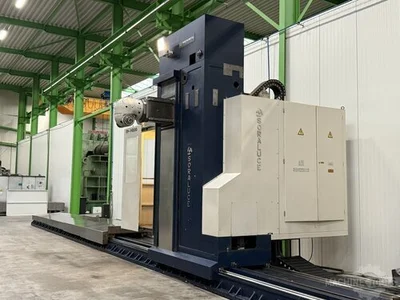

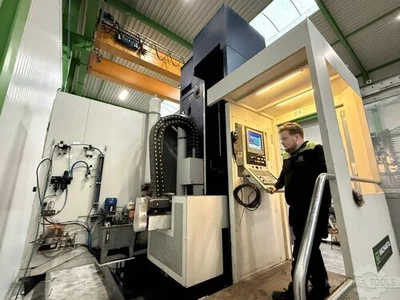

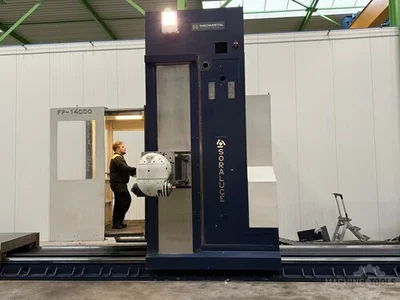

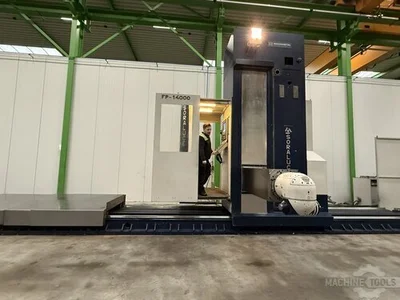

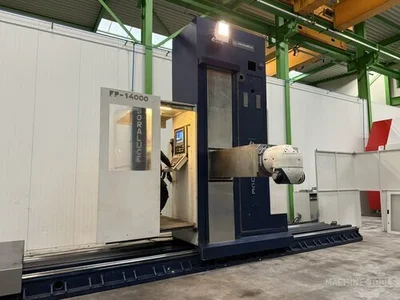

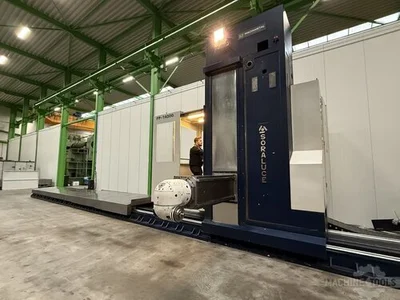

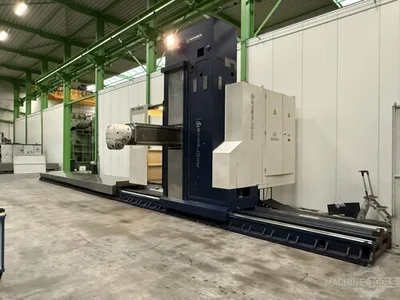

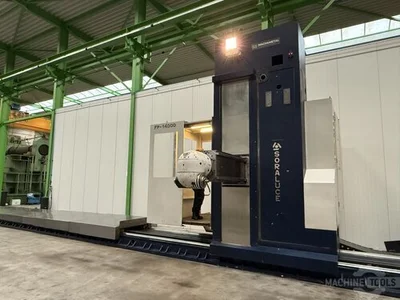

Floor type milling boring machine
High dynamics with speeds of 35M/Min

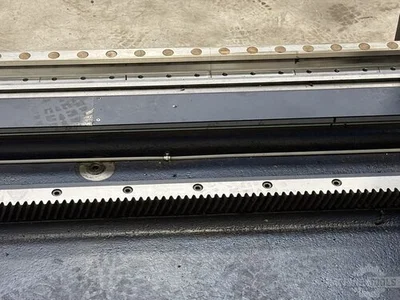

INA linear guiding system

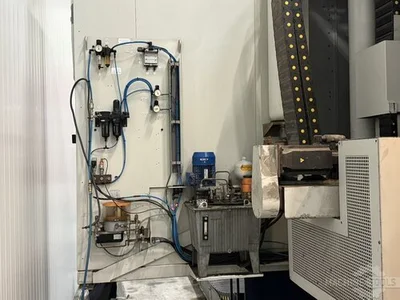

Hydro mechanical clamping slides

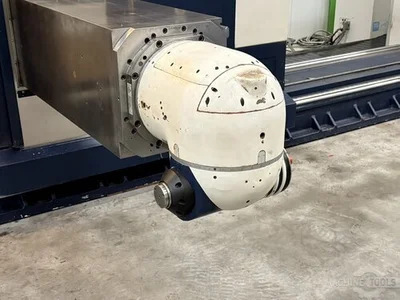

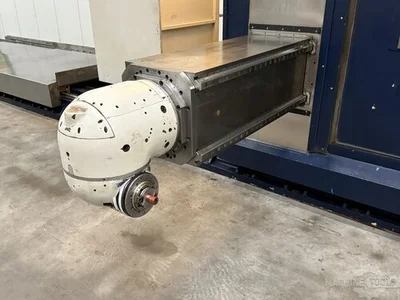

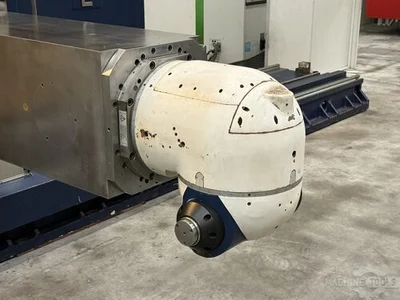

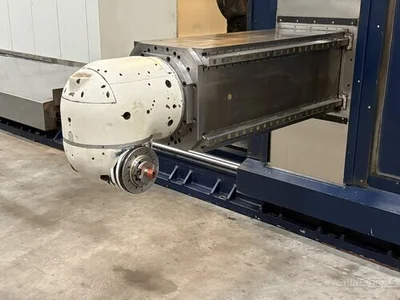

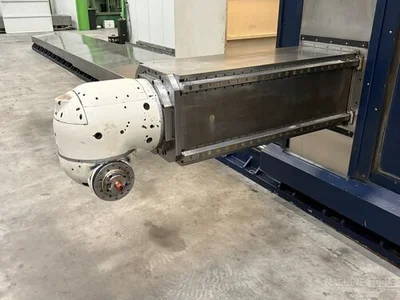

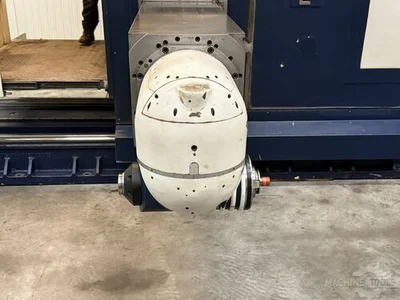

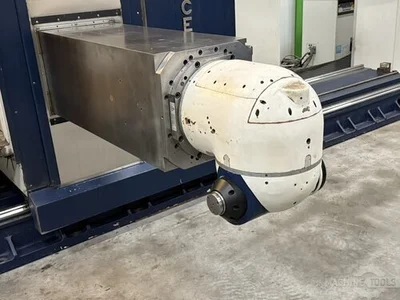

Orthogonal milling head for machining at any desired angle
Y Travel = 2600 + 500 head upright = 3100 mm stroke in Y Axis
| Table-W | 2,000 mm | 78.74" |
| Table-L | 14,000 mm | 551.18" |
| # Axis | 3 | 3 |
| Travel-Long | 14,000 mm | 551.18" |
| Travel-Cross | 2,100 mm | 82.677" |
| Power | 43 kW | 57.7 hp |
| RPM | 5,000 RPM | 5,000 RPM |
| Taper | ISO 50 | ISO 50 |
| Dimensions | 22000 x 5000 x 4900 mm | 22000 x 5000 x 4900 mm |
| Weight | 31000 kg | 31000 kg |
X-Axis: 14000 mm
Y-Axis: 2600 mm
Z-Axis: 1500 mm
Table Length: 14000 mm
Table Width: 2000 mm
Table load: 50000
Power on spindle: 43 kW
Spindle speeds: 5000 Rpm
Spindle Taper: 50 ISO/Bt/Mk
Feed rate X-Axis: 35000 mm/min.
Feed rate Y-Axis: 35000 mm/min.
Feed rate Z-Axis: 35000 mm/min.
Millinghead auto-index: Orthogonal 1 Gr °
Working hours: 3500 H
Length: 22000 mm
Width: 5000 mm
Height: 4900 mm
Weight: 31000 kg
FP Model ideal for variety of application Medium-Large size Components
Floor type milling boring machine
High dynamics with speeds of 35M/Min
INA linear guiding system
Hydro mechanical clamping slides
Orthogonal milling head for machining at any desired angle
X-Axis: 14000mm
Y-Axis: 2100mm
Z-Axis: 1500mm
Table Length: 14000mm
Table Width: 2000mm
Table load: 50000
Power on spindle: 43kW
Spindle speeds: 5000Rpm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 35000mm/min.
Feed rate Y-Axis: 35000mm/min.
Feed rate Z-Axis: 35000mm/min.
Millinghead auto-index:Orthogonal 1 Gr°
Working hours: 3500H
Length: 22000mm
Width: 5000mm
Height: 4900mm
Weight: 31000kg
