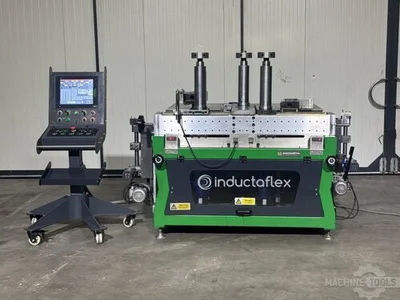

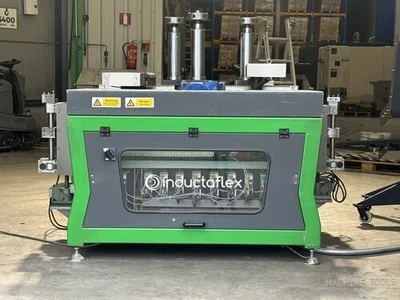

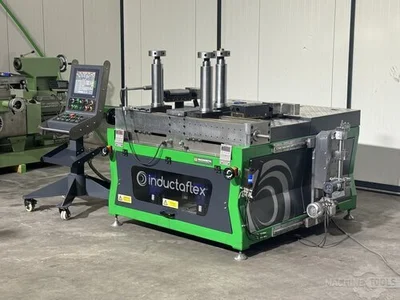

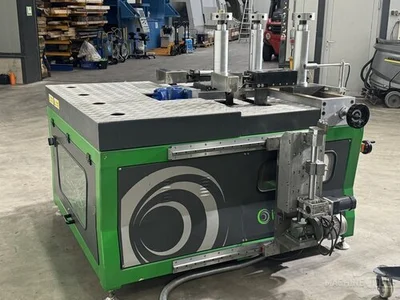

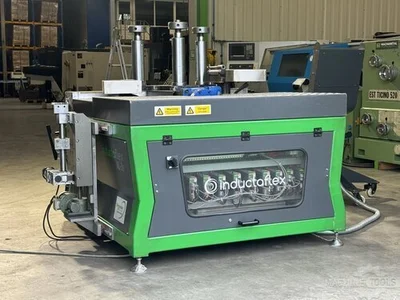

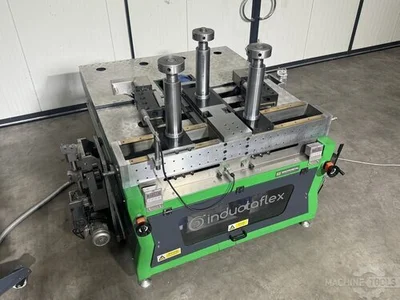

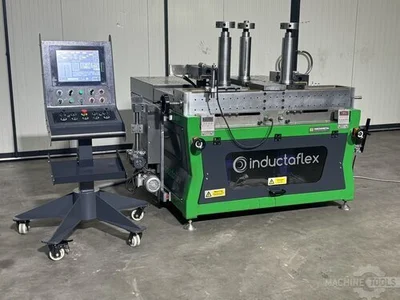

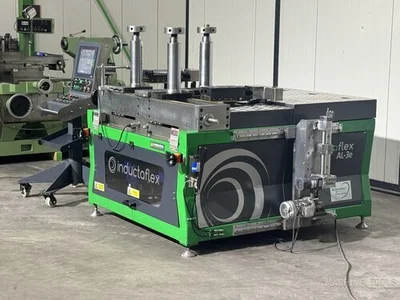

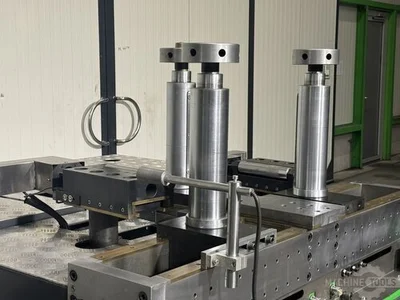

USED 2018 INDUCTAFLEX AL-3E
Overview
Description
3 rolls driven Servo
Torq each roller 3500 nM
Electrically support rolls

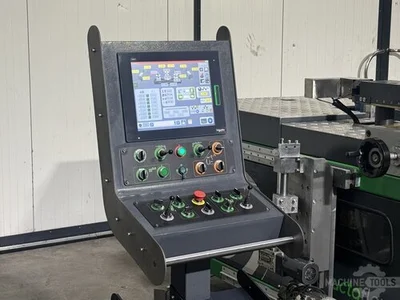

Intelligent software :
Ellipse program
U Bend shapes
control of tangents
Auto section detector
Specifications
| Horz/Vert | Horz | Horz |
|---|---|---|
| Dimensions | 4500 x 3200 x 2700 mm | 4500 x 3200 x 2700 mm |
| Weight | 3300 kg | 3300 kg |
Horizontal and vertical: Horizontal
Shaft Ø: 105 mm
Number of rolls: 3
Stroke X-Axis: 0 - 400 mm
Length: 4500 mm
Width: 3200 mm
Height: 2700 mm
Weight: 3300 kg
Equipped With
3 rolls driven Servo
Torq each roller 3500 nM
Electrically support rolls
Intelligent software :
Ellipse program
U Bend shapes
control of tangents
Auto section detector
Horizontal and vertical:Horizontal
Shaft Ø: 105mm
Number of rolls: 3
Stroke X-Axis: 0 - 400mm
Length: 4500mm
Width: 3200mm
Height: 2700mm
Weight: 3300kg
Bending profiles extrusion curved in 3 dimensions
Curved and twisted sections
Window profile bending
Automotive part forming
Aerospace part forming
