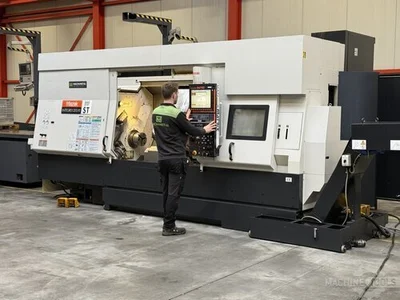

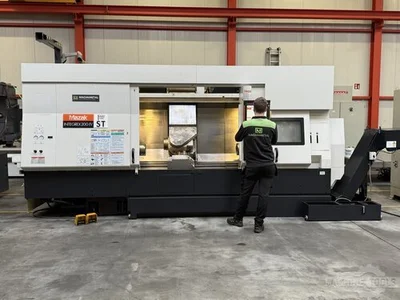

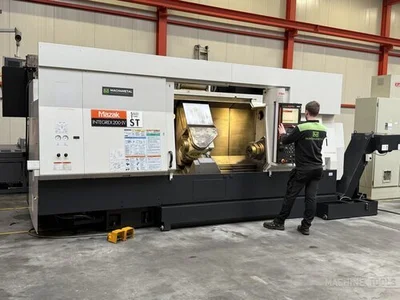

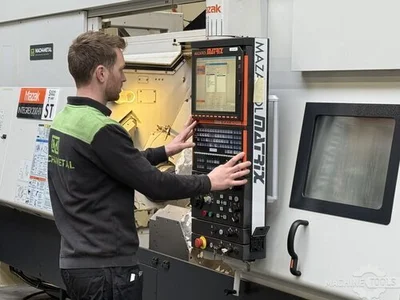

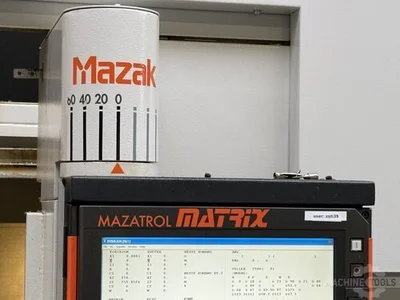

USED 2007 MAZAK INTEGREX 200-4ST
Overview
Description
Multi-Tasking Machining in a Single Machine Setup
Sub spindle for overtaking with full C-Axis
The INTEGREX IV series can finish all machining processes.
High speed, advanced milling spindle that can tilt up to 240 degrees swiveling.
Lower turret with rotary tool spindle so livew tooling
Chip conveyor with coolant and 15 Bar iKZ
Double chuck KNCS-N 210-53 SMW Autoblock
MAZAK Flex -GL150F Gantry Loader
Gripping range 200 x 120 length x 15 Kg
Specifications
| Swing | 660 mm | 25.984" |
|---|---|---|
| Machining Length | 1,545 mm | 60.827" |
| Power | 22 kW | 29.5 hp |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 660 mm | 25.984" |
| Dimensions | 5200 x 2550 x 2600 mm | 5200 x 2550 x 2600 mm |
| Weight | 14000 KG | 14000 KG |
Max. turning Ø: 660 mm
X-Axis: 580 mm
Y-Axis: 160 mm
Z-Axis: 1545 mm
B Axis: 270 °
Spindle bore: 65 mm
Speedrange: 5000 Rpm
Spindle power: 22 kW
Subspindle speeds: 5000 Rpm
Subspindle bore: 65 mm
Subspindle power: 18.5 kW
ATC / revolver: 40
B-Axis Toolsystem: Capto C6
B-Axis Speedranges: 12000 Rpm
Length: 5200 mm
Width: 2550 mm
Height: 2600 mm
Weight: 14000 kg
Equipped With
Multi-Tasking Machining in a Single Machine Setup
Sub spindle for overtaking with full C-Axis
The INTEGREX IV series can finish all machining processes.
High speed, advanced milling spindle that can tilt up to 240 degrees swiveling.
Lower turret with rotary tool spindle so livew tooling
Chip conveyor with coolant and 15 Bar iKZ
Double chuck KNCS-N 210-53 SMW Autoblock
Max. turning Ø: 660mm
X-Axis: 580mm
Y-Axis: 160mm
Z-Axis: 1545mm
B Axis: 270°
Spindle bore: 65mm
Speedrange: 5000Rpm
Spindle power: 22kW
Subspindle speeds:5000Rpm
Subspindle bore: 65mm
Subspindle power: 18.5kW
ATC / revolver: 40
B-Axis Toolsystem:Capto C6
B-Axis Speedranges:12000Rpm
Length: 5200mm
Width: 2550mm
Height: 2600mm
Weight: 14000kg
