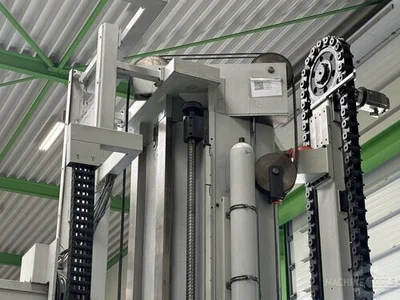

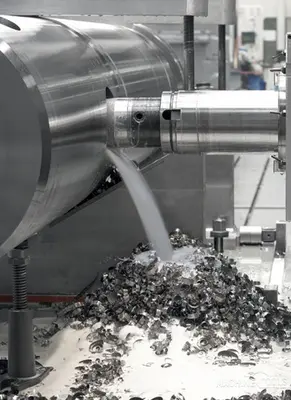

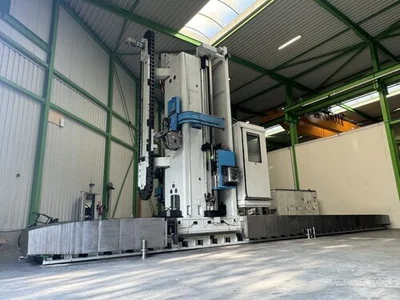

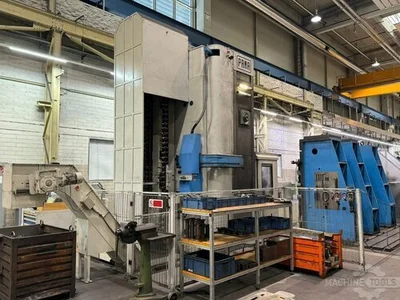

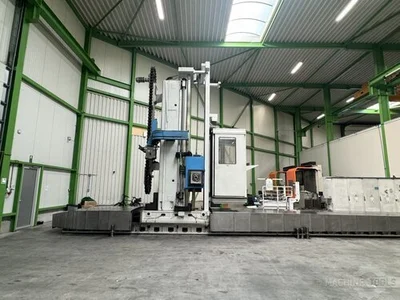

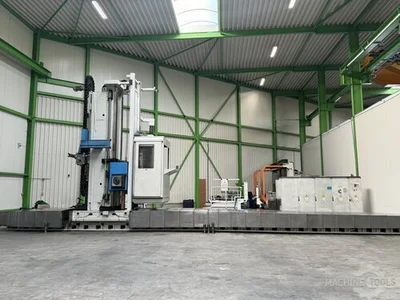

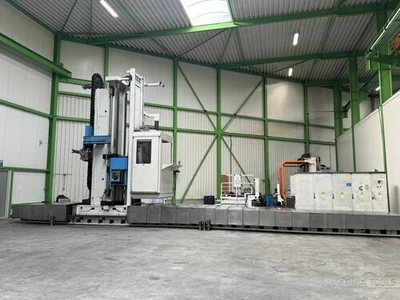

USED 2006 PAMA SPEEDRAM 1000
Overview

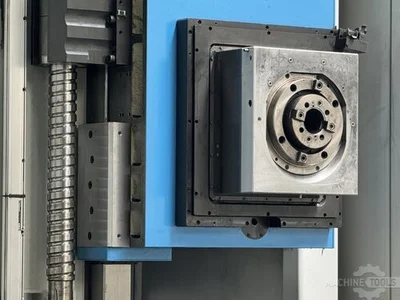

PAMA Automatic Head changer system
PAMA MG4 High Speed Head 8000 Rpm & 20 kW
PAMA CU130-90S Tool changer up to 1300 Kg tool weight
Chip conveyor 235 mm and 1200 mm output height

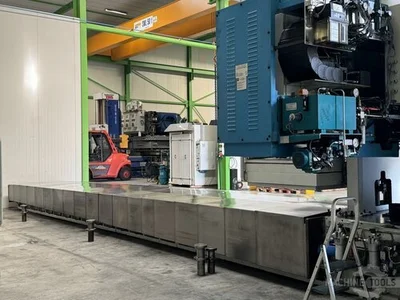

Double Floorplate field 4000 x 2500 + 4000 x 2500 mm
Torq on spindle 1525 Nm
Floor type boring and milling machine , cast iron column grey casting, hydrostic guideways, geometric compensation

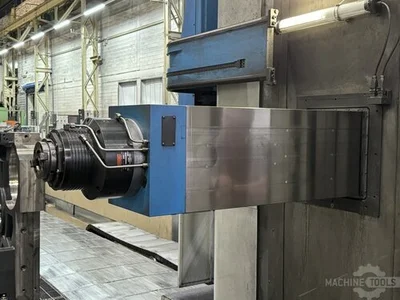

RAM Type 360 x 400 mm with spindle Ø150 mm
Specs
X - Travel: 13000 mm
Y - Travel: 3500 mm
Z - Travel: 1000 mm
W - Travel: 700 mm
Speeds / ranges: 6 - 3500 (8000) Rpm
Power: 37 kW
Ram size: 360 x 400 mm
Spindle Taper: 50 ISO/Bt/Mk
Feed rate X-Axis: 30000 mm/min.
Feed rate Y-Axis: 20000 mm/min.
Feed rate Z-Axis: 30000 mm/min.
Feed rate W-Axis: 30000 mm/min.
ATC Toolchanger: 90
Control: 840D
Number of controlled axis: 4
Length: 21000 mm
Width: 7000 mm
Height: 5100 mm
Weight: 80000 kg
Equipped With
The Pama Speedram 1000 is a versatile and powerful floor-type boring and milling machine, designed for heavy industrial applications. This machine offers advanced features and specifications that meet the highest standards of precision and efficiency.
PAMA Automatic Head changer system
PAMA MG4 High Speed Head 8000 Rpm & 20 kW
PAMA CU130-90S Tool changer up to 1300 Kg tool weight
Chip conveyor 235 mm and 1200 mm output height
Double Floorplate field 4000 x 2500 + 4000 x 2500 mm
Torq on spindle 1525 Nm

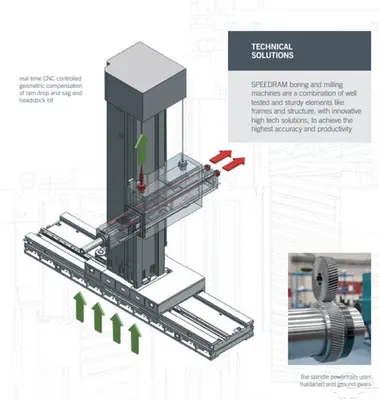

Floor type boring and milling machine , cast iron column grey casting, hydrostic guideways, geometric compensation
RAM Type 360 x 400 mm with spindle Ø150 mm
Please note no coolant system dry opperated.
X - Travel: 13000mm
Y - Travel: 3500mm
Z - Travel: 1000mm
W - Travel: 700mm
Speeds / ranges: 6 - 3500 (8000)Rpm
Power: 37kW
Ram size: 360 x 400mm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 30000mm/min.
Feed rate Y-Axis: 20000mm/min.
Feed rate Z-Axis: 30000mm/min.
Feed rate W-Axis: 30000mm/min.
ATC Toolchanger: 90
Control: 840D
Number of controlled axis:4
Length: 21000mm
Width: 7000mm
Height: 5100mm
Weight: 80000kg
