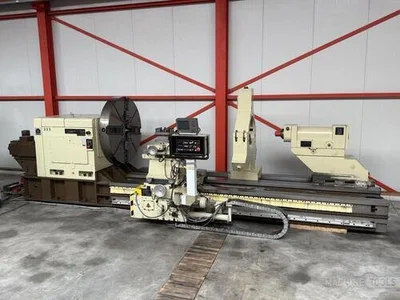

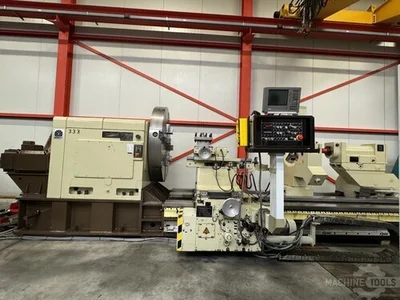

USED 1992 ZERBST DP1 S3 X 3700
Overview
Description

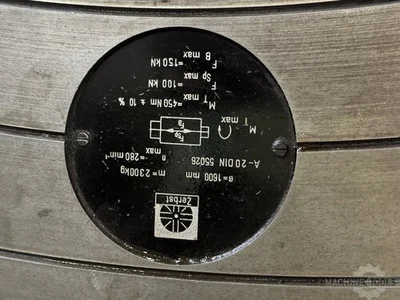

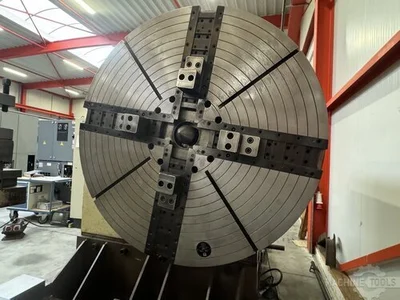

4 chuck 1600 mm

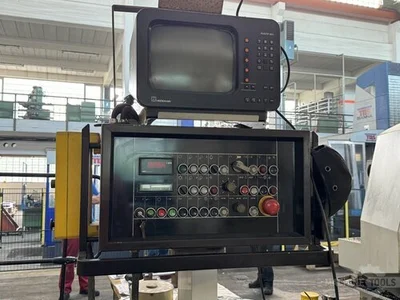

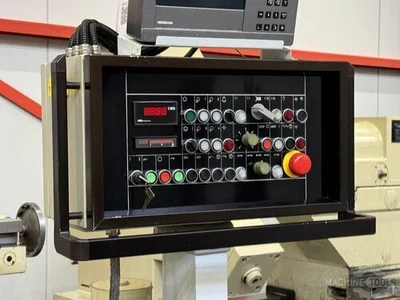

Heidenhain digital read out
Steady rest 710 mm

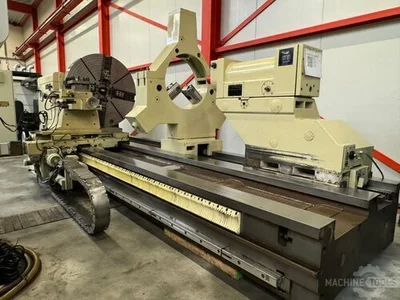

Powered tailstock
Threath cutting
Triple guide ways cast irion bed design
For turbine rotors, electrical motor anchors , reactor vessels, cylinders, rope pullys, marine propulsion shaft, castings, shafts and cement industry
Specifications
| Power | 55 kW | 73.8 hp |
|---|---|---|
| RPM | 450 RPM | 450 RPM |
| Dimensions | 8500 x 3400 x 2060 mm | 8500 x 3400 x 2060 mm |
| Weight | 27400 kg | 27400 kg |
DBC Turning Length: 3700 mm
Swing over bed Ø: 2000 mm
Swing over cross slide Ø: 1600 mm
Spindle bore: 100 mm
Spindle power: 55 kW
Bed width: 1590 mm

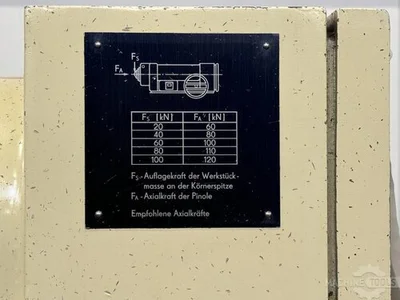

Tailstock spindle Ø: 220 Ø
Stroke pinole: 210 mm
Power: 55 kW
Speeds / ranges: 3,55 - 450 Rpm
Feed rate X-Axis: 5000 mm/min.
Feed rate Z-Axis: 5000 mm/min.
Workpiece load: 12500
Length: 8500 mm
Width: 3400 mm
Height: 2060 mm
Weight: 27400 kg
Equipped With
4 chuck 1600 mm
Heidenhain digital read out
Steady rest 710 mm
Powered tailstock
Threath cutting
Triple guide ways cast irion bed design
For turbine rotors, electrical motor anchors , reactor vessels, cylinders, rope pullys, marine propulsion shaft, castings, shafts and cement industry
DBC Turning Length: 3700mm
Swing over bed Ø: 2000mm
Swing over cross slide Ø:1600mm
Spindle bore: 100mm
Spindle power: 55kW
Bed width: 1590mm
Tailstock spindle Ø: 220Ø
Stroke pinole: 210mm
Power: 55kW
Speeds / ranges: 3,55 - 450Rpm
Feed rate X-Axis: 5000mm/min.
Feed rate Z-Axis: 5000mm/min.
Workpiece load: 12500
Length: 8500mm
Width: 3400mm
Height: 2060mm
Weight: 27400kg
