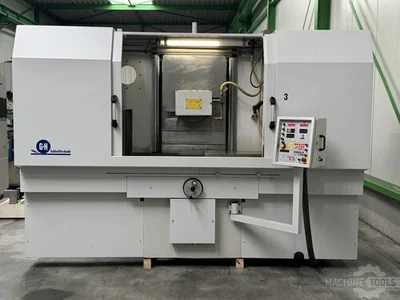

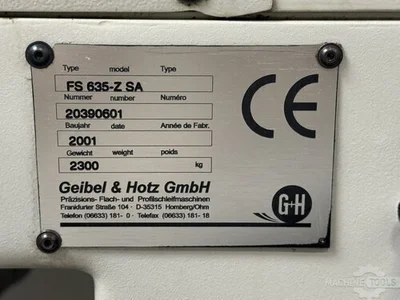

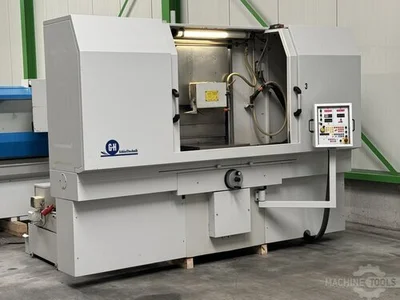

USED 2001 GEIBEL & HOTZ FS 635-Z SA
Overview
Description

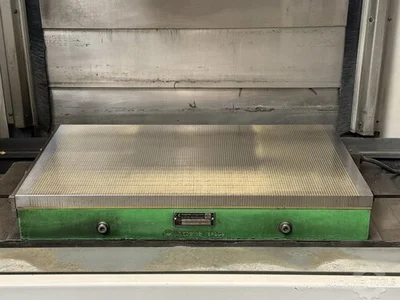

Magnetic table 600 x 350 mm
Closed housing for CE
Senkrechtautomatik SA
Automatic lubrication

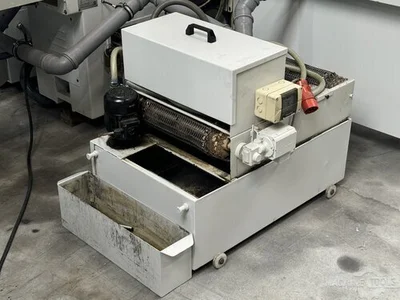

Coolant tank
Specifications
| Table-W | 350 mm | 13.78" |
|---|---|---|
| Table-L | 600 mm | 23.622" |
| Power | 3.7 kW | 5 hp |
| Grinding Wheel Width | 50 mm | 1.9685" |
| Grinding Wheel Dia. | 300 mm | 11.811" |
X - Travel: 650 mm
Y - Travel: 525 mm
Z - Travel: 350 mm
Table Length: 600 mm
Table Width: 350 mm
Table load: 400
Feed rate X-Axis: 35000 mm/min.
Feed rate Z-Axis: 1000 mm/min.
Grinding stone dimensions: 300 x 50 x 76,2 mm
Power: 3,7 kW
Speeds: 2800 ? Rpm
Length: 3200 mm
Width: 2000 mm
Height: 2870 mm
Weight: 2300 kg
Equipped With
Magnetic table 600 x 350 mm
Closed housing for CE
Senkrechtautomatik SA
Automatic lubrication
Coolant tank
X - Travel: 650mm
Y - Travel: 525mm
Z - Travel: 350mm
Table Length: 600mm
Table Width: 350mm
Table load: 400
Feed rate X-Axis: 35000mm/min.
Feed rate Z-Axis: 1000mm/min.
Grinding stone dimensions:300 x 50 x 76,2mm
Power: 3,7kW
Speeds: 2800 ?Rpm
Length: 3200mm
Width: 2000mm
Height: 2870mm
Weight: 2300kg
