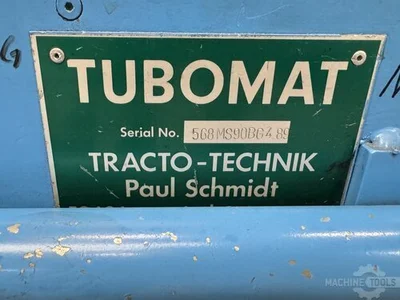

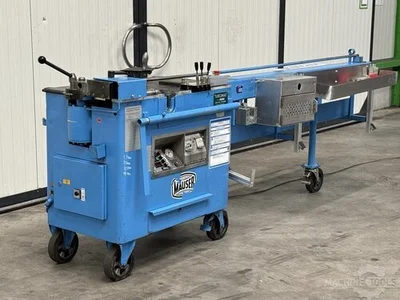

USED 1989 TUBOMAT 642
Overview
Description

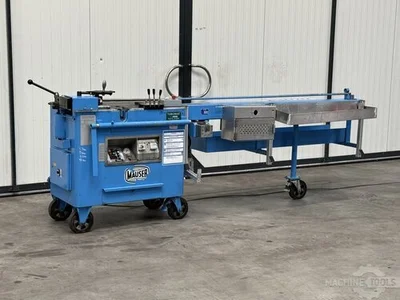

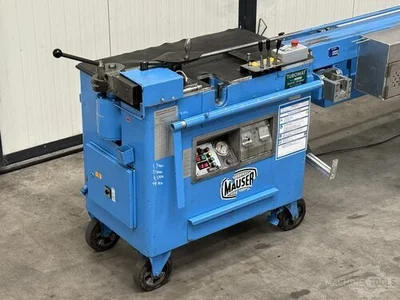

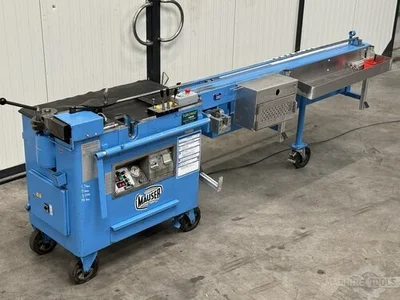

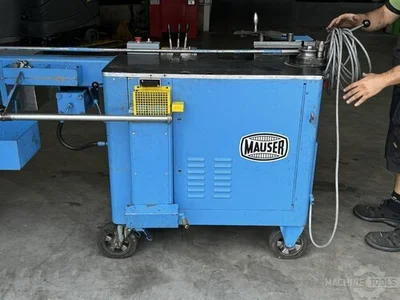

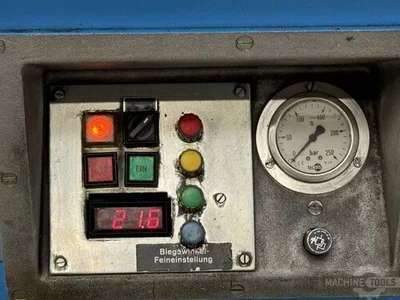

Pipe bending machine with electric control, 4-fold bending angle pre-selection and digital display
Hydraulicbendingdriveoperatedbyhandlevervalve
Hydraulic bending drive, operated by hand lever valve
Follower-type pressure die (sliding guide)
Hydraulic mandrel retraction
Pipe circular saw with coolant lubrication and automatic feed

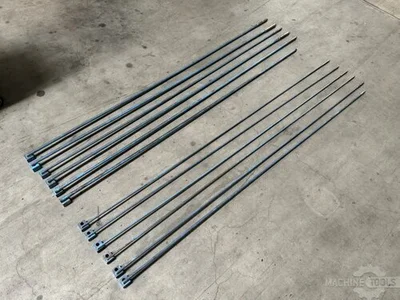

6 Mandrels up to 24 mm included x 3000 mm

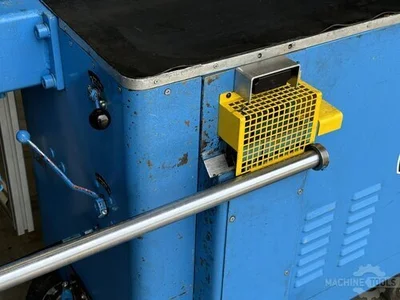

Pipe deburring unit for internal and external deburring
Hydraulic power unit as basic seating for attaching a cutting ring assembly or flaring device
Machine mobile and flexible to use
Specifications
| Capacity | 42 mm | 1.6535" |
|---|---|---|
| Horz/Vert | Horz | Horz |
Max.Tube Ø: 42 mm
Min. Tube Ø: 6 mm
Max. Wall thickness: 3 mm
Max. Bending radius: 5 mm
Min. Bending radius: 180 mm
Max. bending length: 3000 mm
Deburring attachment: Yes
Sawing attachment: Yes
Flair attachment: Yes
Length: 3500 mm
Width: 1000 mm
Height: 1200 mm
Weight: 1000 kg
Equipped With
Pipe bending machine with electric control, 4-fold bending angle pre-selection and digital display
Hydraulicbendingdriveoperatedbyhandlevervalve
Hydraulic bending drive, operated by hand lever valve
Follower-type pressure die (sliding guide)
Hydraulic mandrel retraction
Pipe circular saw with coolant lubrication and automatic feed
6 Mandrels up to 24 mm included x 3000 mm
Pipe deburring unit for internal and external deburring
Hydraulic power unit as basic seating for attaching a cutting ring assembly or flaring device
Machine mobile and flexible to use
Max.Tube Ø: 42mm
Min. Tube Ø: 6mm
Max. Wall thickness:3mm
Max. Bending radius:5mm
Min. Bending radius:180mm
Max. bending length:3000mm
Deburring attachment:Yes
Sawing attachment: Yes
Flair attachment: Yes
Length: 3500mm
Width: 1000mm
Height: 1200mm
Weight: 1000kg
