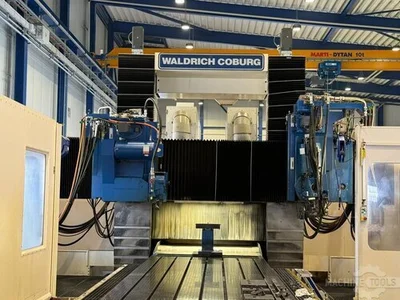

USED 2012 WALDRICH COBURG 30-10 S 3640

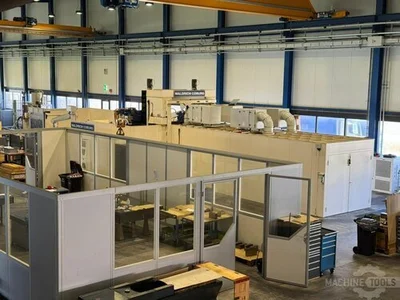

Guideway / Slide way / Surface Grinding Machine

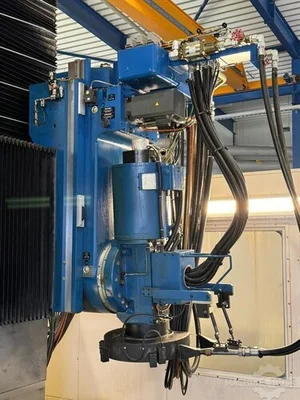

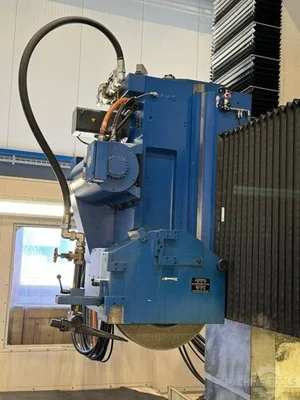

Universal grinding head S10 with 110 Degree tilting / 2500 Rpm / 7.5 kW

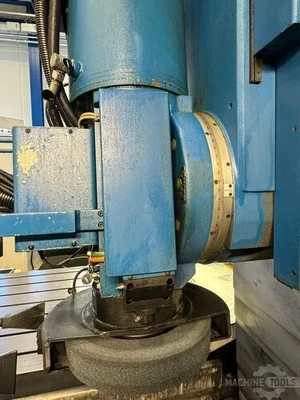

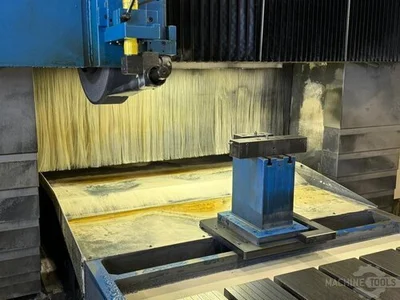

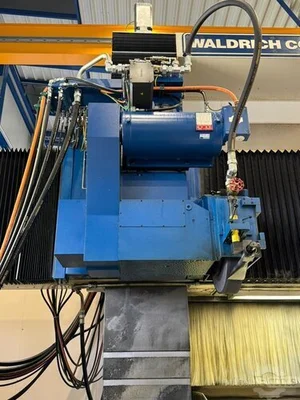

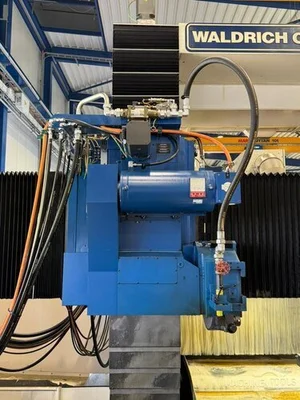

Vertical grinding head S30 with Ø 600 x 150 / 930 Rpm / 22 kW

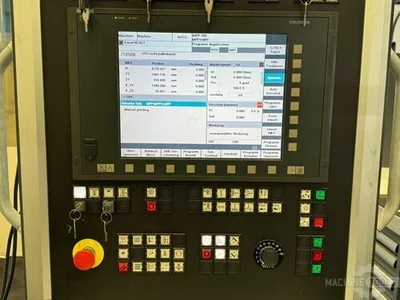

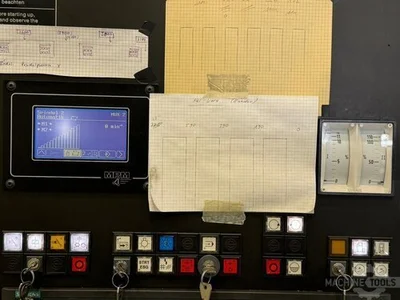

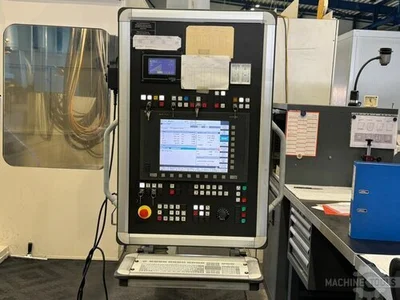

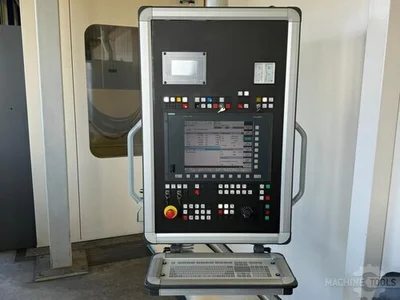

Double SIEMENS 840D Controll panel Left & Right side machine

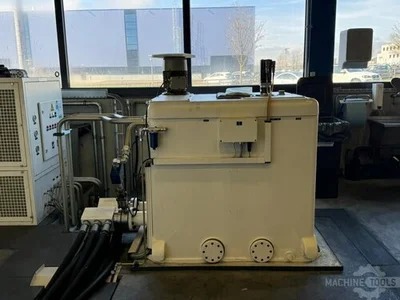

KNOLL HL650/4000 Filtration system new 2023
Automatic doors (4x) for easy machine / load / clamping acces
Hydraulic table drive with 18000 Kg Work load
Rebuild in 2012 for 1.5 Mil EUR
Large package flanches and stones
Large package spare parts / ballscrews / measuring / protection covers

X - Travel: 8825 mm
Y - Travel: 3010 mm
Z - Travel: 2500 mm

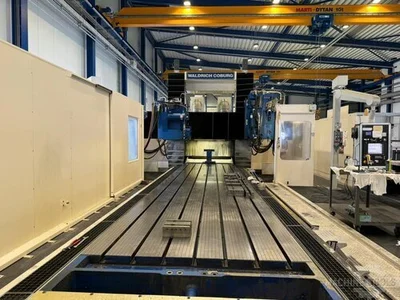

Table Length: 8000 mm
Table Width: 1800 mm
Table load: 18000
Feed rate X-Axis: 1 - 45.000 mm/min.
Feed rate Z-Axis: 100 - 3000 mm/min.
Grinding stone dimensions: 600 x 150 mm
Power: 22 kW
Speeds: 930 Rpm
Cooling system: Knoll 4000 L
Feed rate Y-Axis: 1 - 700 mm/min.
Length: 24360 mm
Width: 9550 mm
Height: 7000 mm
Weight: 80200 kg

Guideway / Slide way / Surface Grinding Machine
Universal grinding head S10 with 110 Degree tilting / 2500 Rpm / 7.5 kW
Vertical grinding head S30 with Ø 600 x 150 / 930 Rpm / 22 kW
Double SIEMENS 840D Controll panel Left & Right side machine
KNOLL HL650/4000 Filtration system new 2023
Automatic doors (4x) for easy machine / load / clamping acces
Hydraulic table drive with 18000 Kg Work load
Rebuild in 2012 for 1.5 Mil EUR
Large package flanches and stones
Large package spare parts / ballscrews / measuring / protection covers

X - Travel: 8825mm
Y - Travel: 3010mm
Z - Travel: 2500mm
Table Length: 8000mm
Table Width: 1800mm
Table load: 18000
Feed rate X-Axis: 1 - 45.000mm/min.
Feed rate Z-Axis: 100 - 3000mm/min.
Grinding stone dimensions:600 x 150mm
Power: 22kW
Speeds: 930Rpm
Coolant system: Knoll 4000 L
Feed rate Y-Axis: 1 - 700mm/min.
Length: 24360mm
Width: 9550mm
Height: 7000mm
Weight: 80200kg
