Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines
Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases
One sole operator can control the DUPLEX milling machines
Reduced space and investment requirement comparing with two single machines
Fast investment amortisation due to the high productivity
Duplex solution admits different configurations: single working area, pendulum working areas

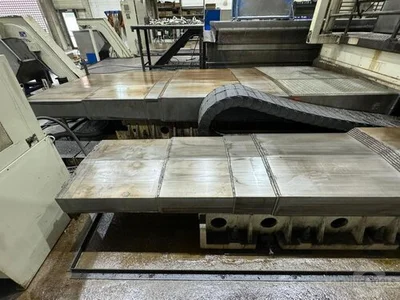

| Table-W | 3,300 mm | 129.92" |
| Table-L | 12,000 mm | 472.44" |
| # Axis | 3 | 3 |
| Travel-Long | 10,300 mm | 405.51" |
| Travel-Cross | 2,000 mm | 78.74" |
| Power | 30 kW | 40.2 hp |
| RPM | 3,000 RPM | 3,000 RPM |
| Taper | ISO 50 | ISO 50 |
X-Axis: 10300 mm
Y-Axis: 2000 mm
Z-Axis: 1800 mm
Table Length: 12000 mm
Table Width: 3300 mm
Table load: 100000
Power on spindle: 22/30 kW
Spindle speeds: 60 - 3000 Rpm
Spindle Taper: 50 ISO/Bt/Mk
Feed rate X-Axis: 10000 mm/min.
Feed rate Y-Axis: 10000 mm/min.
Feed rate Z-Axis: 10000 mm/min.

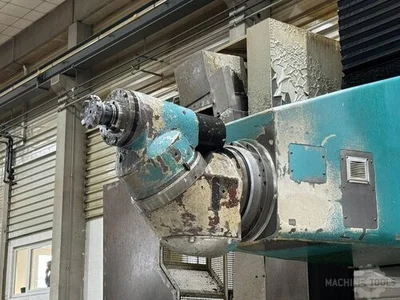

Millinghead auto-index: 2.5 x 2.5 °

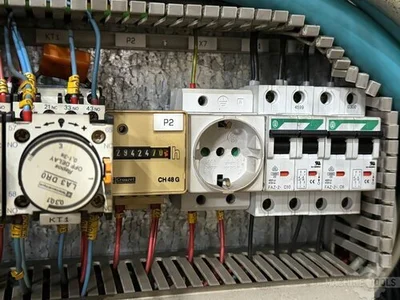

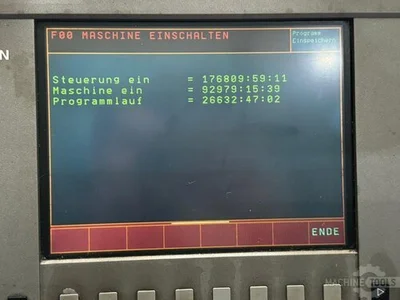

Working hours: 25000 H
Length: 21200 mm
Width: 10000 mm
Height: 4875 mm
Weight: 100000 kg

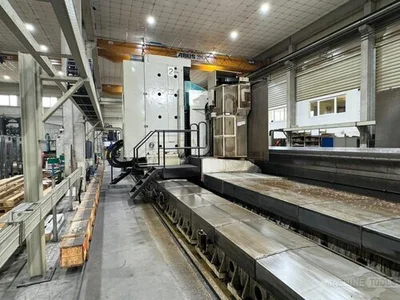

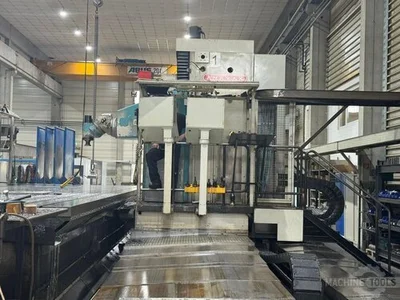

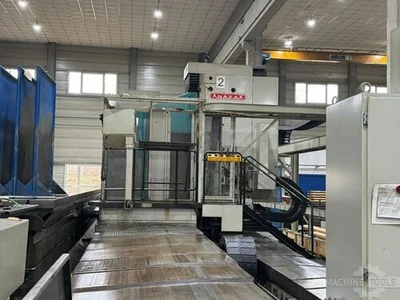

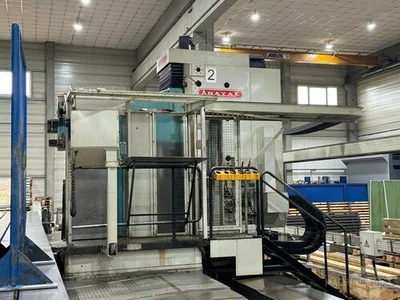

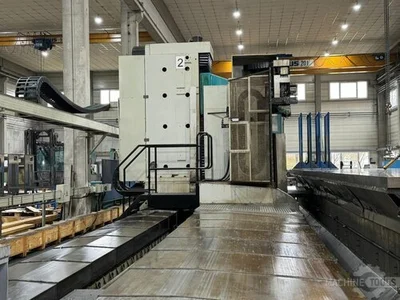

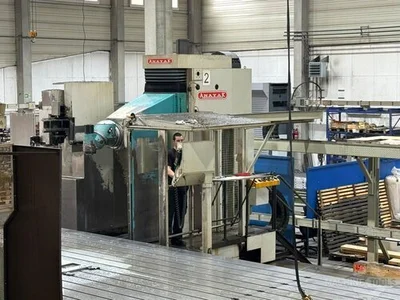

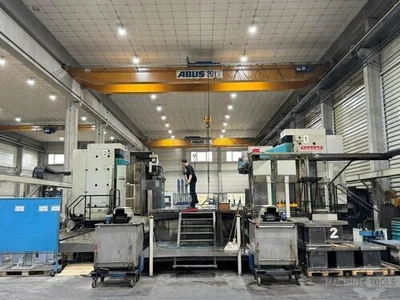

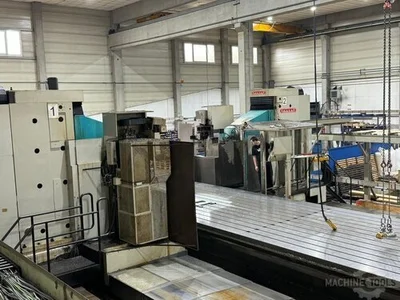

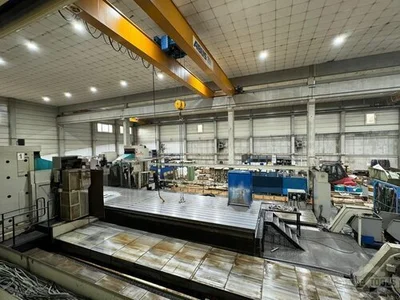

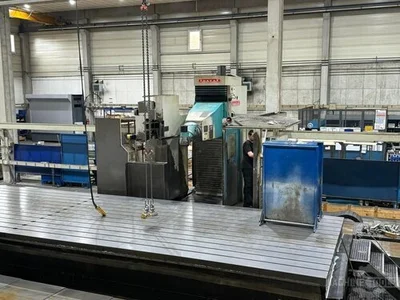

Duplex milling are two machines located one opposite the other which can work seperately or as single machine, workpiece can be machined with 2 simultaneous spindles.
Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines
Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases
One sole operator can control the DUPLEX milling machines
Reduced space and investment requirement comparing with two single machines
Fast investment amortisation due to the high productivity
Duplex solution admits different configurations: single working area, pendulum working areas
For machining excavator arms / boom like, CAT, Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Case, Bobcat, JCB, Kobelco, Liebherr, Kubota, Takeuchi, Volvo
X-Axis: 10300mm
Y-Axis: 2000mm
Z-Axis: 1800mm
Table Length: 12000mm
Table Width: 3300mm
Table load: 100000
Power on spindle: 22/30kW
Spindle speeds: 60 - 3000Rpm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 10000mm/min.
Feed rate Y-Axis: 10000mm/min.
Feed rate Z-Axis: 10000mm/min.
Millinghead auto-index:2.5 x 2.5°
Working hours: 25000H
Length: 21200mm
Width: 10000mm
Height: 4875mm
Weight: 100000kg
