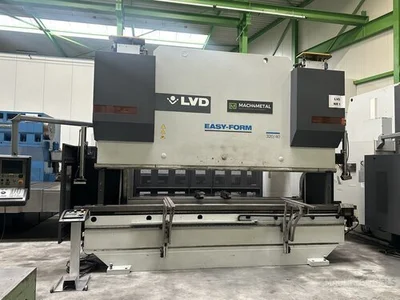

USED 2008 LVD PPEB EASY FORM 320 /40
Overview
CNC Crowning
Hydraulic tool clamping

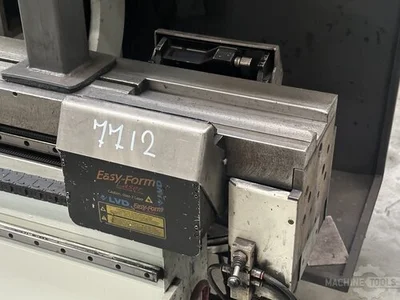

EFL Easy form laser measuring & correction system
Set Tooling
Laser guide protection
Controlled axis Y1/Y2/X/R/V-Axis
Specs
Max. bending length: 4000 mm
Distance between column: 3150 mm
Max. pressing force: 320 T
Dis. Beam - Table: 570 mm
Beam stroke: 300 mm
Table Width: 200 mm
Troth beam: 400 mm
Approch speed: 120 mm/min.
Working speed: 14 mm/min.
Return speed: 130 mm/min.
Adjustment X-Axis back gauge: 1000 mm
Control: CADMAN
Power: 42 kW
Length: 5800 mm
Width: 2300 mm
Height: 3800 mm
Weight: 23000 kg
Equipped With
CNC Crowning
Hydraulic tool clamping
EFL Easy form laser measuring & correction system
Set Tooling
Laser guide protection
Controlled axis Y1/Y2/X/R/V-Axis
Max. bending length: 4000mm
Distance between column: 3150mm
Max. pressing force: 320T
Dis. Beam - Table: 570mm
Beam stroke: 300mm
Table Width: 200mm
Troth beam: 400mm
Approch speed: 120mm/min.
Working speed: 14mm/min.
Return speed: 130mm/min.
Adjustment X-Axis back gauge:1000mm
Control: CADMAN
Power: 42kW
Length: 5800mm
Width: 2300mm
Height: 3800mm
Weight: 23000kg
www.mach4metal.com
