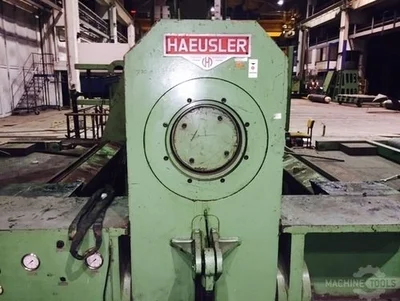

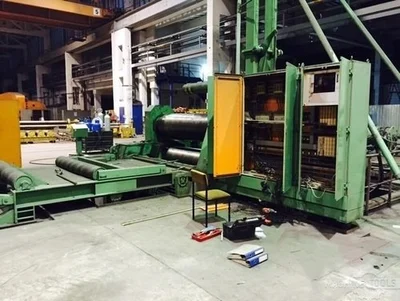

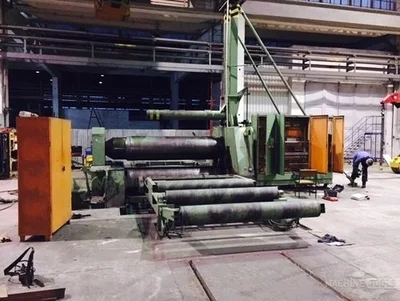

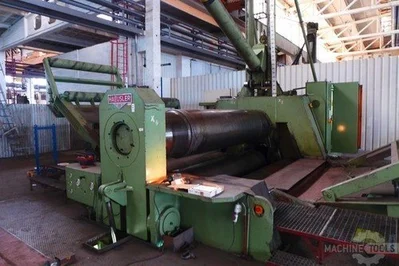

HAEUSLER 4 roller 3000 x 110 mm
- Make : HAEUSLER SWISS
- Typ : VRM HY
- Serial No : WO 1667
- Age : 1991 / 94
- Bending length : 3.000
- Ø 1500 Bending thickness : 110 mm
- Ø 1500 pre bending : 90 mm
- Top roll Ø : 780
- Lower roll Ø : 750
- Side roll Ø : 570
- Minimum bending Ø : 880
- Max. Distance top / lower : 220
- Working speed: 2 / 4 / 5 / 6 / 7.2 Rpm

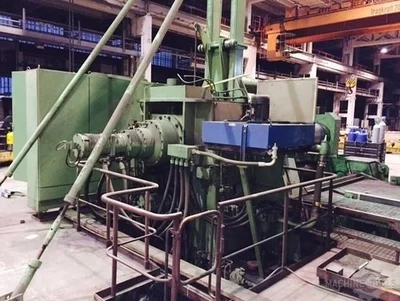

- 2 roll hydraulic drive 180 kW

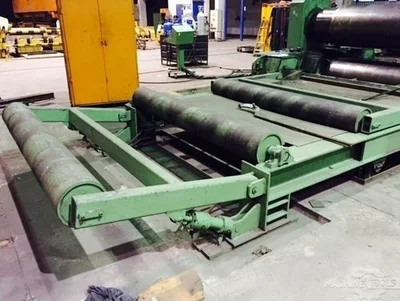

- Side support left Min. Ø 1200 x 10 Ton
- Side sup. Right Min. Ø 1200 x 10 Ton

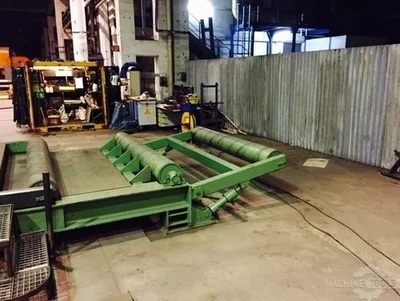

- Top support Max. Ø 4500 x 10 Ton

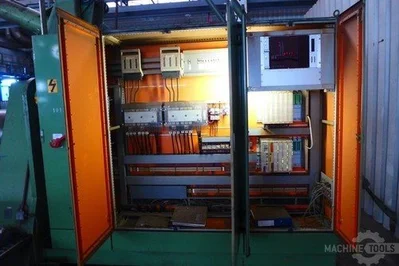

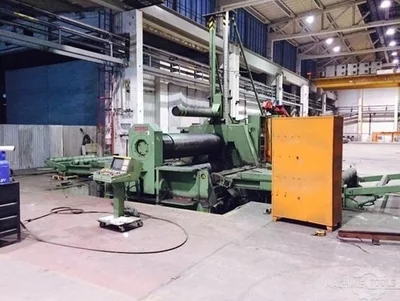

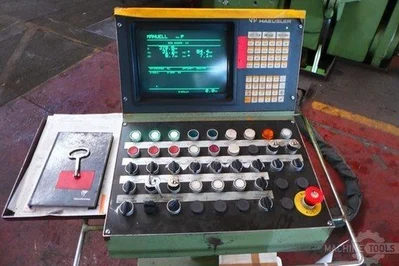

- CNC Controlled in 8 axis
- Conical bending over CN
| Length of Rolls | 3,000 mm | 9.84' |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH | DBL PINCH |
| Max Thickness | 110 mm | 4.3307" |
| # Rolls | 4 | 4 |
| Hyd/Mech | Hyd | Hyd |
| Power | 180 kW | 241.4 hp |
| Roll Diameter | 780 mm | 30.709" |
| Dimensions | 9000 X 5800 X 5800 | 9000 X 5800 X 5800 |
| Weight | 125000 | 125000 |
