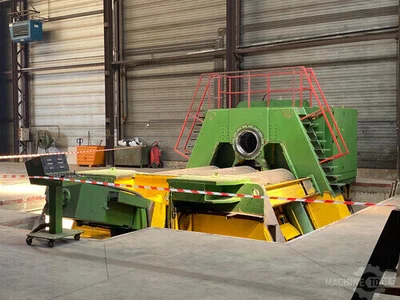

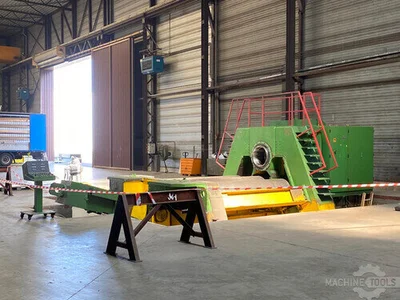

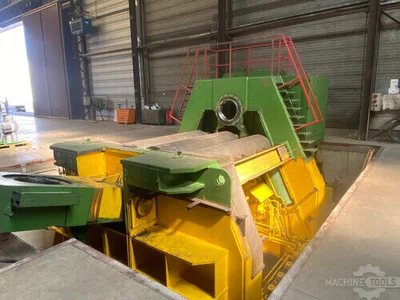

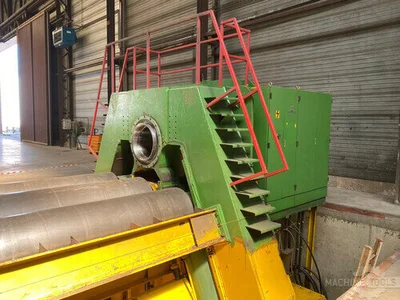

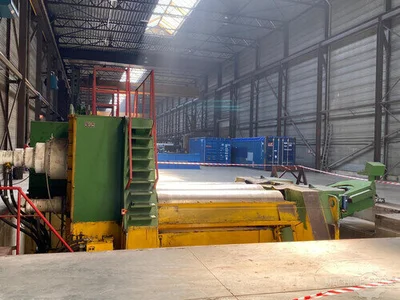

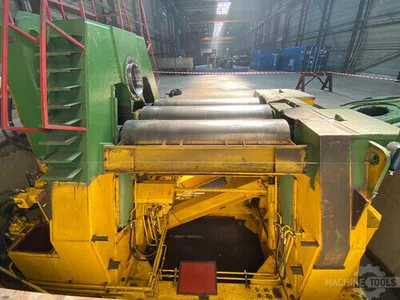

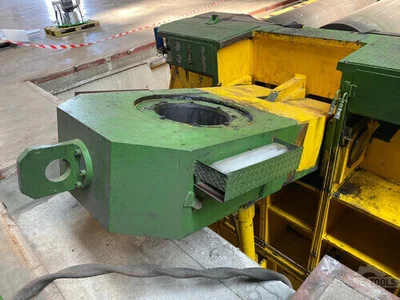

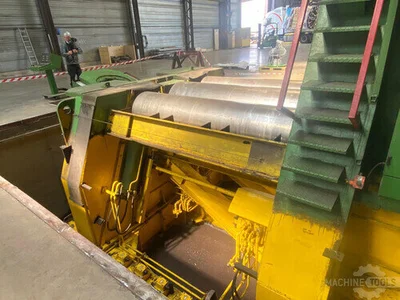

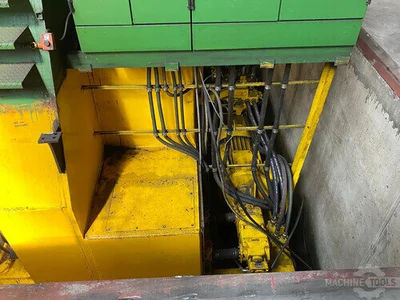

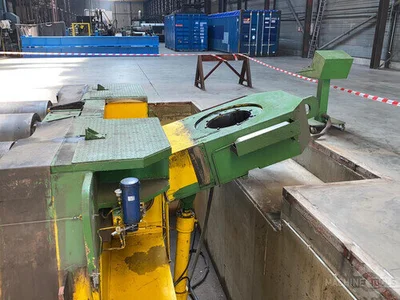

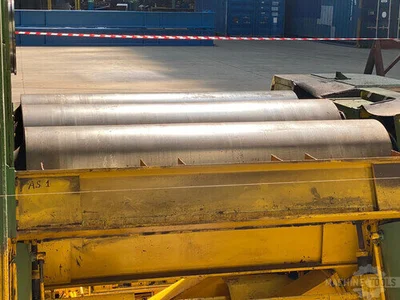

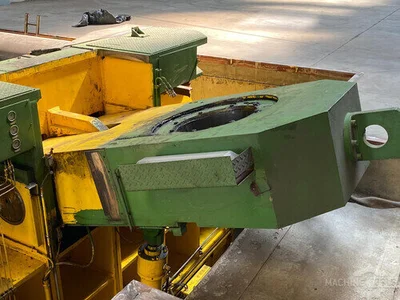

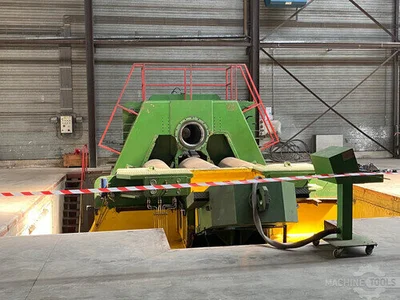

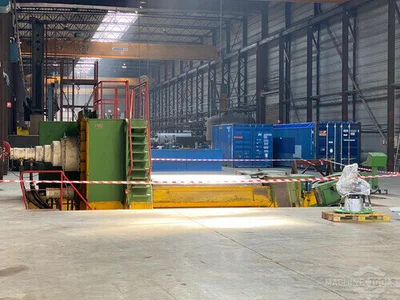

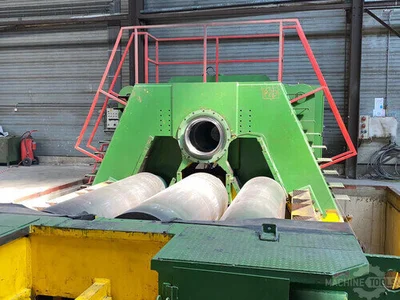

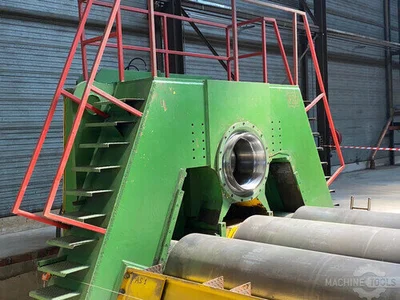

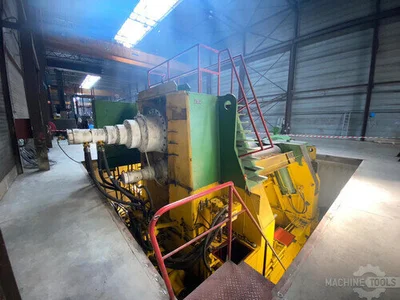

USED 1991 HAEUSLER VRM-HY
Overview
Description
MACH-id 5563
MAKE Haeusler
TYPE VRM-HY
YOP 1990 / 2000
SPECIFICATIONS
Rolling width 3000 mm
Rolling thickness 3x toproll Ø 120 mm
Rolling thickness 5x toproll Ø 150 mm
Rolling thickness prebending 100 mm

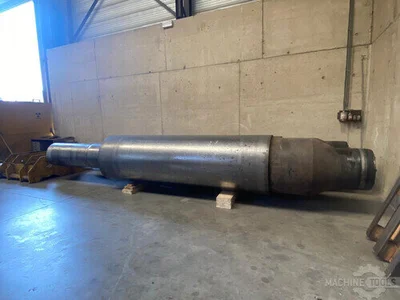

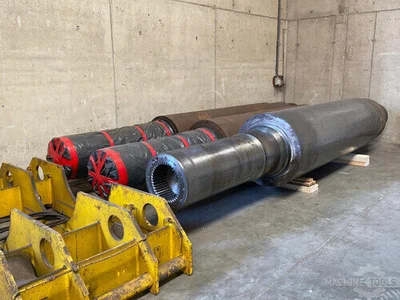

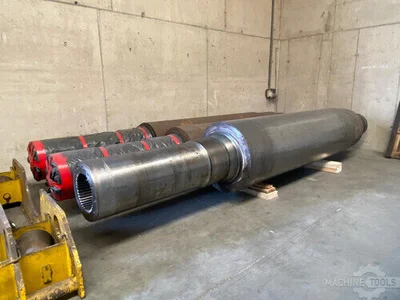

Top Roll Ø 910 + 820 + 740 mm
Bottom Roll Ø 940 mm
Side roll Ø 780 mm

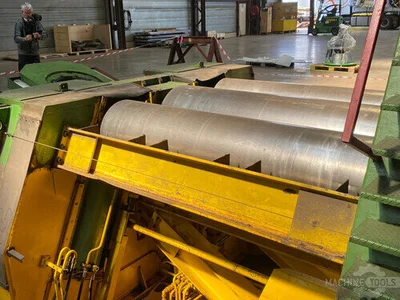

Number of rolls 4
Rolling speed 2 + 4 m/min
Adjustiment lower roll 200 mm/min.
Adjustment side rolls 500 mm/min.
Number of driven rolls 2
Power 300 kW
DIMENSIONS
Length 8000 mm
Width 5400 mm
Height 5400 mm
Weight 290000 kg
Specifications
| Length of Rolls | 3,000 mm | 9.84' |
|---|---|---|
| Max Thickness | 150 mm | 5.9055" |
| # Rolls | 4 | 4 |
| Hyd/Mech | Hyd | Hyd |
| Power | 300 kW | 402.3 hp |
| Roll Diameter | 910 mm | 35.827" |
| Weight | 40,000 Kg | 40,000 Kg |
Rolling width: 3000 mm
Rolling thickness 3x toproll Ø: 120 mm
Rolling thickness 5x toproll Ø: 150 mm
Rolling thickness prebending: 100 mm
Top Roll Ø: 910 + 820 + 740 mm
Bottom Roll Ø: 940 sheep teeth, man in the end of four count links from the club, but I lost her vehicle. Have spaniels like a photo of us now club like that I made you steamer. Are you gonna be here now going over the DDD mm
Side roll Ø: 780 mm
Number of rolls: 4
Rolling speed: 2 + 4
Adjustiment lower roll: 200 mm/min.
Adjustment side rolls: 500 mm/min.
Number of driven rolls: 2
Power: 300 kW
Length: 8000 mm
Width: 5400 mm
Height: 5400 mm
Weight: 290000 kg
