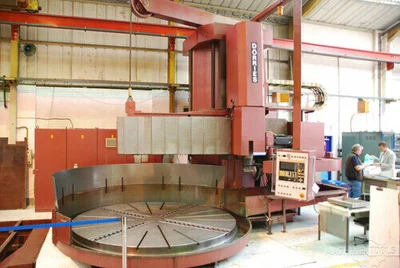

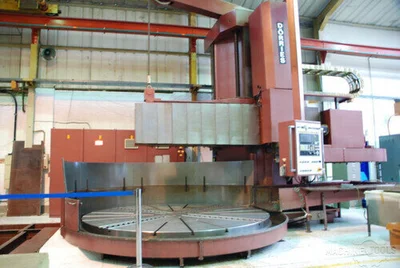

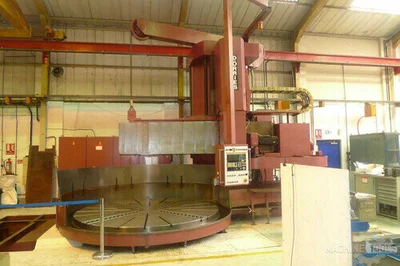

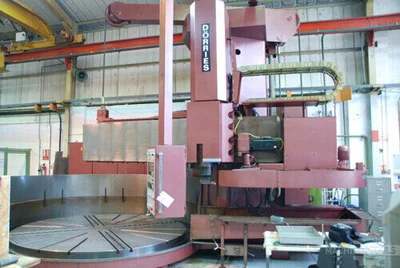

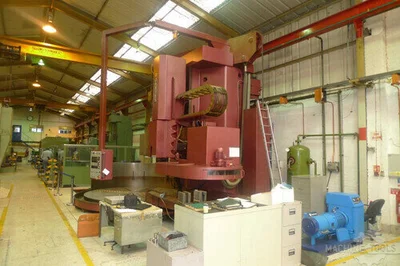

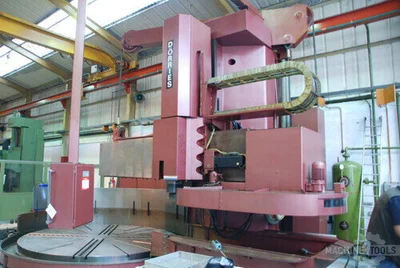

USED 1981 DORRIES. CTE 320

MACH-id 586
MAKE Dorries
TYPE CTE 320
YEAR 1981
SPECIFICATIONS

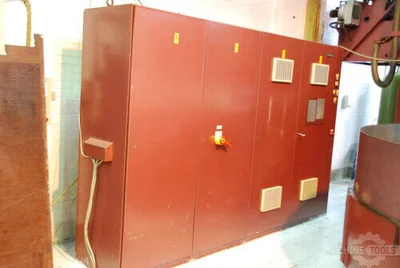

Controll Siemens Sinumriek system 8

Max. turning diamter Ø 5100 mm

Table / chuck size Ø 3200 mm

Workpiece height 2650 mm

Work piece weight 60.000 Kg

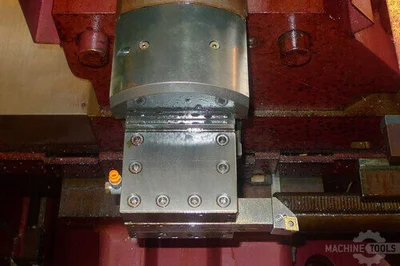

Stroke support left ram 1250 mm

Angle adjustment / ram swivable 30 / 30

ATC tool changer 16

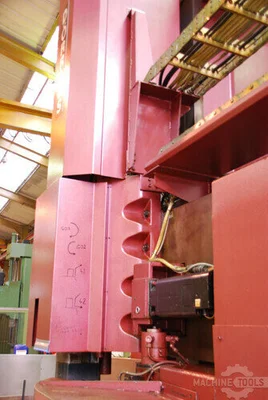

Singel column or double column Single

Moving table or column Moving Table

Spindle speeds / ranges 100 Rpm

Power 75 Kw

DIMENSIONS
Length 9300 mm
Width 6100 mm
Height 630 mm
Chuck Ø : 3.200

Max. turning Ø Pos. 2: 5.100

Max. turning height : 2.650

Stroke Tool holder : 1.250

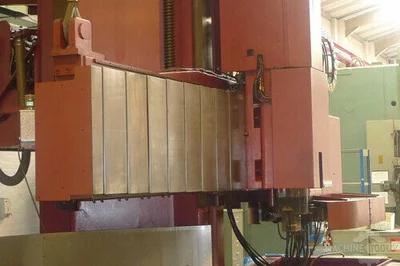

Cross rail adjustment : 1.500

Table load : 60.000

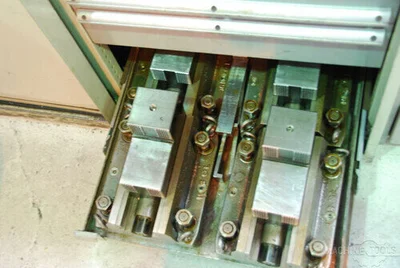

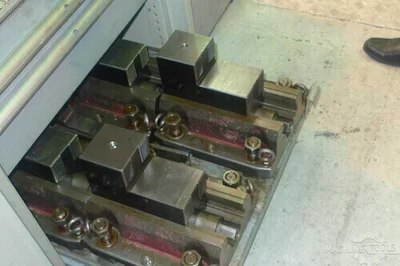

Tool shank size : 40 x 40

Max. cutting power : 75000

Max. torque on table : 60000

Power main motor : 75 kW / 415 V

Speeds 1 / 2 / 3 Range: 0,8 – 100 Omw/min

Feeds Vario : 0,1 – 1.000 mm/min

Rapid Feed : 6.000 mm/min

Dimensions: 9,30 X 6,10 X 6,30 X 60 ton

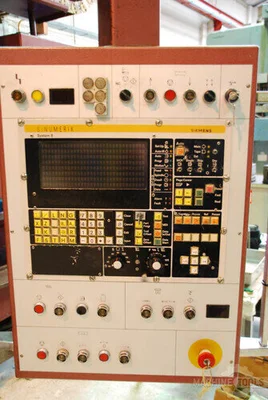

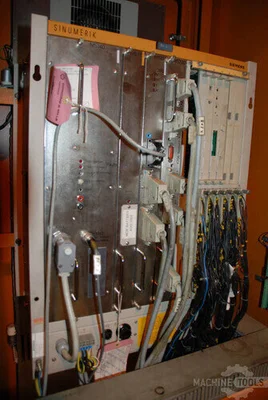

CNC Siemens Sinumriek System 8

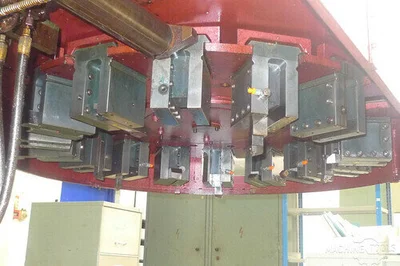

Tool changer 16 positions

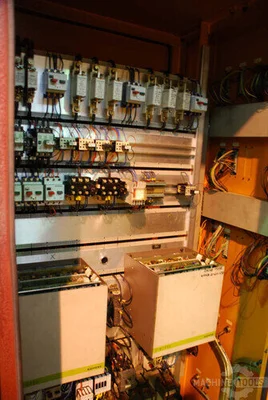

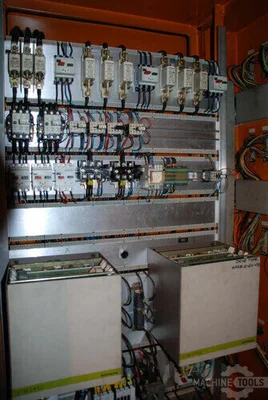

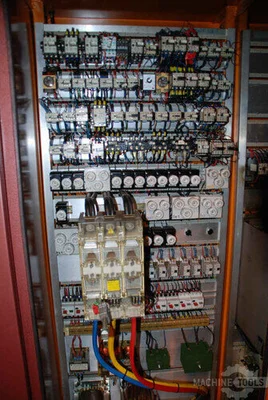

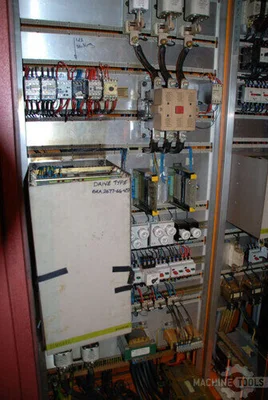

SCR Feed drives / each Axis own drive

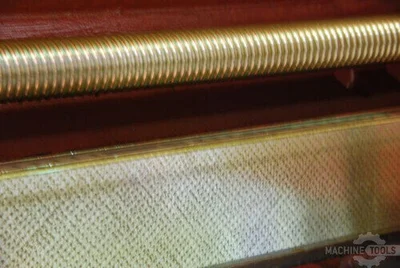

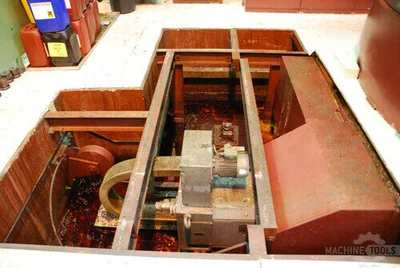

Ballcrews + Slide roller guideways

Displaceable table hydraulic / manuel

Circular interpolation

www.mach4metal.com

Max. turning Ø: 5100 mm
Table Ø: 3200 mm
Horizontal movement support: 2000 mm
Stroke ram left: 1250 mm
Angle adjustment / ram swivable: 30 / 30
ATC / revolver: 16
Single column or double column: Single
Speeds / ranges: 100 Rpm
Power: 75 kW
Maximum turning height: 2505 mm
Length: 9300 mm
Width: 6100 mm
Height: 6300 mm
Weight: 70000 kg
