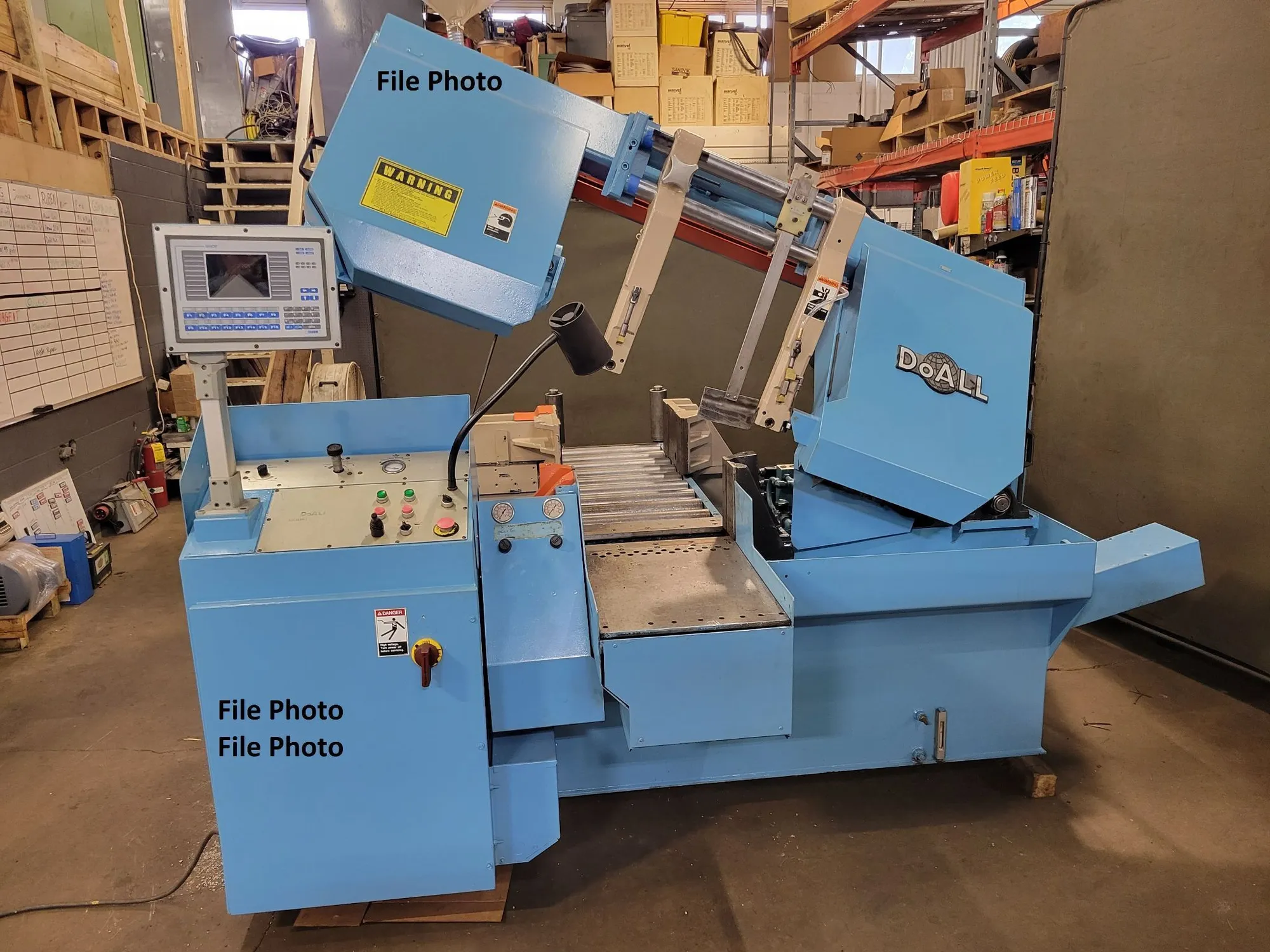

USED 2004 DOALL C-4100NC

Doal HEAVY DUTY 16" Capacity programmable Horizontal Bandsaw, With Variable vise pressure, Programmable blade speed, checked out and ready to run, like Amada, Behringer, HEM, Hyd-Mech, Kasto

Doall Fully automatic 16" Bandsaw with programmable control, 1.5" Blade, Hyd. blade tension, Like Marvel, Amada, HEM, Hyd-Mech

Doall Heavy Duty Workhorse model C-4100NC horizontal Fully automatic, programmable Bandsaw.
Extra Heavy design, 1 1/2" Blade, 7.5 H.P. Variable speed blade drive with programmable speeds,
Myers Technology Company Proprietary

machine is completely checked out by our technicians, Recalibrated to factory specs, Cleaned and cycled

There are many more items checked and repaired

EQUIPPED WITH:

Programmable NC Control, Hydraulic Blade tension, Vises, variable vise pressure, rapid head approach, AC variable speed blade drive that is programmable, Chip conveyor and all available manuals, New Blade

SPECIFICATIONS:

RECT-CAP (H) 14"
RECT-CAP (W) 16"
ROUNDS-CAP 16"
SQUARE-CAP 14"
POWER 10 hp
TYPE (AUTO, MANUAL, SEMI) Semi
BLADE WIDTH 1.5"
BLADE THICKNESS 0.05"
BLADE LENGTH 183"
CONTROL CNC (Doall NC)
DIMENSIONS 90" x 96" x 65" high
WEIGHT 6,800 lbs.
Specification : Round Work Capacity 16" - Square Work Capacity 14" x 16"
Max Blade Size 1.5" x 186"
Blade Wheel Diameter 21"
Blade Speeds Variable 40 - 360 FPM
Stock Feed Shuttle Travel 24" Single Stroke / 999" Multiple Index Number of Shuttle Indexes
Drive Motor 10 HP
Coolant Capacity 20 Gallons
24" Stroking Stock Shuttle Vise Front Hydraulic Vise
Hydraulic Band Tensioning with Controls
12" Long Parts Drop Table
Chip Conveyor
Coolant System
Work Light
Electrics:460 Volt, 3 Phase, @00 volt available for extra charge
Approximate Machine Wt. 7,200LBS

Variable vise pressure, Doall NC controller, Coolant system with wash down hose, powered blade brush, Hydraulic chip conveyor, Programmable variable speed blade drive, Split front vise, and discharge tray
