USED 1991 ROCKLAND 19-4
Overview
Rockland 19" x 80" Gap Bed Lathe, 27" in Gap, 4" H.I.S., 12" 3-Jaw Chuck, In/Met Threading, 22 1,500 RPM, 7.5 Hp, Aloris & 4-way Tool Posts, Steady & (2) Follow Rests, Taper Attachment, DRO, Tail Stock, Threading Dial, Coolant, Micrometer Bed Stop, New 1991.
Specs

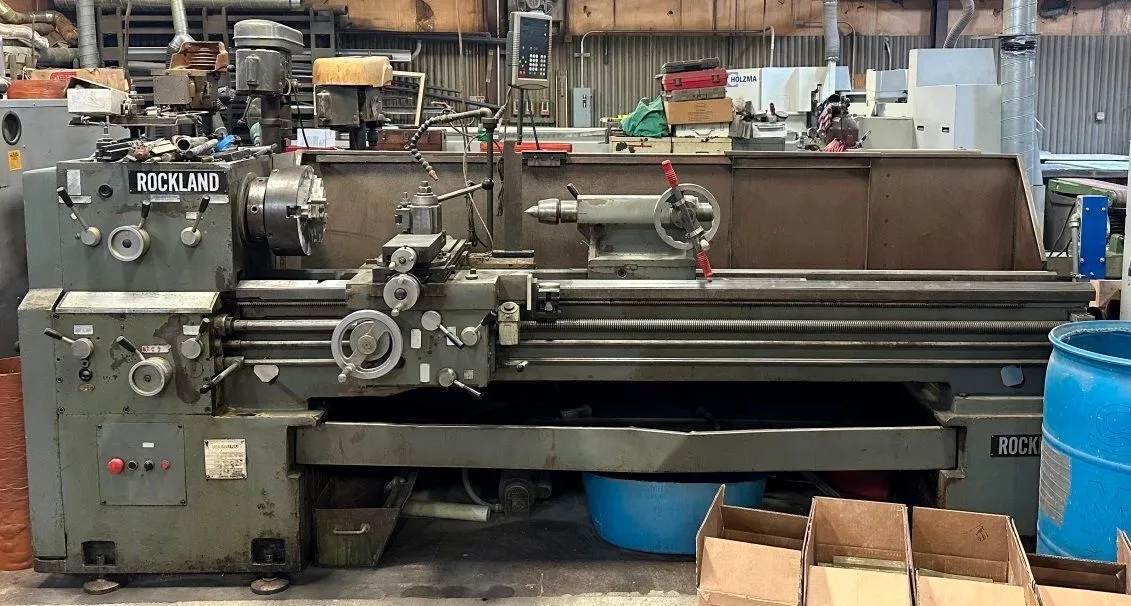

1-(used) Rockland 19" x 80" Gap Bed Lathe, New 1991.
SPECIFICATIONS:
Swing over bed,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,.. 19"
Swing over cross slide.................... 10-3/4"
Swing in gap.................................. 27"
Distance between centers...................... 80"
Spindle nose (camlock)...................... D-1-8
Hole through spindle....................... 4-1/8"
Spindle speeds (12)................ 22 – 1,500 rpm
Longitudinal feeds (56)........ 0.0009 - 0.112 ipr
Cross feeds (56)............... 0.0004 - 0.056 ipr
English threads (56)................. 3/4 - 92 tpi
Metric threads (35)..................... 0.25 - 23
Cross slide travel........................ 13-3/4"
Compound slide travel...................... 8-1/2"
Tail stock quill travel........................ 6"
Tailstock quill taper....................... #5 MT
Main Motor............................... 7-1/2 Hp
Dimensions (approx.).......... 144"L x 46"D x 60"H
Weight (approx.)........................ 6,800 lb.
Equipped With

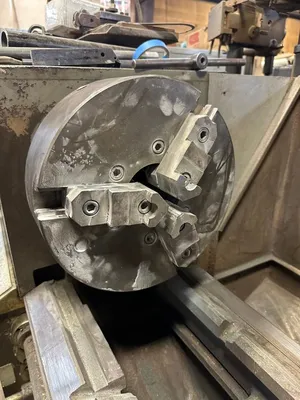

12" 3-Jaw chuck

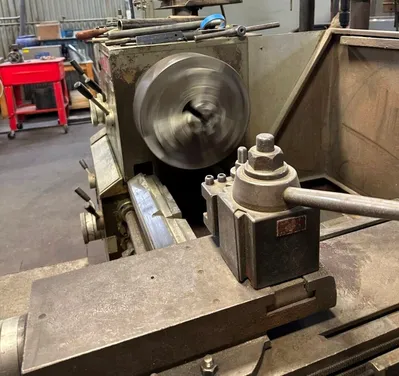

Aloris tool post
4-Way tool post

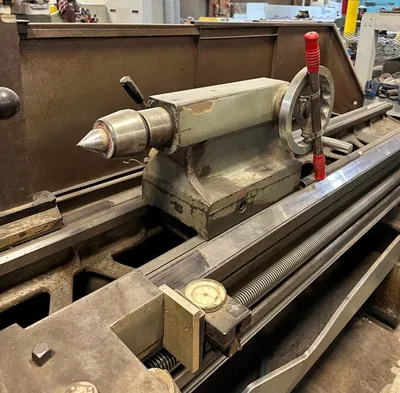

Tail stock
Steady rest
(2) Follow rests

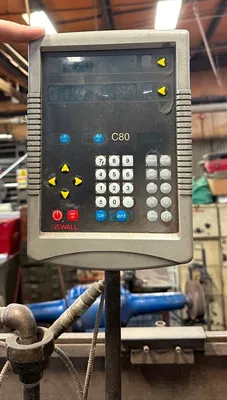

DRO
Taper attachment
Threading dial
Longitudinal Trav-A-Dial
Micrometer bed stop
Coolant system
Chip pan
