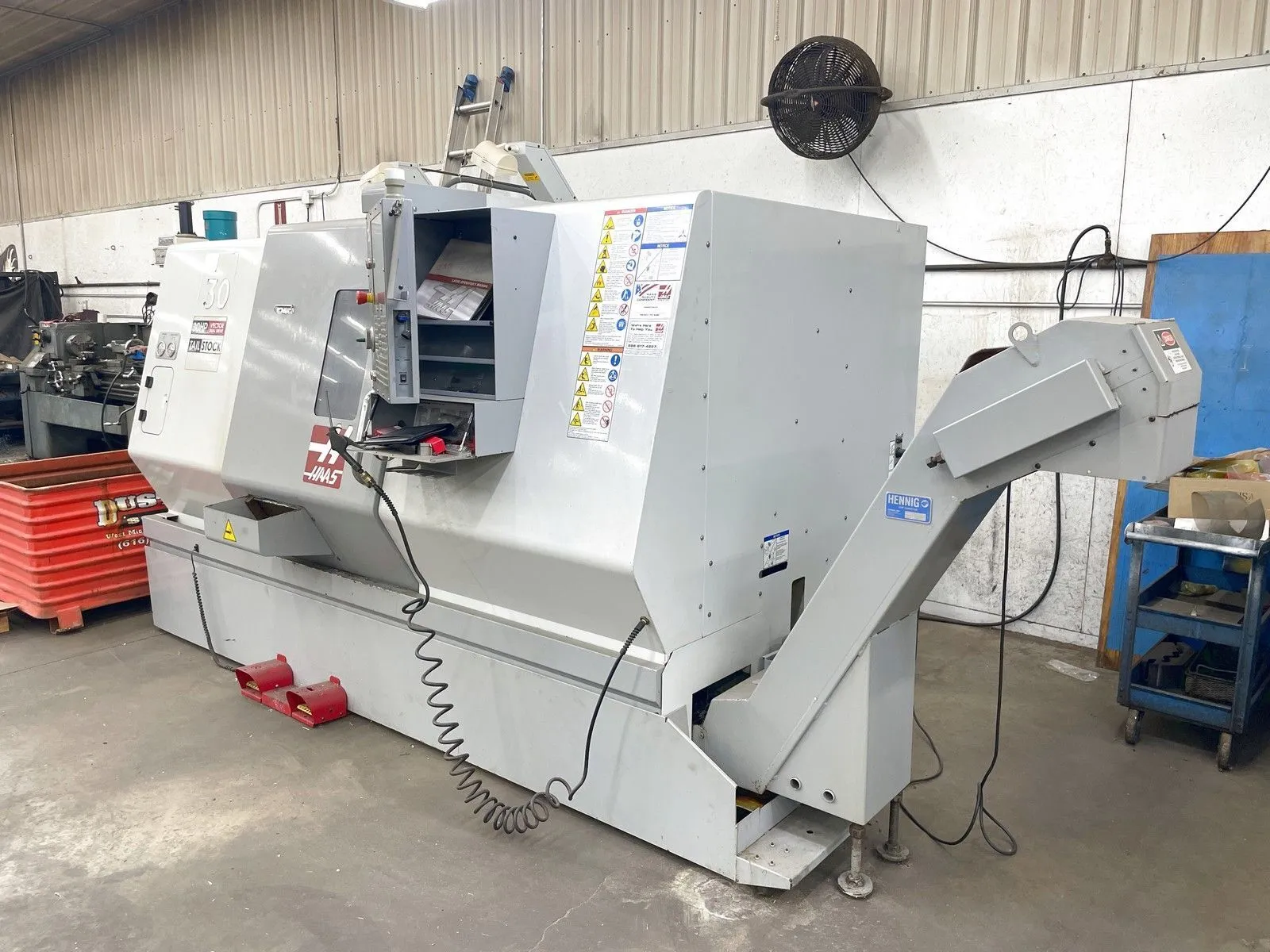

2009 Haas SL-30 CNC Turning Center with Tailstock, Tool Presetter, Chip Conveyor, Parts Catcher, Standard Coolant Tank. In Plant and Under Power.
| Swing | 30" | 762 mm |
| Machining Length | 34" | 863.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 17" | 431.8 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 180" x 80" x 85" | 180" x 80" x 85" |
| Weight | 16000lbs | 16000lbs |
3400rpm Max. Spindle Speed
3" Bar Capacity
A2-6 Spindle Nose
30HP Spindle Motor
30" Max. Swing
34" Max. Turning Length
14.5" Max. Turning Dia.
12 Station Turret
16000lb Machine Weight
180" x 80" x 85" Machine Dim's.
Chip Conveyor
Tailstock
Tool Presetter
Parts Catcher
10" 3-Jaw Chuck
Standard Coolant Tank
