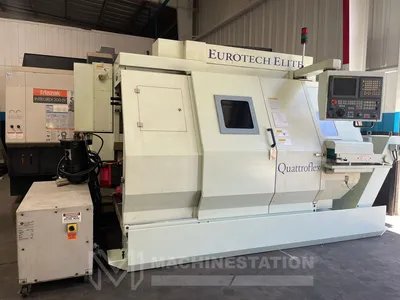

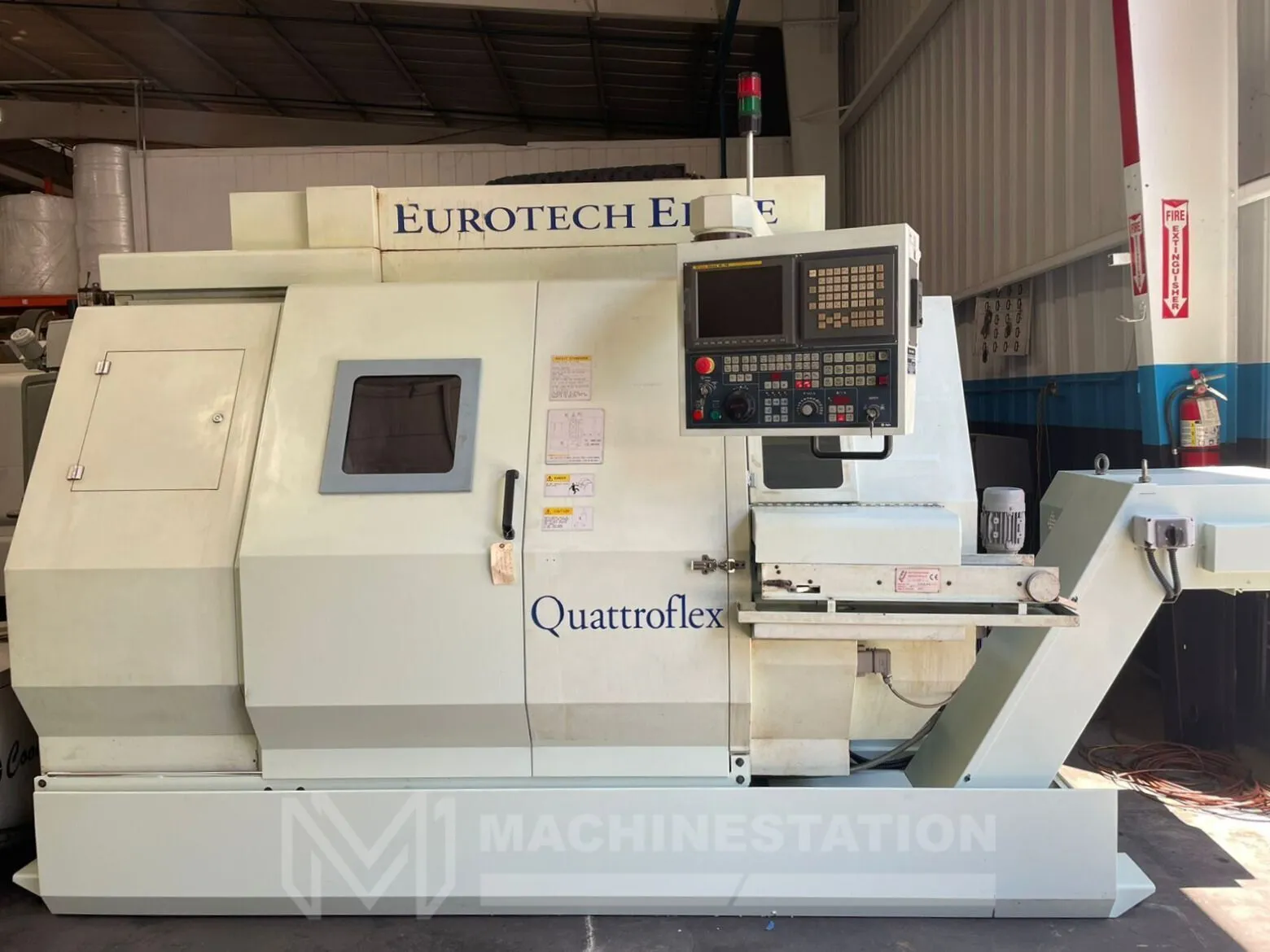

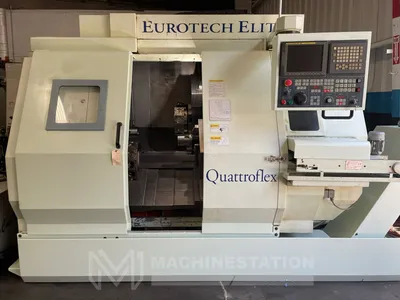

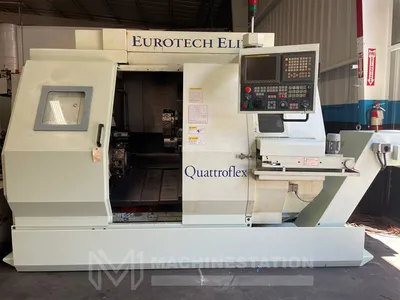

USED 2005 EUROTECH ELITE QUATTROFLEX 420SLLY

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

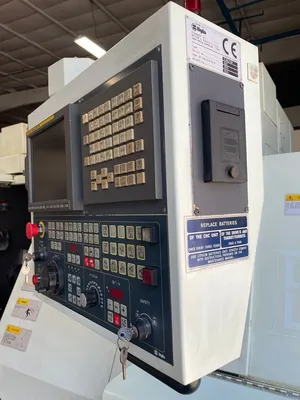

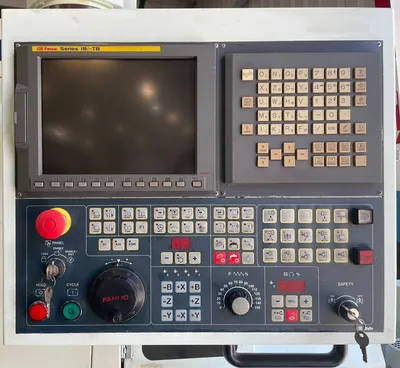

Fanuc 18i-TB CNC Control

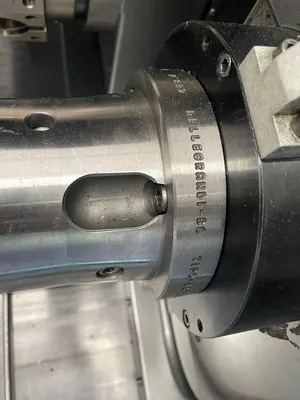

Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Both Spindle Synchronization

Capacity:
Max Machining Diameter : 9.44″
Max Turning Length : 12.60″
Max Swing Over Bed : 20.47″
Max Bar Capacity : 1.77″

Travels:
X1 Axis Travel Upper Turret: 6.30″
X2 Axis Travel Lower Turret : 6.30″
Y1 Axis Travel Upper Turret: 3.93″
Z1 Axis Travel Upper Turret: 15.35″
Z2 Axis Travel Lower Turret : 9.45″
B Axis Travel: 16.53″ ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle

Feedrate:
X1 Axis: 787 IPM Rapid Traverse
X2 Axis: 472 IPM Rapid Traverse
Y1 Axis: 236 IPM Rapid Traverse
Z1 Axis: 945 IPM Rapid Traverse
Z2 Axis: 787 IPM Rapid Traverse
B Axis: 1181 IPM Rapid Traverse

Main Spindle:
Main Spindle Nose: A2-5
Main Spindle Bore: 2.16″
Main Spindle Speed: 5,000 RPM
Main Spindle Power: 20 HP

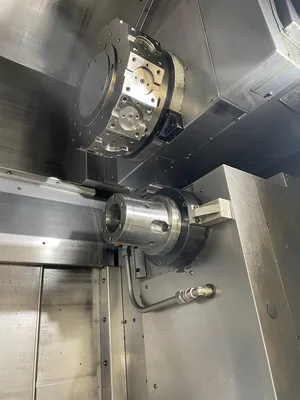

Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.16″
Sub Spindle Speed: 5,000 RPM
Sub Spindle Power: 15 HP

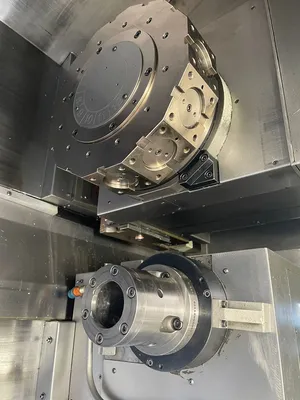

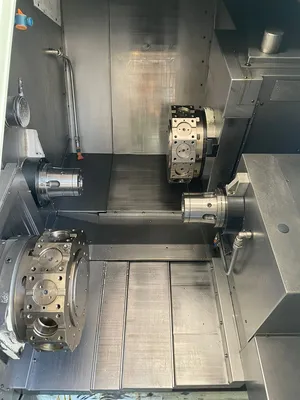

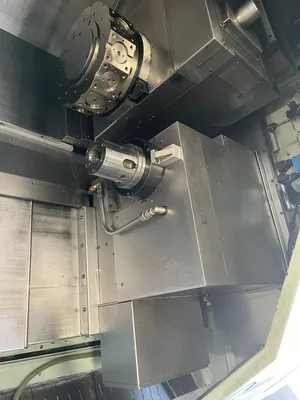

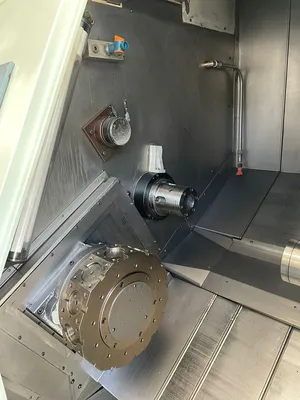

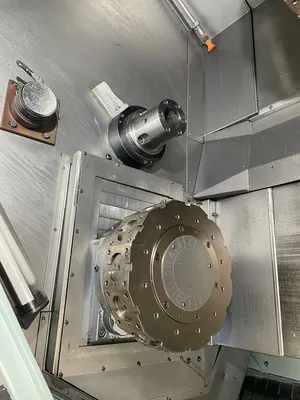

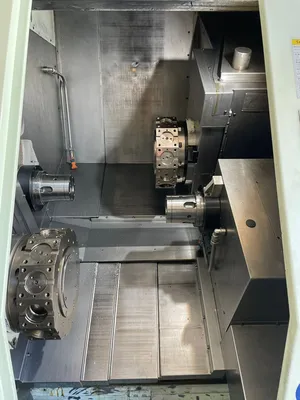

Turret:

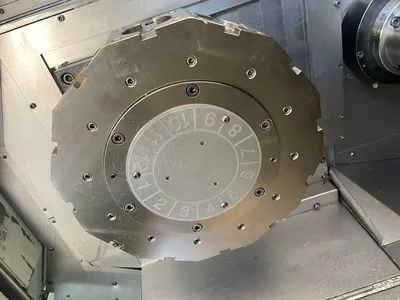

Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 12 Stations
Live Milling Speed: 4000 RPM
Live Milling Motor: 5.5 HP
Turret Index Time (Tool to Tool): 0.15 sec
Turret Type: BMT

General:

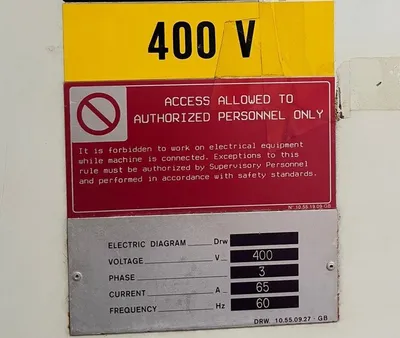

Power Source: AC 400v / 3-Phase / 60 Hz
Machine Dimensions: 164″ x 83″ x 87″ Height (With Chip Conveyor)
Machine Weight: 15,000 lbs Approx. (With Chip Conveyor)
Machine Weight: 13,670 lbs Approx. (Without Chip Conveyor)

Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
12 Station Live Tool Upper Turret
12 Station Live Tool Lower Turret
Y Axis Capability on Upper Turret
Bar Feeder Interface
Parts Conveyor

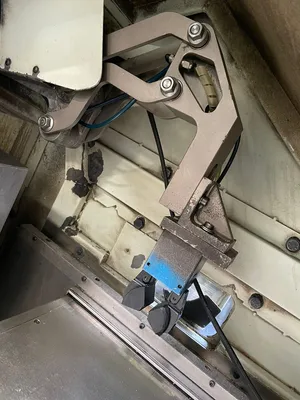

Parts Catcher

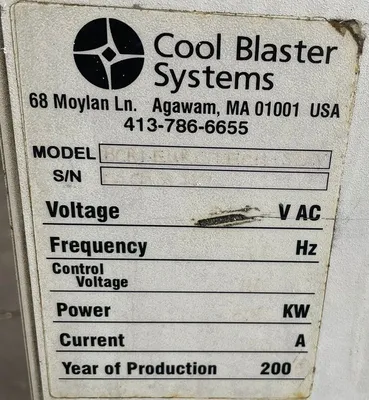

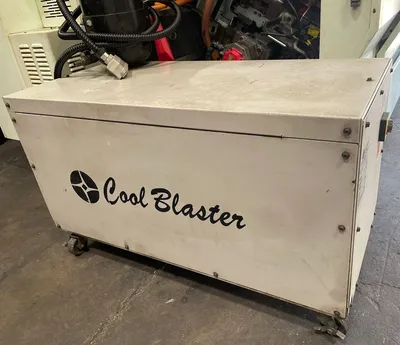

Cool Blaster System
High Pressure Coolant System
Chip Conveyor
