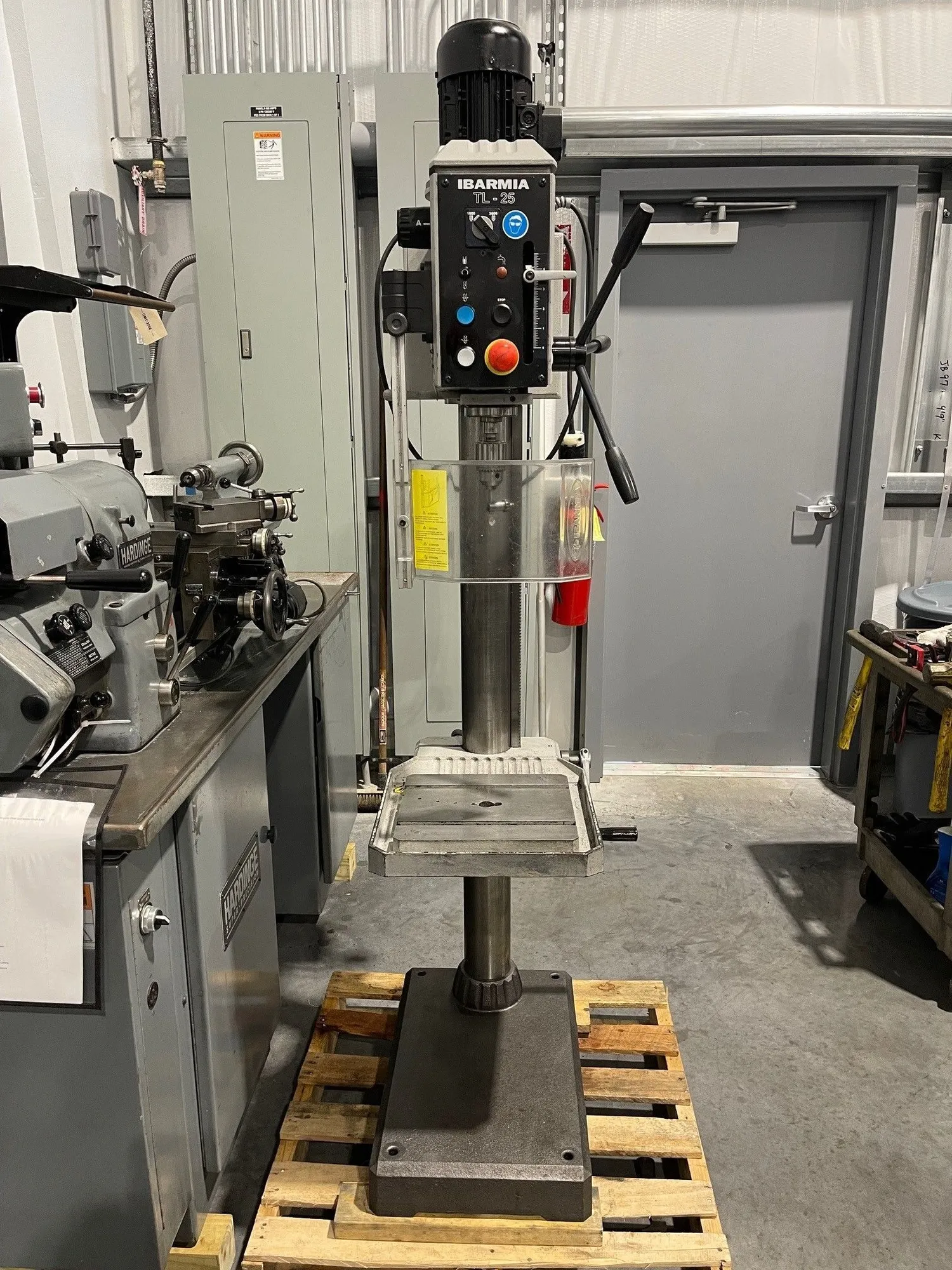

IBARMIA TL-25 Geared Head Pedestal Drill 2006’
| Dimensions | 32” x 24” x 85” H | 32” x 24” x 85” H |
| Weight | 650 Lbs. | 650 Lbs. |
IBARMIA TL-25 Geared Head Pedestal Drill 2006’
Reference #7060
Model # TL-25
Serial # 065044
Capacity- 19.7”
Work table- 10.6” x 11.8”
Base- 22” x 15”
Drilling capacity in steel- 1”
Drilling capacity- 1.18”
Tapping capacity in steel- .71”
Tapping capacity in cast iron- .087”
Spindle taper- #3 Morse
Quill diameter- 2.44”
Spindle travel- 4.72”
Spindle speeds- (8) 90 – 3,360 R.P.M.
Jacobs drill chuck
Saftey shield
Machine is wired for 460 volt / 3 phase / 60 H.Z.
Machine weight- 650 Lbs.
Machine dimensions- 32” x 24” x 85” H
Machine location- F.O.B. Sarasota, Florida
