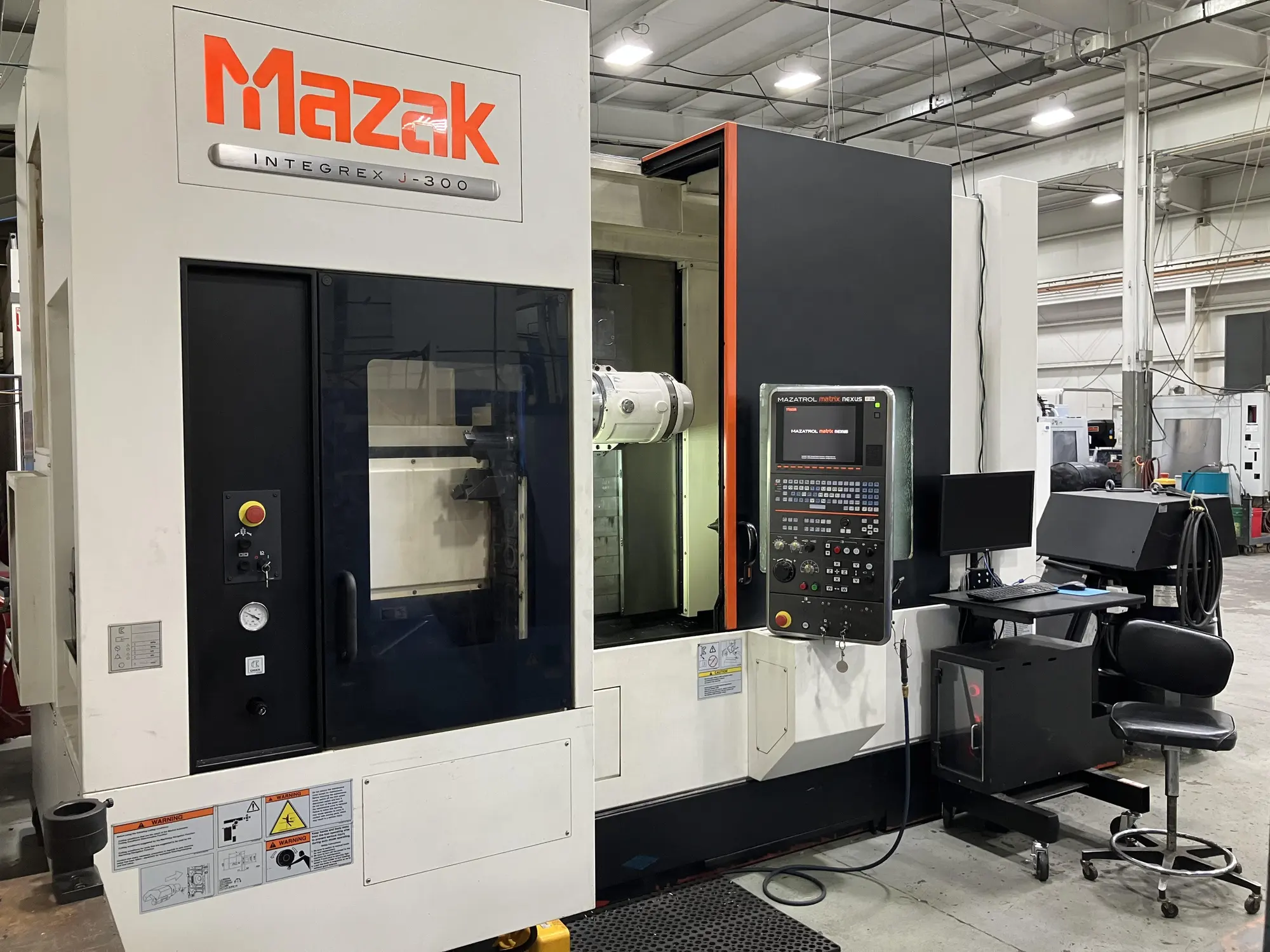

Mazak Integrex J-300 CNC Turning Center, 2012: Max swing 26.77", turn diam. 19.69". Equipped with Mazak Matrix Control, 12,000 RPM milling spindle, 36-tool changer, and hydraulic tailstock. Ideal for advanced 5-axis or more machining.
| # Axis | 5 | 5 |
| Swing | 26.77" | 679.96 mm |
| Machining Length | 24.76" | 628.9 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.15" | 80.01 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 19.69" | 500.13 mm |
| Tailstock | Yes | Yes |
SPECIFICATIONS:
Maximum Swing 26.77"
Maximum Turning Diameter 19.69"
X-Axis 24.21"
Z-Axis 48.46"
Y-Axis 9.84"
Distance Between Centers 40"
Main Spindle, C-Axis Indexing .001 degrees
Main Spindle Speeds 4,000 RPM
Main Spindle Motor 25 HP
Milling Spindle, B-Axis Tilt -30/+190 Degrees
Milling Head, B-Axis Indexing 1 Degree
Milling Spindle, Max 12,000 RPM
Milling Spindle Motor 30 HP
Tool Changer 60-Stations
Machine Weight 27,800 lbs
Machine Electrics 400V/3ph/50&60H
Mazak Matrix Control
B Axis Milling Head One Degree 3 Plus 2
B Axis Indexing .001 Degree
47" Centers
Milling Spindle 12,000 RPM
Chuck Spindle Speed Max. 4000 RPM
36 ATC Tool Changer
10" Dia. Kitagawa 3-Jaw Chuck
Spindle Hole 3" diameter
Hydraulic Tailstock (no sub spindle)
Chip Conveyor
