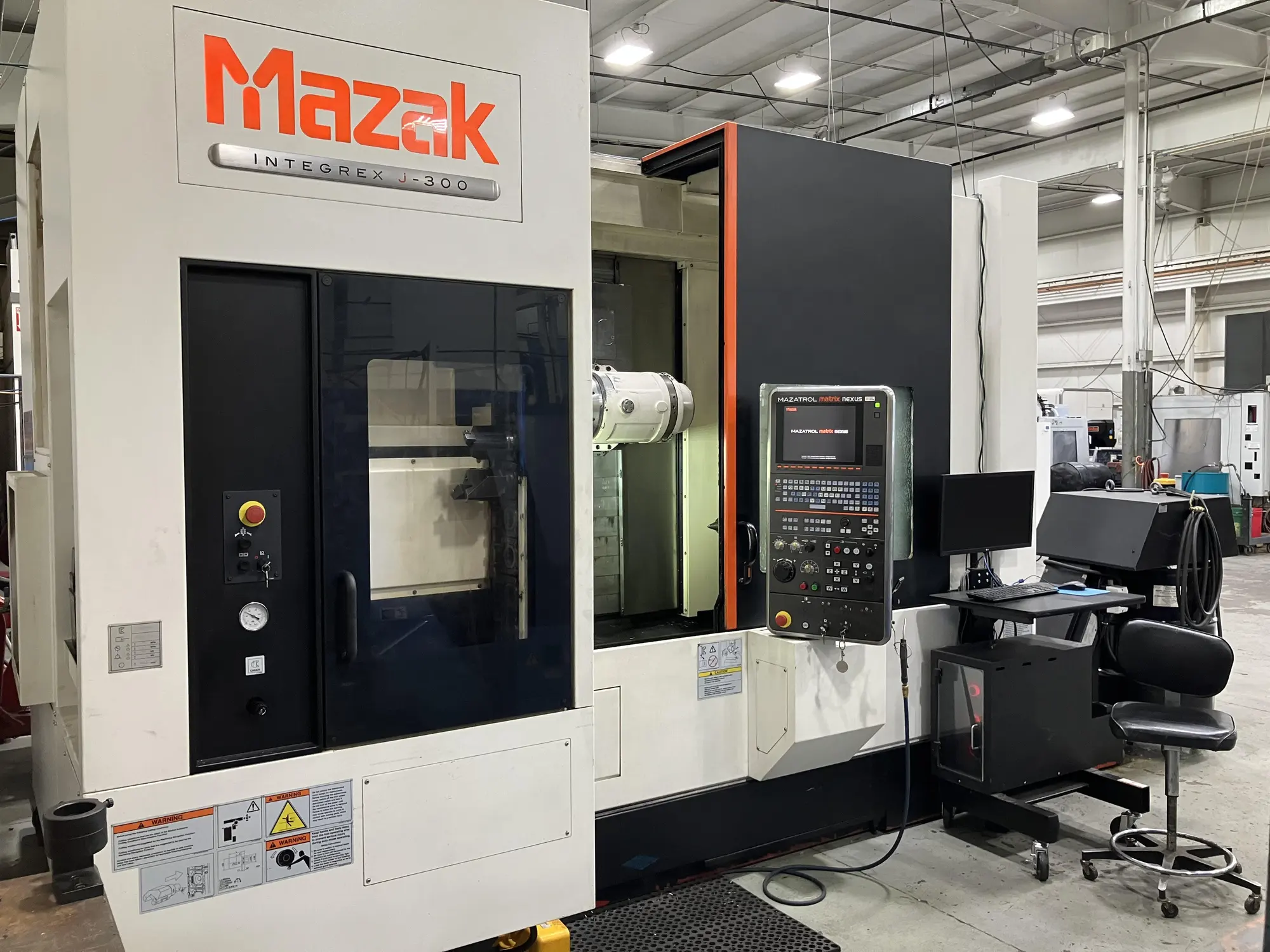

Mazak Integrex J-300 Multi Axis Turning Center (2012)
| # Axis | 5 | 5 |
| Swing | 26.77" | 679.96 mm |
| Machining Length | 24.76" | 628.9 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.15" | 80.01 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 19.69" | 500.13 mm |
| Tailstock | Yes | Yes |
Center Distance - 47"
B Axis Milling Head One Degree 3 Plus 2
B Axis Indexing .001 Degree
Milling Spindle 12,000 RPM
Chuck Spindle Speed Max. 4000 RPM
Mazak Matrix Control
36 ATC Tool Changer
10" Dia. Kitagawa 3-Jaw Chuck
Hydraulic Tailstock (no sub spindle)
Chip Conveyor
