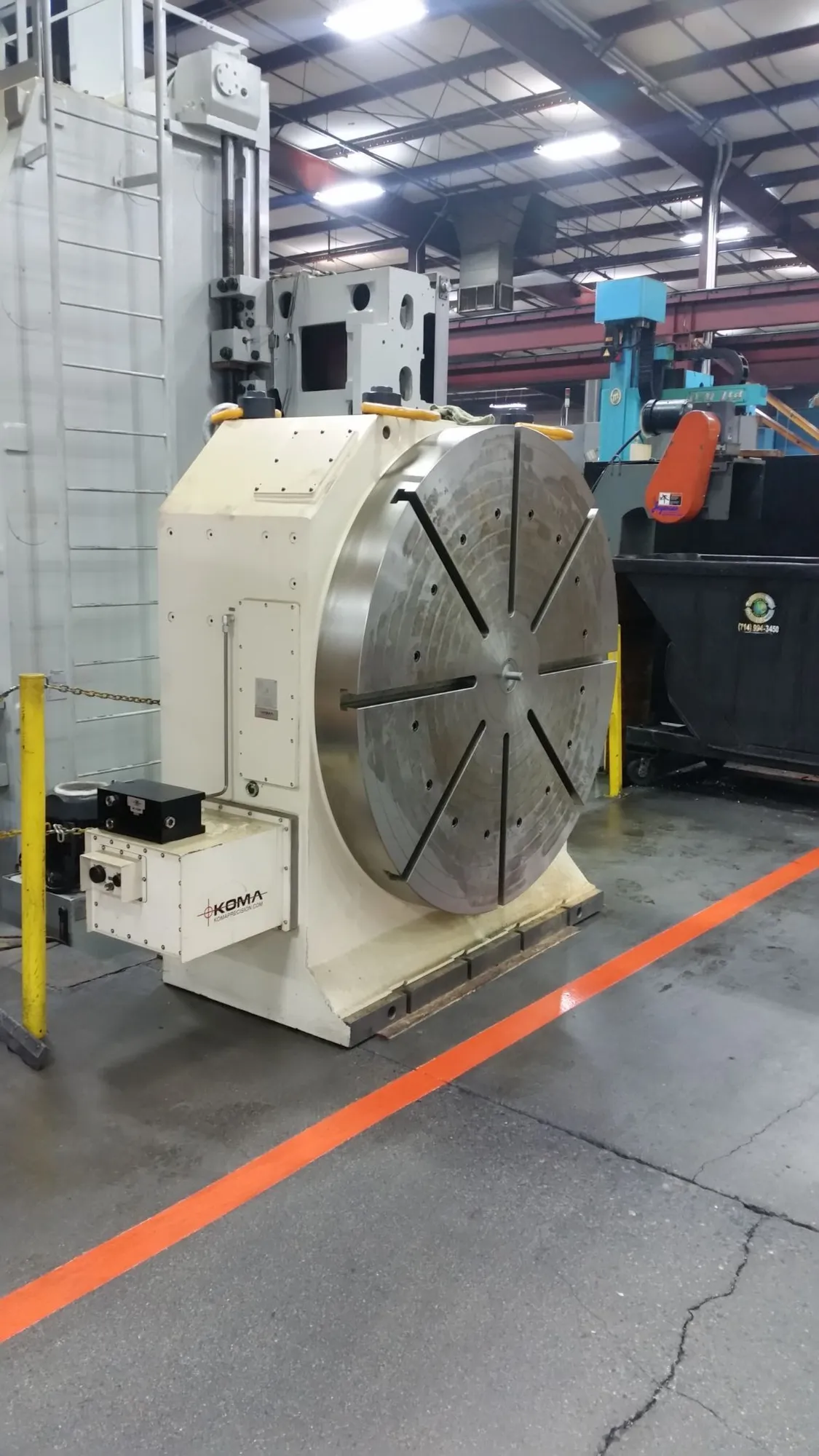

USED 2017 TSUDAKOMA RNCV-1501L
Overview
Description
2017 Tsudakoma RNCV-1501L CNC Rotary Table by TSUDAKOMA. Model RNCV-1501L, used condition, with a table size of 59.05". Ideal for precision machining tasks.
Specifications
| Table Size-X | 59.05" | 1,499.9 mm |
|---|
2017 Tsudakoma RNCV-1501L CNC Rotary Table #7729
SPECIFICATIONS:
Table diameter 59.06"
Center height 37.4"
Maximum table speed 4.17 RPM
Indexing accuracy +/- 7.5 arc sec
Clamping torque @500 psi 13,008 ft. lbs
Wheel torque 15,889 ft. lbs
Allowable work weight - H/V. 17,000/37,400 lbs
Table dimensions 79"W x 67"h x 30" D
Weight 15,400 lbs
PACKAGE INCLUDES:
*Fanuc servomotor for rotary table.
*Fanuc servo amplifier for machine Fanuc 16iM control.
*Fanuc options for machine control.
*Air booster for hydraulic clamping.
*Internal and external cables with connectors and all other required hardware.
*Integration to machine including installation of servo amplifier, cabling, cable management system, electrical bulkhead, parameter settings.
**No Use**
