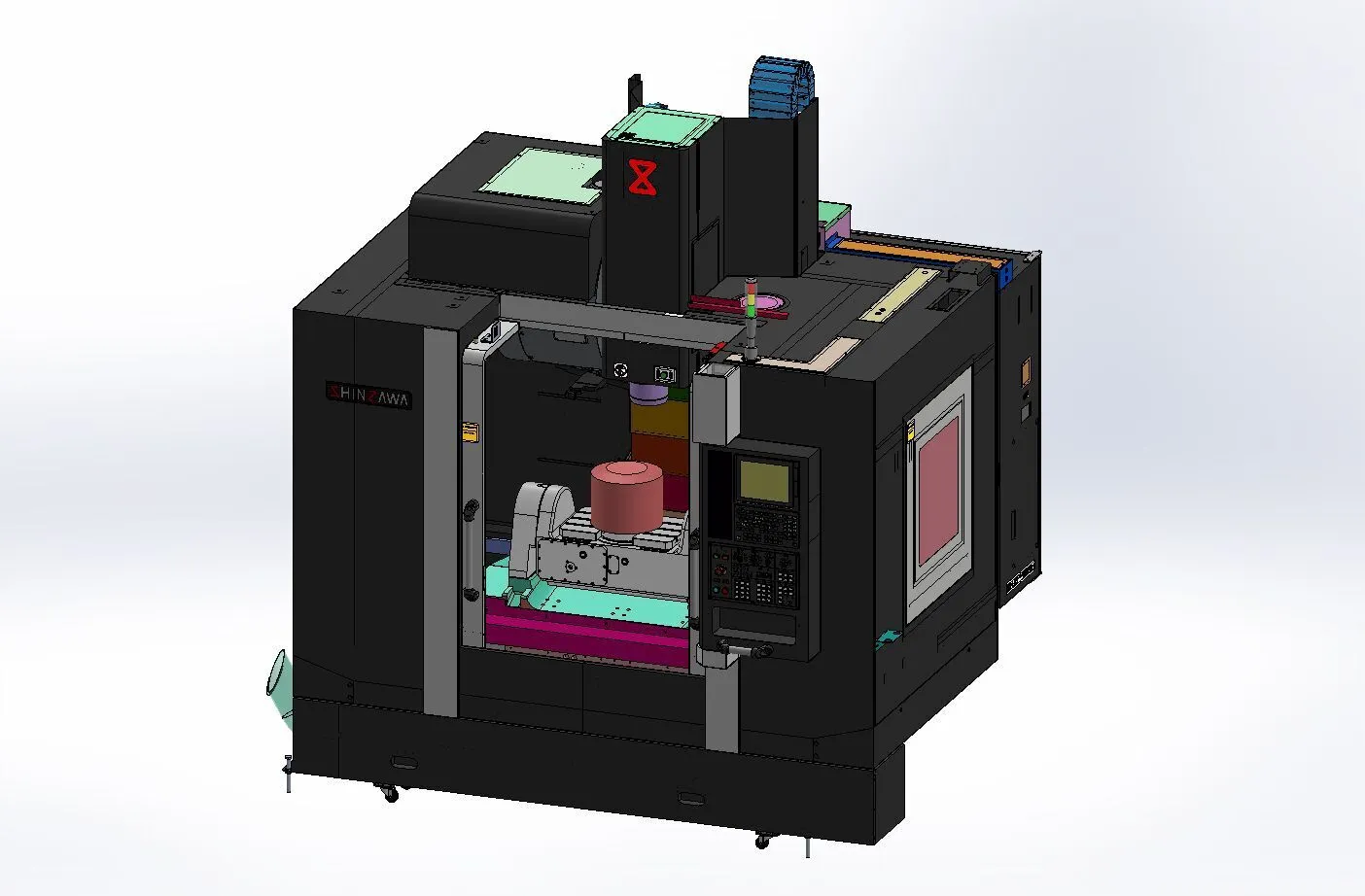

NEW SHINZAWA SU250-MF
Overview
Specifications
| X | 23.62" | 599.95 mm |
|---|---|---|
| Y | 20.47" | 519.94 mm |
| Z | 19.69" | 500.13 mm |
| # Axis | 5 | 5 |
| Power | 24.8 hp | 18.5 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 24 | 24 |
| Taper | HSK 63 | HSK 63 |
| Control | CNC (FANUC 0iMF-Plus (10.4"LCD)) | CNC (FANUC 0iMF-Plus (10.4"LCD)) |
| Dimensions | 102"x87"X115" | 102"x87"X115" |
| Weight | 13,450 LBS | 13,450 LBS |
Standard accessories:
1. Rigid tapping 11. Tool box with tools
2. Spindle air blast device 12. Air gun & flush gun
3. Fully enclosed splash guard 13. X/Y/Z in roller type linear guideways
4. Heat exchanger for electrical cabinet 14. Twin counter-balancing hydraulic cylinders
5. Automatic lubrication system 15. Twin chip augers
6. Spindle oil cooler 16. Chip conveyor with chip cart
7. Cooling system and coolant tank 17. 3-color warning lamp
8. Coolant flushing device 18. RS-232 interface
9. Work lamp (2pcs) 19. M30 auto power off
10.Foundation bolts and blocks
11. Tool box with tools
12. Air gun & flush gun
13. X/Y/Z in roller type linear guideways
14. Twin counter-balancing hydraulic cylinders
15. Twin chip augers
16. Chip conveyor with chip cart
17. 3-color warning lamp
18. RS-232 interface
19. M30 auto power off
Equipped With
Optional accessories:
1) AICC II 1 Set USD FOC
2) Workpiece centering module 1 Set USD FOC
3) CNC cutting parameter optimization module 1 Set USD FOC
4) 4/5th axis preparation (inner & outer cable and Installation) 1 Set USD FOC
5) 400-block look ahead 1 Set USD FOC
6) Smooth TCP 1 Set USD FOC
7) 2GB CF Card 1 Set USD FOC
