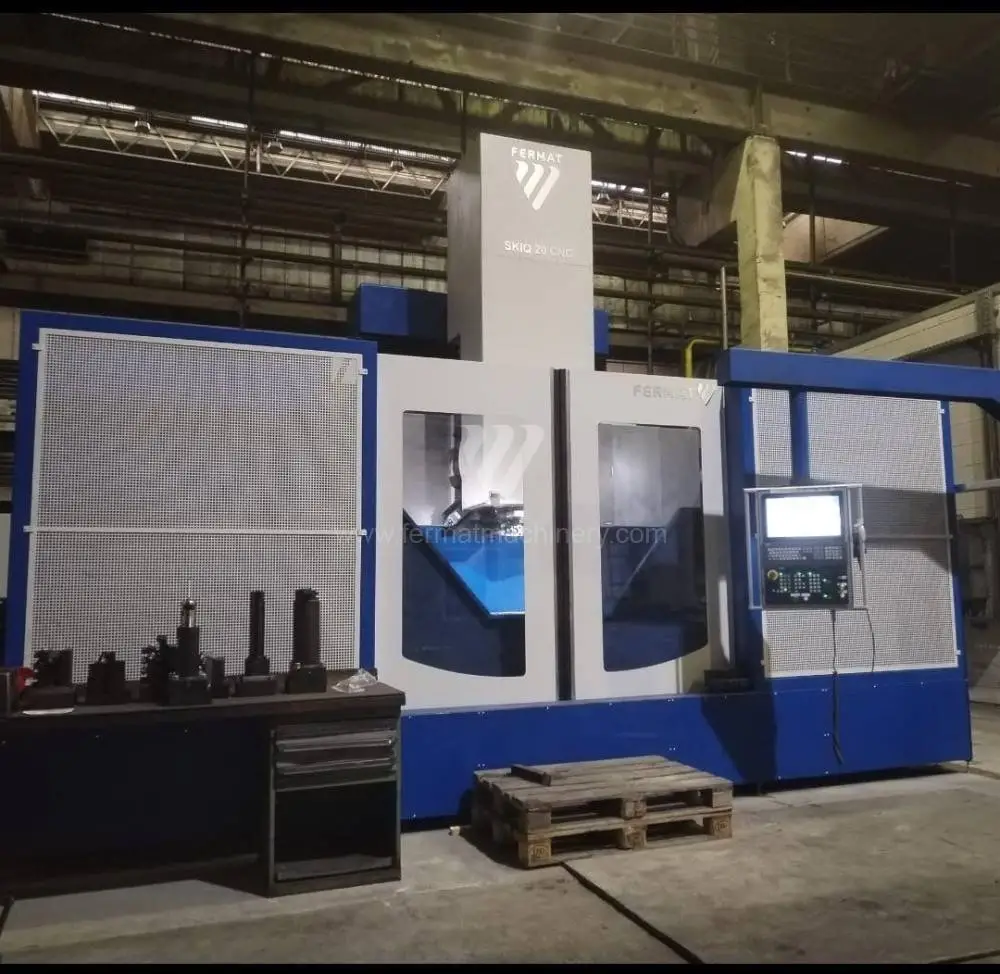

NEW 2025 TOS HULIN SKIQ 20 CNC

2025 REBUILT TOS HULIN SKIQ 20 CNC Vertical Boring Mill
The specs for the TOS Hulin SKIQ vary by model, but common features include a CNC control system (such as Siemens Sinumerik) and a vertical turret lathe design. Key specifications like plate diameter, maximum workpiece weight, and engine power depend on the specific SKIQ model, with examples ranging from the SKIQ 8 having an 800 mm table and a 2500 kg capacity, to the SKIQ 20 capable of a 2000 mm table and 20,000 kg load.
TOSHULIN, previously known as TOS Hulín, was founded in 1949 when construction of the plant got underway in the town of Hulín in what is now the Czech Republic. Initially, TOS Hulín was engaged in manufacturing a variety of machinery, but since 1951 the company has produced machine tools, eventually focussing production exclusively on Vertical Turning Lathes.
The TOSHULIN story is one of continuous innovation and improvement to our family of machines. In 1959, we manufactured our first vertical lathe with continuous working feed, numerically-controlled axes movements and tracing. This machine was built based on TOS Hulín’s proprietary design and was the first numerically controlled machine tool produced in Czechoslovakia, and also one of the first numerically controlled lathes in the world. In 1974, we introduced an innovative 15-position tool magazine for automatic tool exchange in the renowned SKIQ, which is still in demand and manufactured to this day. In the ensuing years, TOSHULIN has been a constant technology leader in vertical lathes.
In 2019, TOSHULIN celebrated 70 years in operation. TOSHULIN has earned a reputation for excellence. We have installed more than 13,500 machine tools in more than 70 countries worldwide. Our target is to continue our cooperation with foreign partners and customers also in the future and to develop it even more.

Max. diameter of workpiece 2200 mm 86"
Clamping diameter of rotary table 2000 mm 78.74
Max. load of table 20000 kg 44,000 lbs
Max. workpiece height 1710 mm 67.32"
Ram travel (Z) 1000 mm 39.37
Ram size 180 x 200 mm 4.5" x 7.87"
Driven Tools YES
Number of tool positions (driven) 15
Tool magazine YES
Number of positions in magazine 15
Main motor power 58 kW 77.7 HP
Machine dimensions l x w x h 6700x10400x6400 mm 263.8"x 409.4"x 252"
Power of driven tools 19,5 kW 26 HP
Speed driven tools - 8-3300 min
Working feed 4000 mm/min
Rapid feed 10000 m/min
Axis C 360 °
Cooling through spindle YES
Pressure of cooling 20 bar
Rotations of clamping plate 2 - 160 /min
Machine weight 32000 kg 70,400 lbs

Description
Machine completely overhauled 2025.
Under the power on Fermat stock.
Full - way positioning C axis (boring, milling with continuous controllable worktop and driving tools).
Full machine covering with CE declaration.
12 months warranty.
Full machine documentation.
Chip conveyor.
Cooling device.
