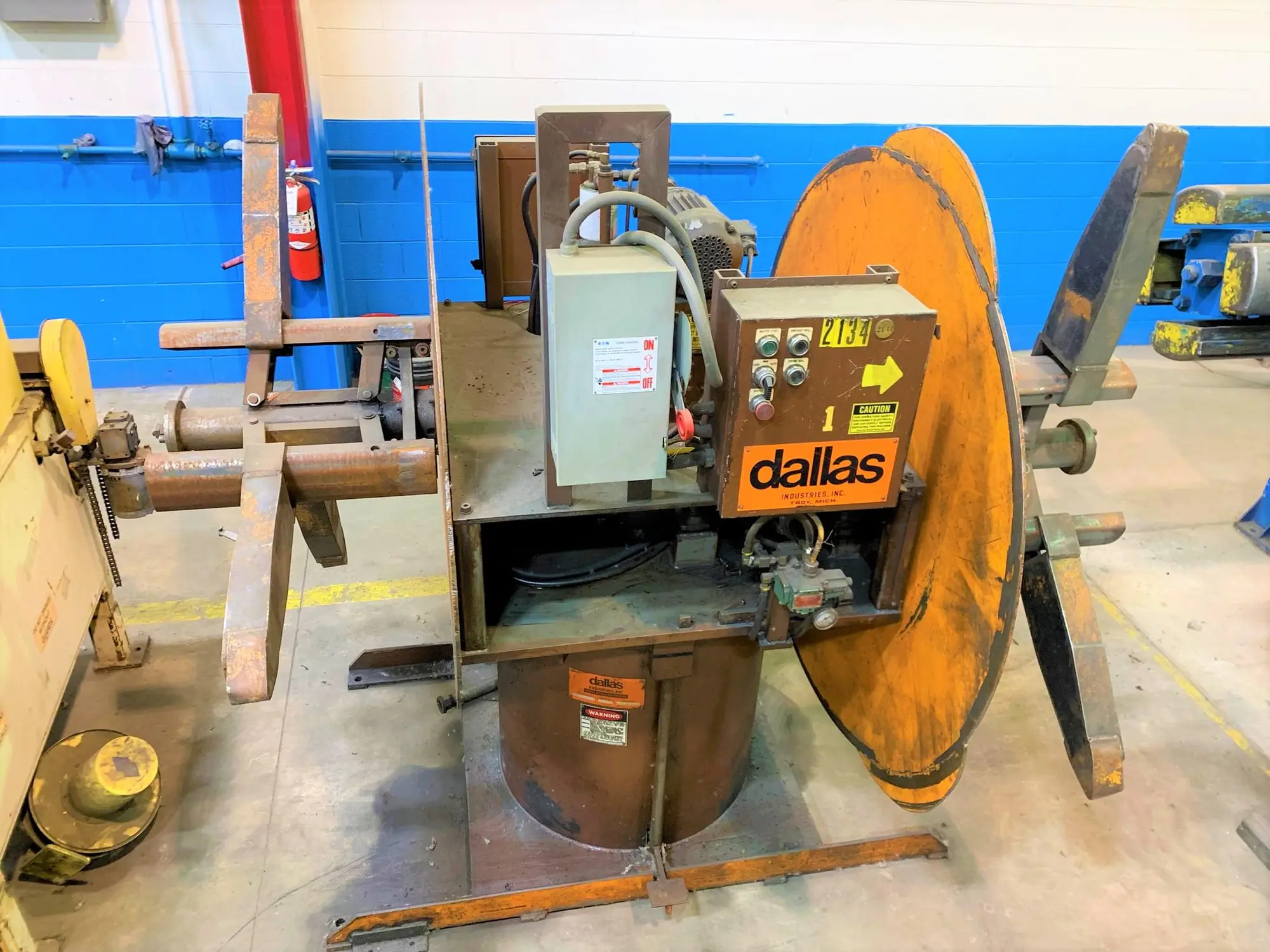

Dallas Ind. Pull Off Double End Coil Reel Uncoiler 4,000 Lbs.
Dallas Ind. Pull Off Double End Coil Reel Uncoiler Specifications:
Coil weight capacity: 4,000 Lbs.
Coil width capacity: 18"
Expansion range: 16" - 21" (To be confirmed)
Coil O.D. capacity: 60"
Serial no: 16945
Dallas Ind. Pull Off Double End Coil Reel Uncoiler Equipment and Features:
Three leaf mandrel coil reel (per side)
Coil reel keeper arms
Coil reel backing plates
Hydraulic coil reel mandrel expansion
Air brakes mounted on main coil reel spindles
Adjustable tensioning
Air pressure regulator and gauges
Self contained hydraulic unit
Operator's controls
Emergency stop
Foot pedal release for arbor rotation
