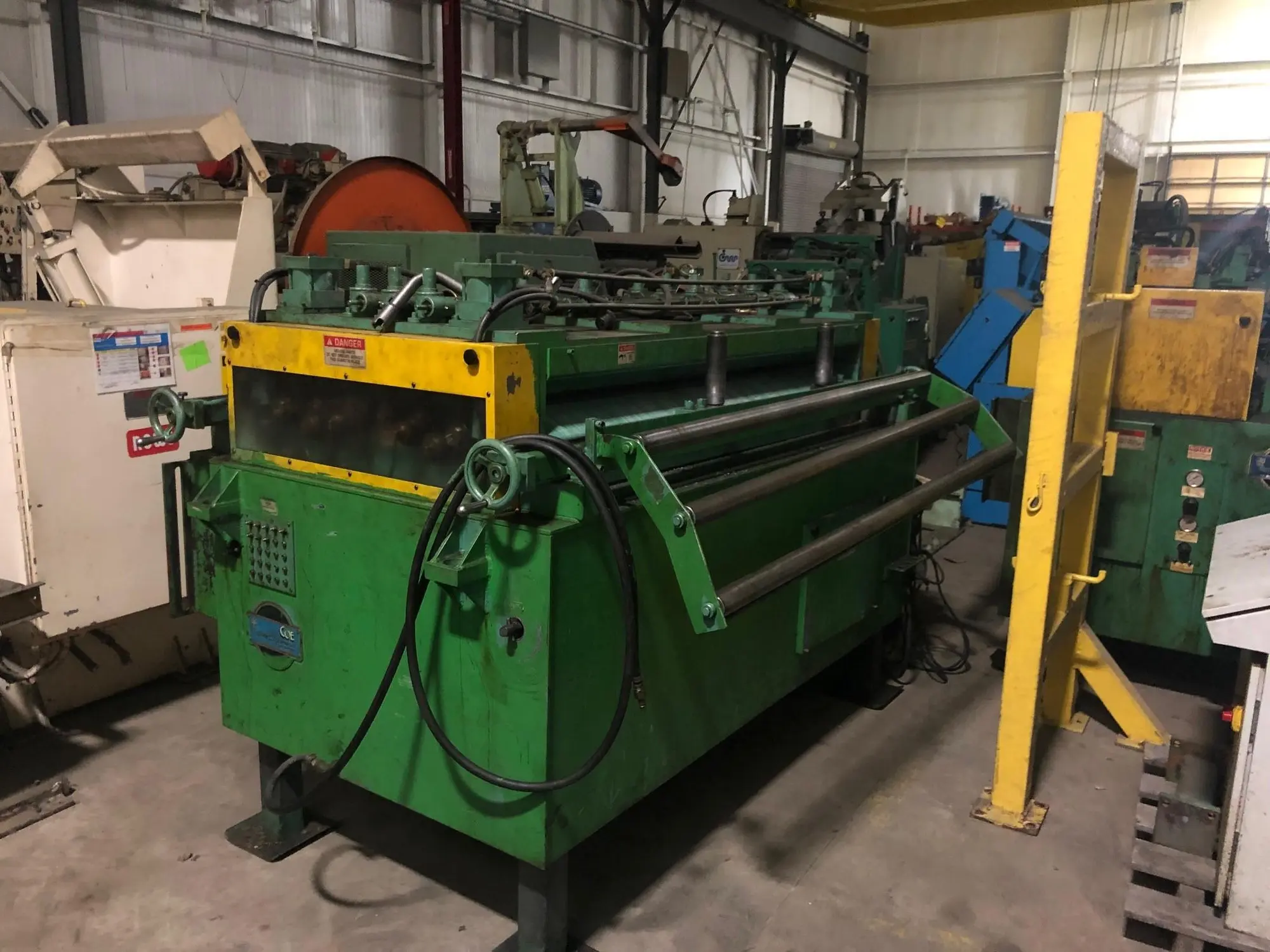

USED COE CPFS-305-72

COE Press Roll Feed Straightener Combination Press Feed 72" Wide

Coe Press Servo Roll Feed Straightener Combination Press Feed Specifications:
Stock Width Capacity: 72"
Stock Thickness: .080" x 72" Wide
Stock Thickness: .100" x 66" Wide
Stock Thickness: .120" x 60" Wide
Serial No.: 23522-1

Coe Press Servo Roll Feed Straightener Combination Press Feed Equipment and Features:

Coe Press Servo Roll Feed Straightener Combination Press Feed Model No.: CPFS-305-72, Serial No.: 23522-1
Upper and lower feed rolls x 5" diameter
Matte chrome finish on upper and lower feed rolls
Air operated entrance and exit pinch roll
Seven straightening rolls x three inch diameter
Individual upper roll adjustments via screw jacks

Double row upper and lower breaker roll backup rollers
Entrance edge guide with self centering hand crank adjustment – 2 ¼” diameter
Heavy duty cabinet base with +/- 4” of height adjustment
3 roll entrance catenary support section
AC Control system
Optional:  New AC Servo drive and control system - consult sales for pricing

Warranty:  MDNA Thirty day return privilege
Terms: 40% deposit, net prepaid
