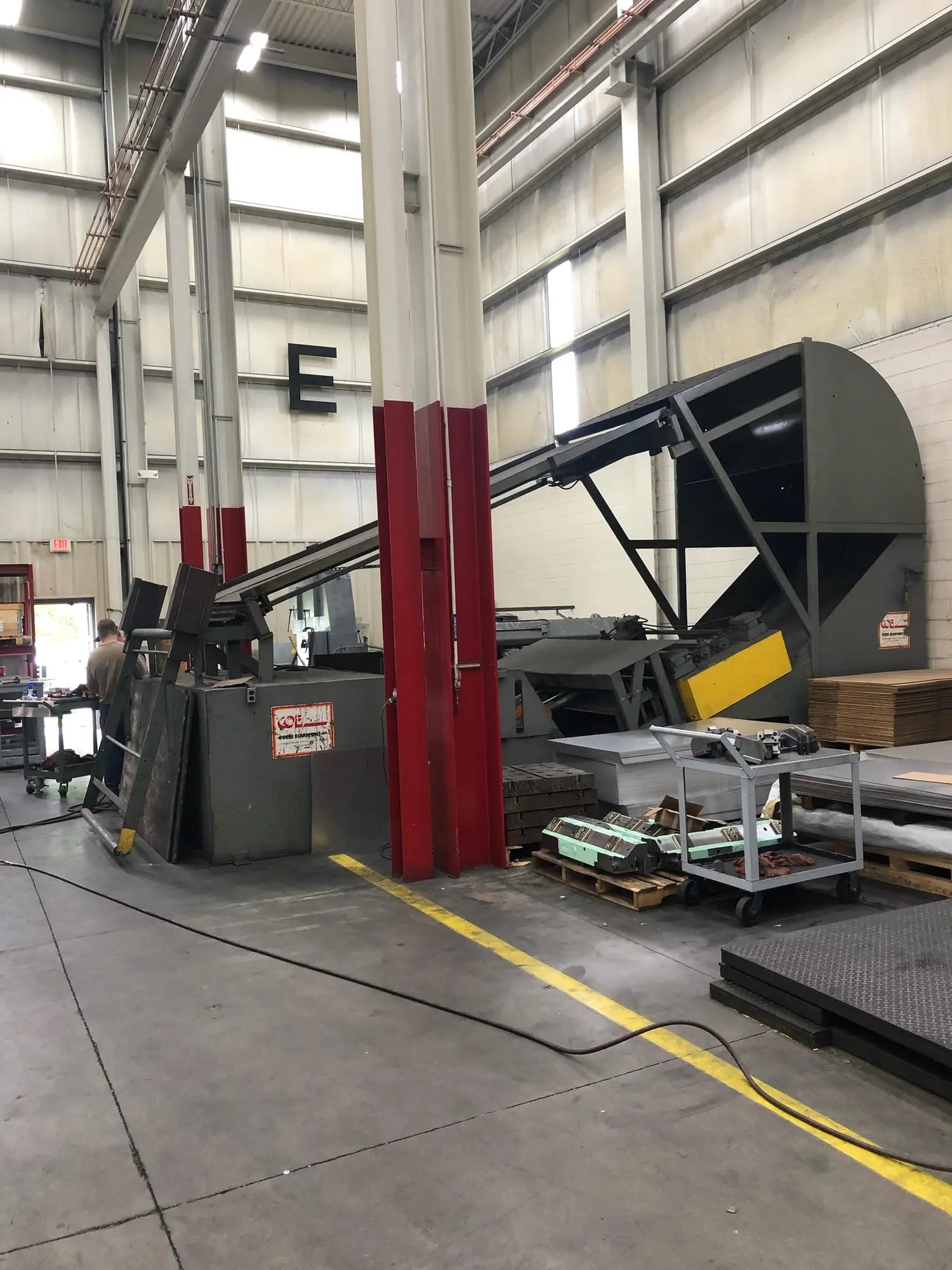

USED COE CPCC-20072

Coe Press Space Saver Coil Cradle Straightener Combination Uncoiler 20,000 Lbs.

Coe Press Coil Cradle Straightener Combination Uncoiler Specifications:

Coil weight capacity: 20,000 Lbs.
Coil width capacity: 72"
Stock thickness capacity: .200" x 72" Wide
Stock thickness capacity: .250" x 48" Wide
Coil OD capacity: 60"
Coe Press Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Coil cradle straightener entry and exit pinch rolls
Air operated upper coil cradle straightener pinch roll adjustments
Five inch diameter straightening rolls
Hand crank upper coil cradle straightening roll adjustments via 5 ton screw jacks
Inline (Floor Mounted) coil cradle straightener powered straightener
Air operated stock peeler
Stock end-debender system
Dual adjustable side plates with side plate rollers
Reverse loop stock deflector
Over head guide chute (air operated)
Chute extension
Common operator's control console
