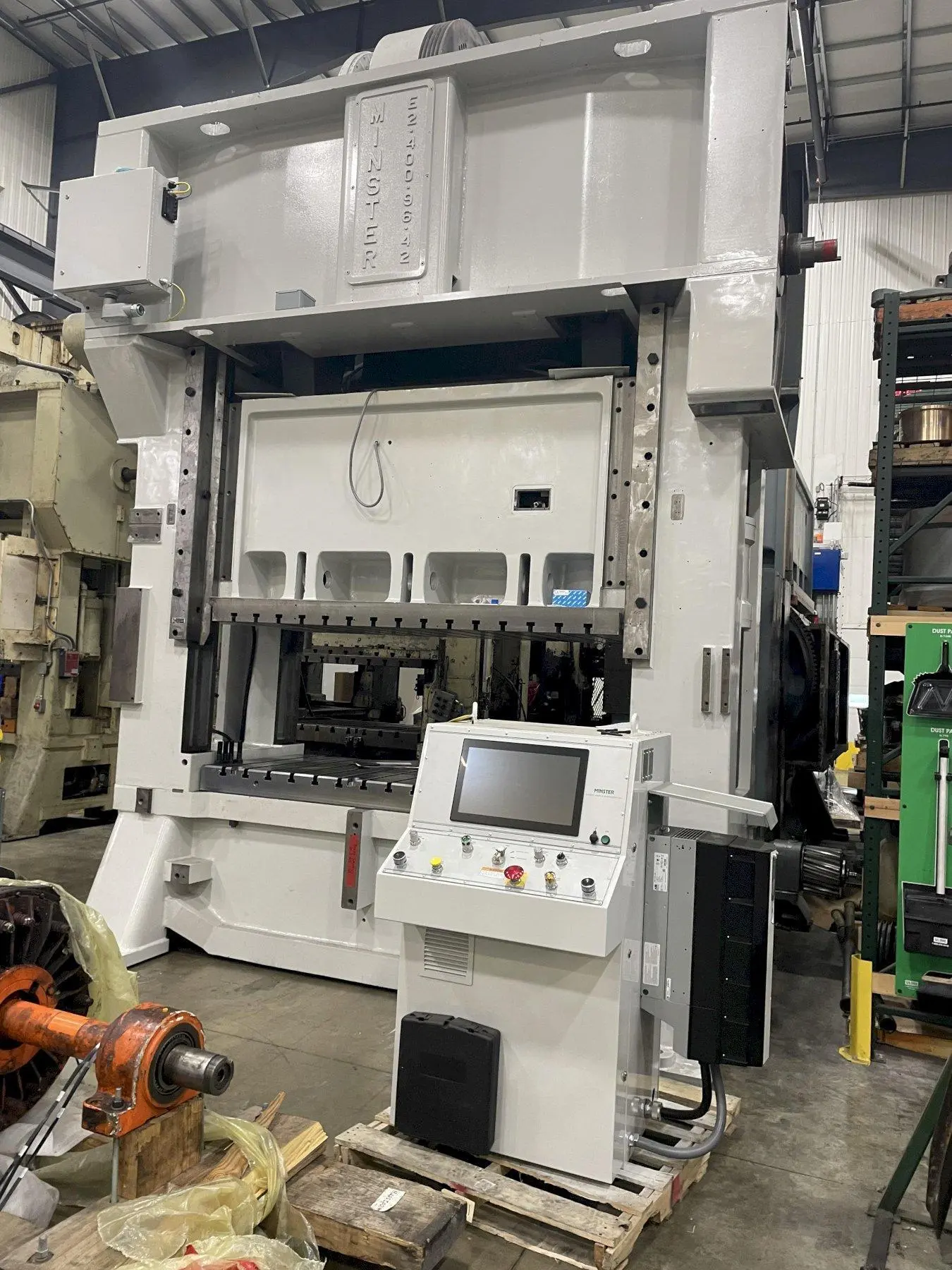

Minster E2-400-96 Straight Side Press
Press Specifications:
· 400 U.S. Tons Capacity (3558 kN)
· 8.00 in. Stroke (203 mm)
· 6.00 in. Slide Adjustment (152 mm)
· 40.00 in. Shutheight, SDAU, on Bed (1016 mm)
· 6.00 in Bolster Plate Thickness (152 mm)
· 96.00 x 42.00 in. Slide Area (2438 mm x 1066 mm)
· 96.00 x 42.00 in. Bed Area (2438 mm x 1066 mm)
· 98.00 Distance between gibs (2489 mm)
· 90.00 x 15.00 Bed Opening (2286 mm x 381 mm)
· 26.00 in. Upright Opening (660 mm)
· 36.00 in. Floor to Top of Bed (914 mm)
· 35 - 70 SPM
· New Drive Motor
· TBD Incoming Voltage
Equipped With:
· Single Geared
· Minster Combination Air Clutch & Brake
· Oil Troughs on front and rear of bed
· Pneumatic Counterbalance System
· Recirculating Lubrication System
· New ABB Variable Frequency Drive
· New Minster Production Management Control
Note: All specifications contained herein are as the machine was originally manufactured and are subject to change at time of inspection.
