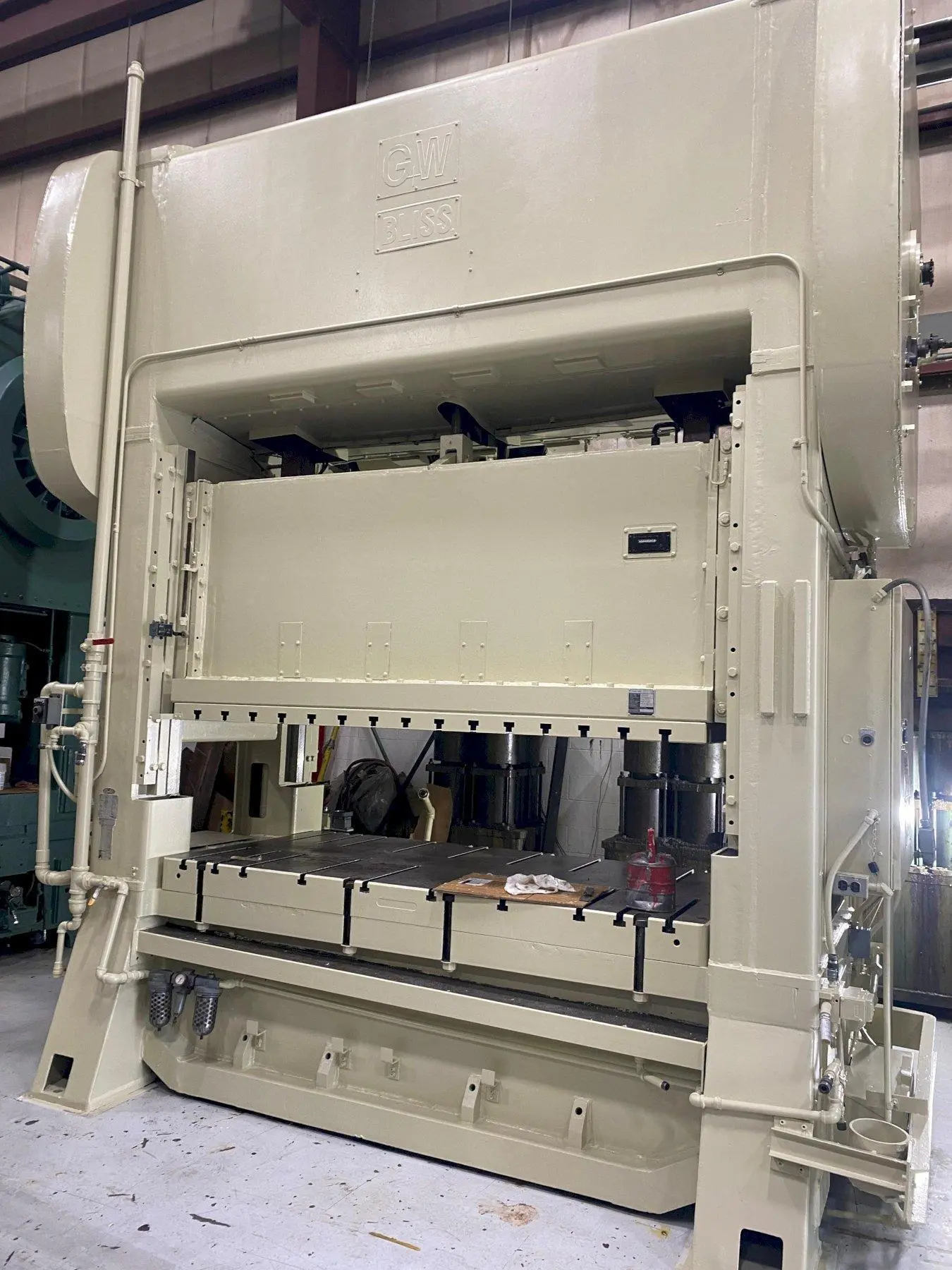

USED BLISS SC2-200-96

Press Specifications:

·         200 U.S. Tons Capacity (1779 kN)
·         8.00 in. Stroke (203 mm)
·         10.00 in. Shut Height Adjustment (254 mm)
·         30.00 in. Shut Height (762 mm)
·         96.00 x 48.00 in. Ram Area (2438 mm x 1219 mm)
·         96.00 x 48.00 in. Bolster Area (2438 mm x 1219 mm)
·         24.50 in. Side Window Opening (622 mm)
·         35 - 70 SPM Speed Range
Equipped With:

·         Air clutch & brake
·         Air Counterbalances
·         Recirculating Lube System
·         T-Slotted Ram Plate and Bolster
·         Single End Drive
·         Motors and Controls

New Electrical includes:

·         Toledo Integrated Press Pilot 150 Clutch and Brake Controller
·         Toledo Integrated DPP 2.0 PLS DIE PRO UNIT
o    8 channel PLS Outputs
o    8 Channel Die Protection Outputs
o    Emergency Stop and Top Stop Outputs
o    New Push buttons selector switches and speed controls
o    Control system to monitor lube system

Price Includes:  Full Mechanical, Electrical, Air and Lubrication Recondition.  All work is performed by 3rd party professionals and includes an extended Warranty!

For "As is" pricing loaded onto a truck from our Livonia Michigan warehouse please feel free to contact your sales representative.

Note:  All specifications contained herein are as the machine was originally manufactured and are subject to change at time of inspection.
