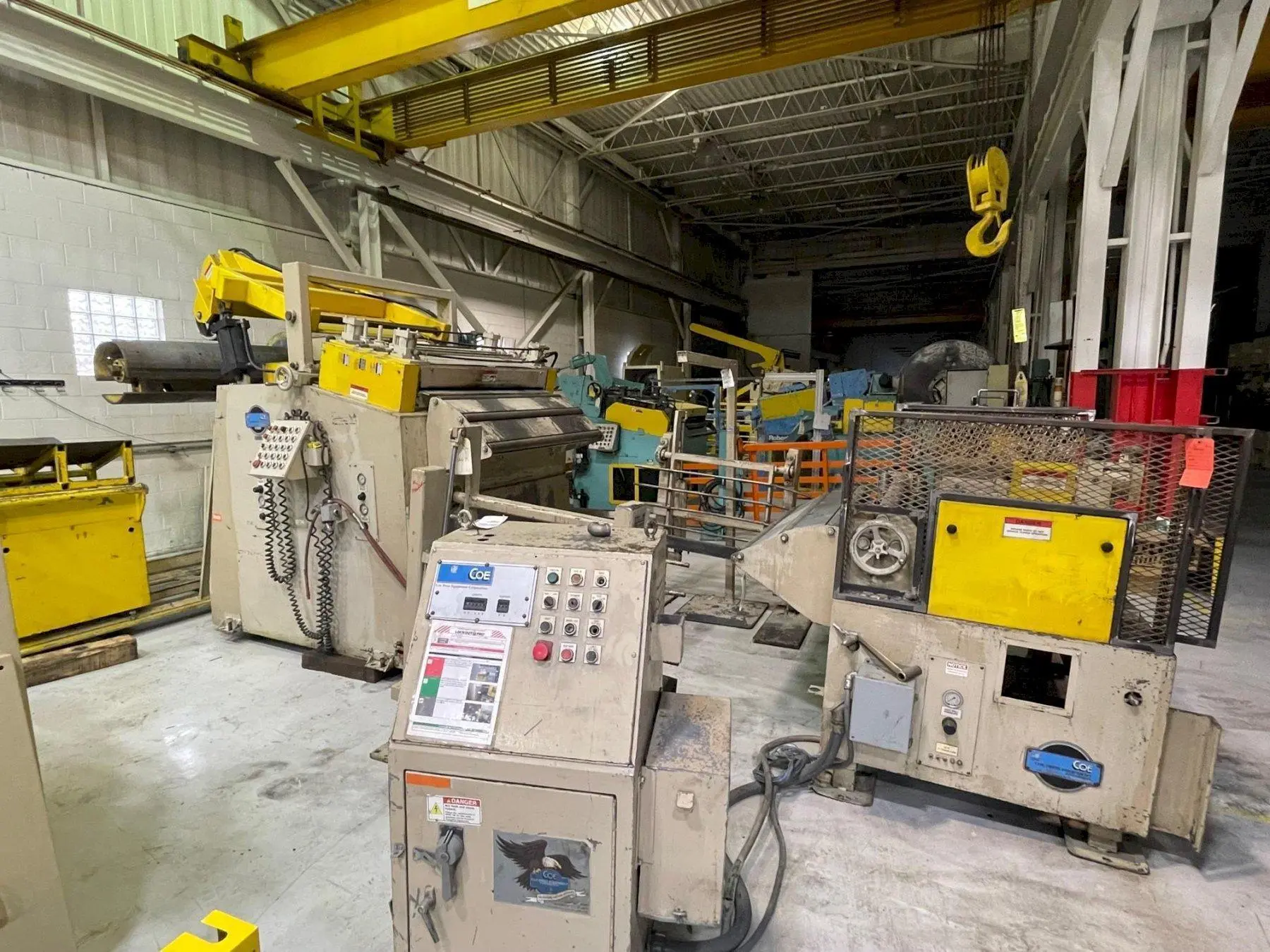

USED COE CPR PO-15048 / CPPS-300-48 / CPRF-448

Coe Press Coil Feed Line 15,000 lb x 48" Wide

Coe Press Conventional Complete Coil Feed Line Specifications:Coil weight capacity: 15,000 Lbs.Coil width capacity: 48"Stock thickness capacity: .070" x 48" WideExpansion range: 19.25" - 24.75" Coil O.D. capacity: 72"Coe Press Conventional Complete Coil Feed Line Equipment and Features:
Coe Press Coil Reel Uncoiler Model No.: CPR-PO-15048Three leaf mandrel coil reel
Heavy duty wedge type hydraulic coil reel mandrel expansionCoil reel keeper armsThreading drive for jog forward and reverseAir brake mounted on main coil reel spindle
Adjustable tensioning Traveling coil load car Powered lift and travel Coe Press Powered Coil Straightener Model No.: CPPS-PO-300-48Entry and Exit powered coil straightener pinch rolls with air operated adjustmentsSeven 3.0" diameter coil straightening rolls
Manual upper straightener rolls adjustments via screw jacksHand crank stock width edge guides Inclined powered coil straightener  head
Exit cascade loop support rollersStock peeler / de-bender / hold down station Motorized end wheel on coil hold down arm
Hand held pendant control for jog forward and reverseVariable speed powered coil straightener drive and control package Common operator control station Auto/Run cycleVariable speed loop control Coe Press Exit Threading Table Model No.:  ETT Bombay door style Air operated actuation Coe Press Servo Roll Feed Press Feed Model No.: CPRF-448Upper and lower matte chrome finished servo feed rolls four inch diameterAir operated upper servo feed roll lift / pilot (dual cylinder)Cabinet base mounted with pass line adjustmentsHand crank entry stock width edge guides
Price includes new Coe Servo Master 6" control upgrade on feeder (lead time to be confirmed)
Reference line layout available

Warranty: Standard MDNA 30 day return privilege
Terms: Prepaid prior to removal
