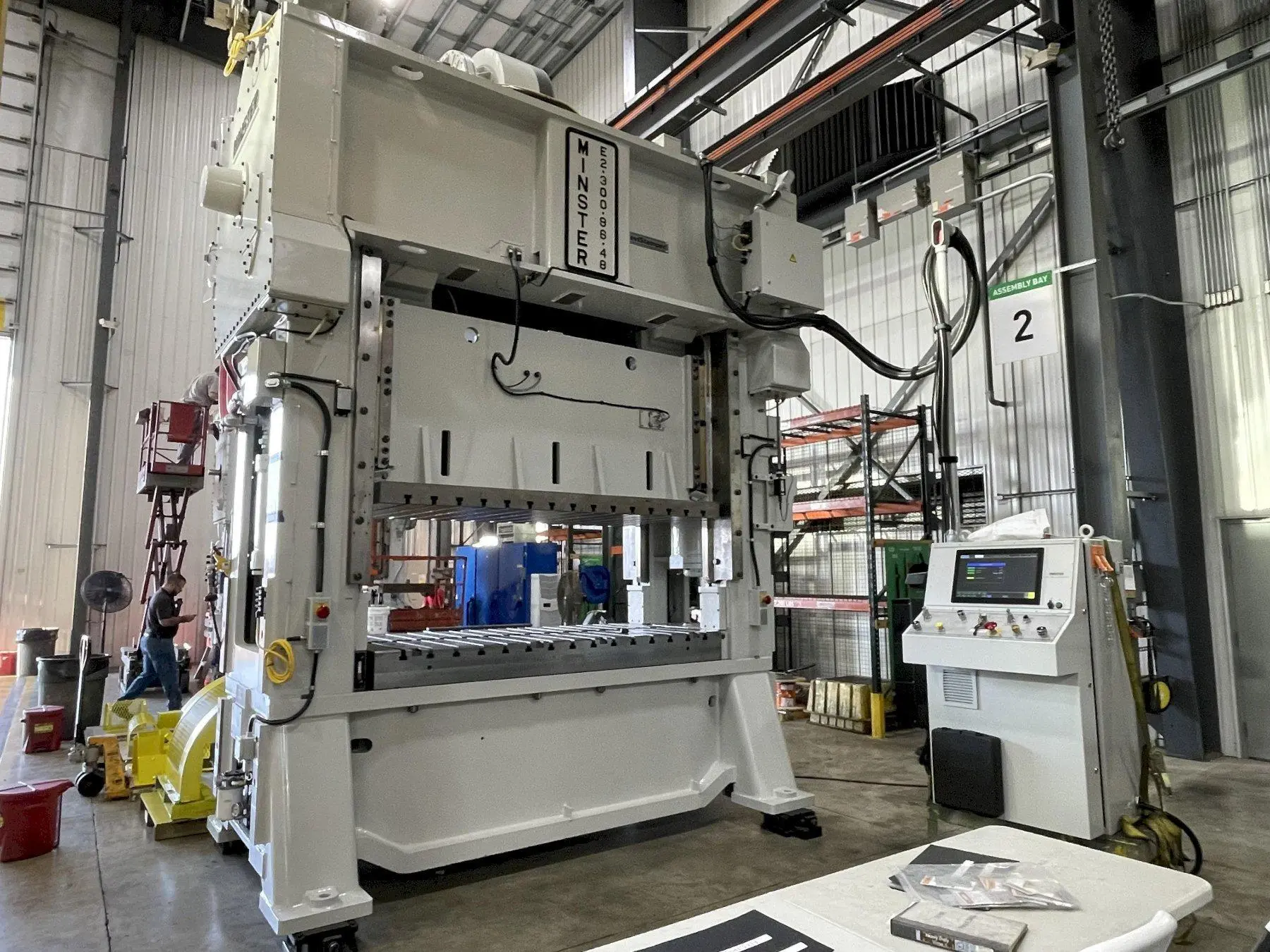

Remanufactured Minster E2-300-96 Straight Side Press
Press Specifications:
· 300 U.S. Tons Capacity (2669 kN)
· 12.00 in. Stroke (305 mm)
· 6.00 in. Slide Adjustment (152 mm)
· 30.00 in. Shutheight, SDAU, on Bed (762 mm)
· 96.00 x 48.00 in. Slide Area (2438 mm x 1219 mm)
· 96.00 x 48.00 in. Bed Area (2438 mm x 1219 mm)
· 98.00 in. Between Gibs (2489 mm)
· 27.00 in. Upright Opening (686 mm)
· 36.00 in. Floor to Top of Bed (914 mm)
· 0 - 80 SPM
· 50 HP – 1500 RPM Drive Motor
· 112,500 lbs. Approx. Weight, Press Only (51710 kg)
Equipped With:
· Single Geared
· Minster Combination Air Clutch & Brake
· Air Operated Flywheel Brake, electrically interlocked
· Four piece tie rod construction frame
o Welded crown, bed, slide
o High tensile cast iron uprights
· Pneumatic Counterbalance
· Minster “Monitorflow” Recirculating Lube System
· Long Barrel Motorized Shutheight Adjustment
· Minster PMC Press Control
· Vibro/Dynamics isolation mounts
· Minster PMC Control
NOTE: Press Feed Lines (Used and New) Available - consult sales for more information
