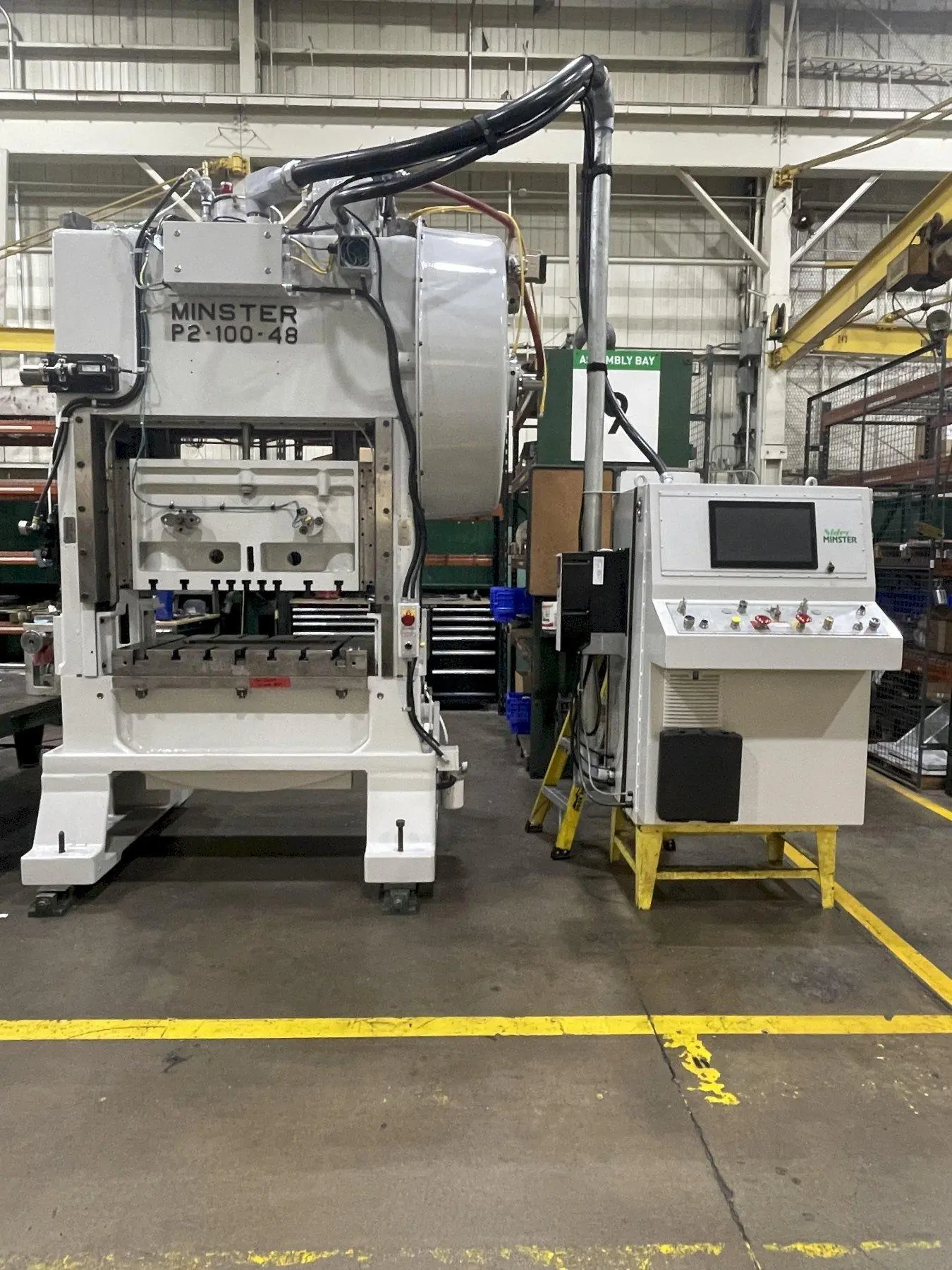

USED 1974 MINSTER P2-100-48

Minster P2-100-48 Straight Side Press

Remanufactured Minster P2-100-48-021311
Precision Straight Side Press

Specifications (INCH)

Press Specifications
Model Number........................................................ P2-100-48×31-FW
Force × Distance off Bottom.................................. 100 ton
Crankshaft Extension Location............................... Opposite Drive Side
Drive Arrangement.................................................. Flywheel
Drive Location........................................................ Right Hand Side
Lube Unit Location................................................. Drive Side
Approximate Press Mass......................................... 28,000 lb.
Shutheight Indicator Readout................................. Inch

Press Slide Specifications
Stroke Length, Speed Range................................... 4.00 in, 80-160 spm
Adjustment of Shutheight....................................... 4.00 in
Area of Slide, R-L × F-B........................................ 48.0 × 18.5 in
Slide Face Machining.............................................. Standard

Press Bolster Specifications
Plate Material.......................................................... Steel
Bolster Plate Thickness........................................... 5.00 in
Area of Bolster, R-L × F-B..................................... 48.0 × 31.0 in
Bolster Plate Machining.......................................... Standard

P2 Precision Straight Side Press
Specifications (INCH) continued

Press Frame Specifications
Upright Passline Opening, F-B............................... 16.0 in
Area of Bed, R-L × F-B.......................................... 48.0 × 31.0 in
Opening in Bed, R-L × F-B.................................... 41.0 × 15.0 in
Shutheight, SDAU on Bolster................................. 13.00 in
Shutheight, SDAU on Bed...................................... 18.00 in
Approx. Clearance, Mount to Bottom of Bed........ 16.00 in
Dist Mount to Top of Bed.......................................... 40.0 in
Approx. Floor Area, R-L × F-B.............................. 117 × 60 in
Approx. Overall Height, from Mount..................... 151 in
