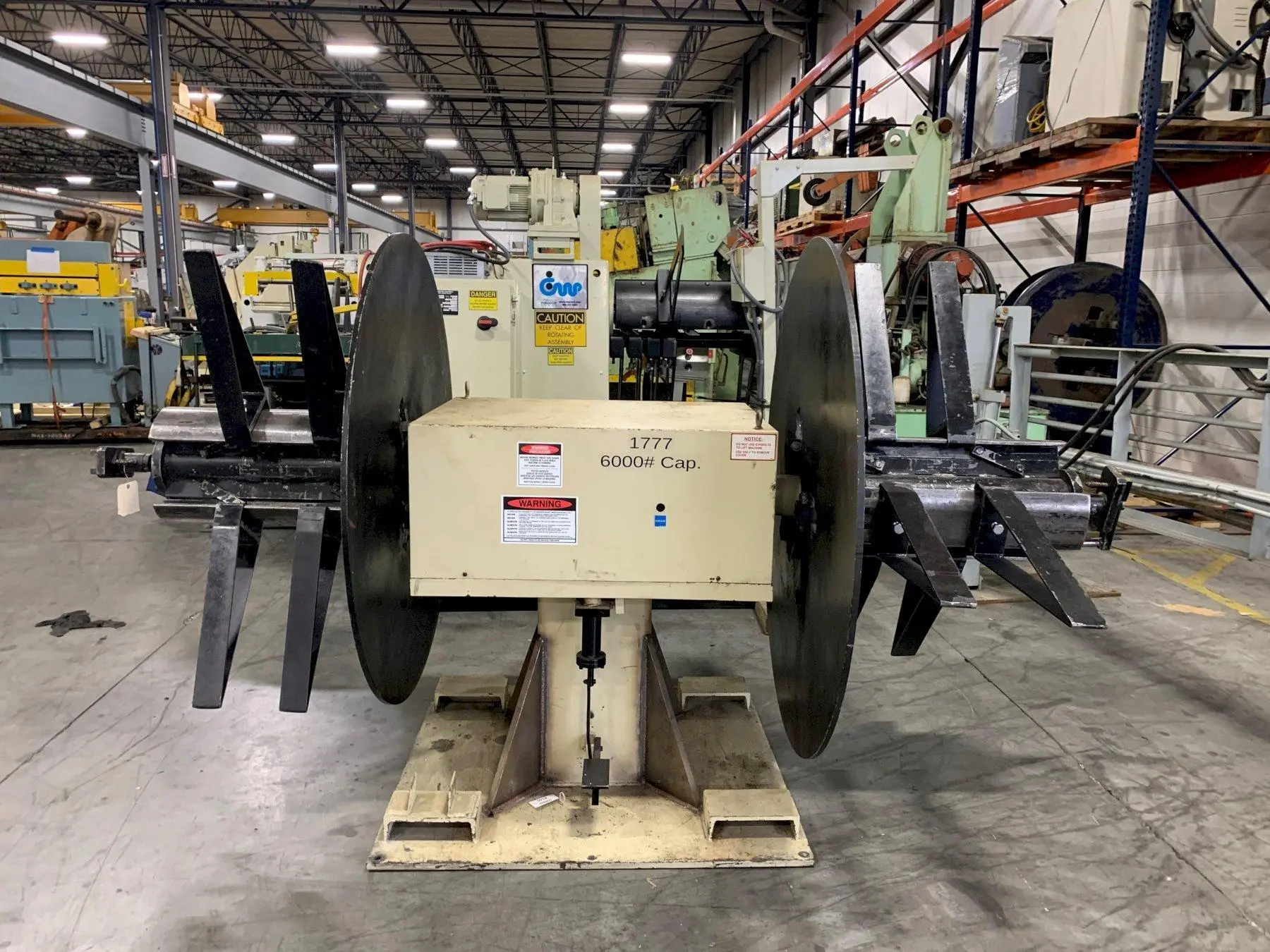

Coe Press Pull Off Double End Coil Reel Uncoiler 6,000 Lbs.
Coe Press Pull Off Double End Coil Reel Uncoiler Specifications:
Coil weight capacity: 6,000 Lbs.
Coil width capacity: 24"
Expansion range: 15" - 20" (To be confirmed)
Coil O.D. capacity: 60"
Serial no: 1025-3
Coe Press Pull Off Double End Coil Reel Uncoiler Equipment and Features:
Three leaf mandrel coil reel (per side)
Manual coil reel expansion
Front mounted coil reel expansion handles
Full set of outer coil reel keeper arms
Full OD coil reel backing plates
Air brakes mounted on main coil reel spindles
Adjustable tensioning
Air pressure regulator and gauge
Foot pedal release for arbor rotation indexing
As Is condition, working
Warranty: Inspection
Terms: 40% Deposit, net prepaid
