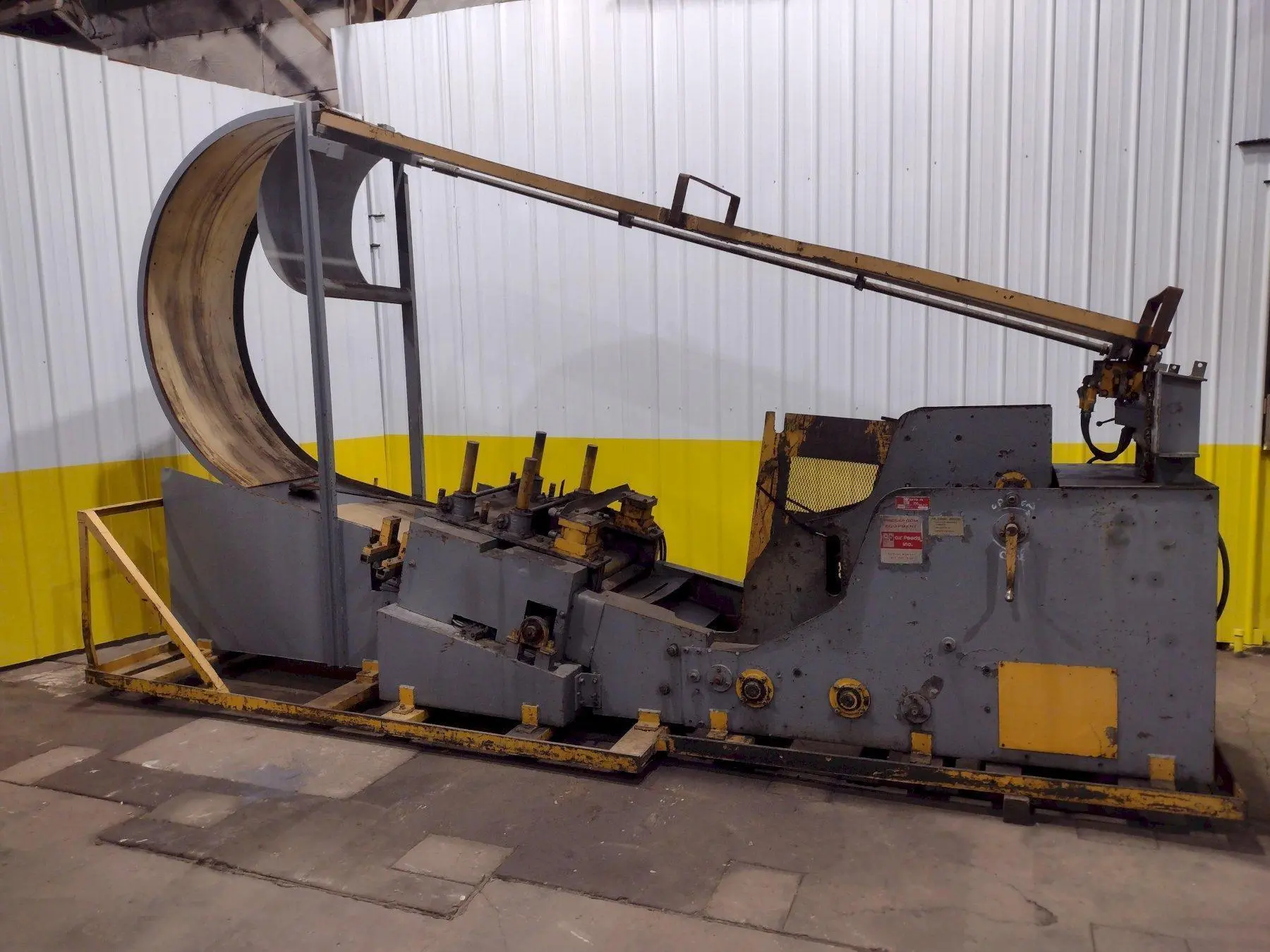

USED AIR FEEDS CCS-100-2460

AIR FEEDS Inc. Coil Cradle Straightener Combination Uncoiler 10,000 Lb. x 24" Wide

AIR FEEDS INC. Coil Cradle Straightener Combination Uncoiler Specifications:

Coil weight capacity: 10,000 Lbs.
Coil width capacity: 24"
Stock thickness capacity: .187" x 24" Wide
Stock thickness capacity: .250" x 12" Wide
Coil OD capacity: 60"

AIR FEEDS INC. Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Coil cradle straightener entry and exit pinch rolls
Air operated adjustable coil cradle straightener entry pinch roll
Straightening rolls x four inch diameter
Hand crank upper coil cradle straightening roll adjustment via screw jacks
Inline (Floor Mounted) coil cradle straightener powered straightener
Coil nesting rollers
Dual adjustable coil cradle straightener side plates
Reverse loop stock deflector
Over head guide chute (air operated)
Controls
