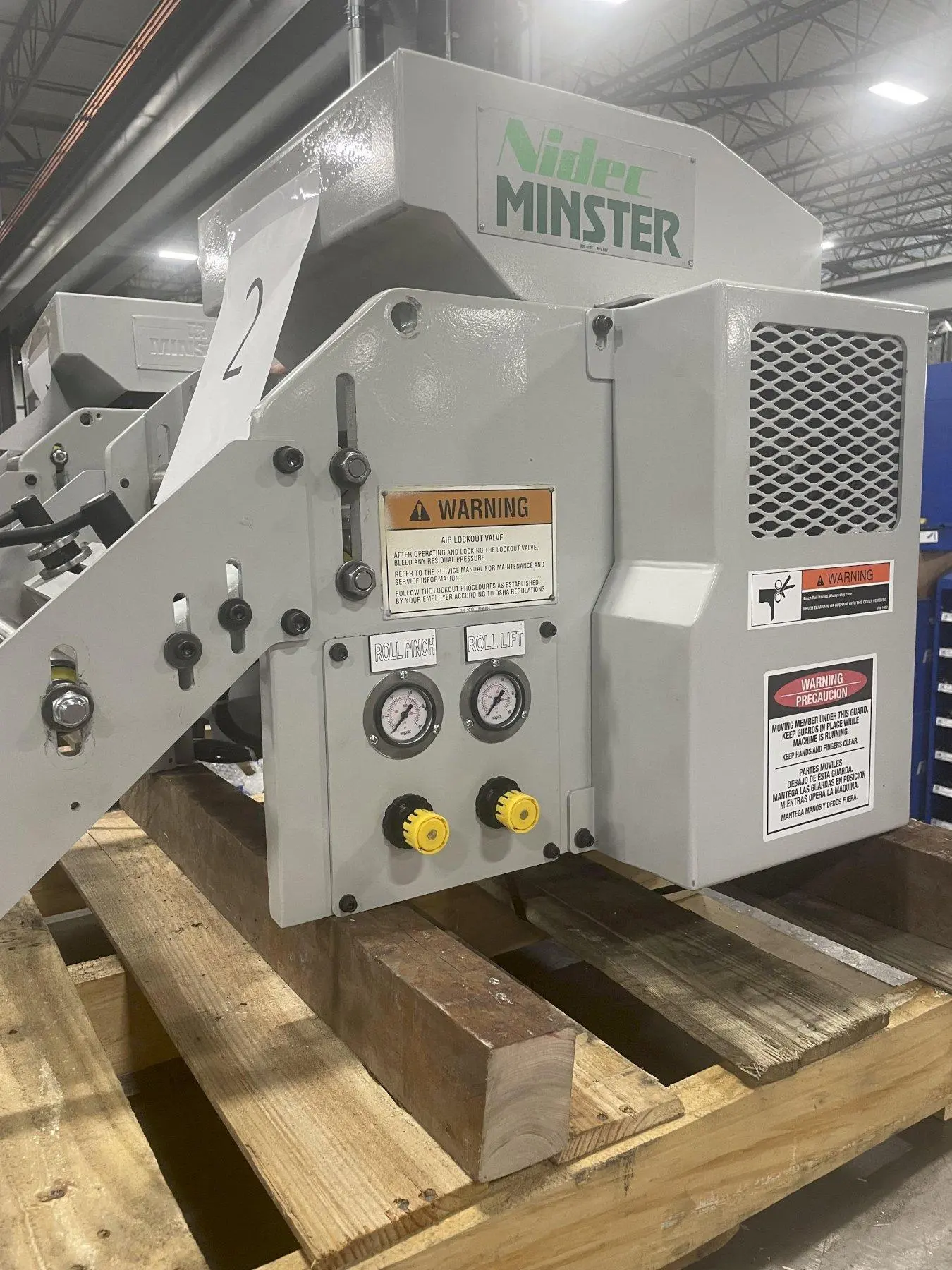

MINSTER Servo Roll Feed Press Feed 14" Wide
Minster Servo Roll Feed Press Feed Specifications:
Stock width capacity: 14"
Stock thickness capacity: .135" x 14" Wide
Stock thickness capacity: .170" x 06" Wide
SPM: Consult sales
Minster Servo Roll Feed Press Feed Equipment and Features:
3 inch diameter upper and lower servo feed rolls
Air operated upper servo feed roll lift/pilot
Outboard pressure regulators for servo feed roll lift/pilot adjustments
Matte chrome finish on upper and lower servo feed rolls
Adjustable stock width edge guides via hand crank
Cascade loop support rollers
Press mounted
NEW AC Servo drive and control package
Operator's interface keypad for all machine functions
Job memory storage batch counting feed angle usage monitor etc
Feed length capability of 0 to 99.999 inches
Remote pendant control for jog forward and reverse
Free standing sloped front servo roll feed Nema-12 enclosure
Fused disconnect
480 Volt
Optional:
New adjustable pass line press mounting bracket - consult sales
Reconditioned including new servo controls
Warranty: One year parts and labor
Terms: 40% Deposit, net prepaid
