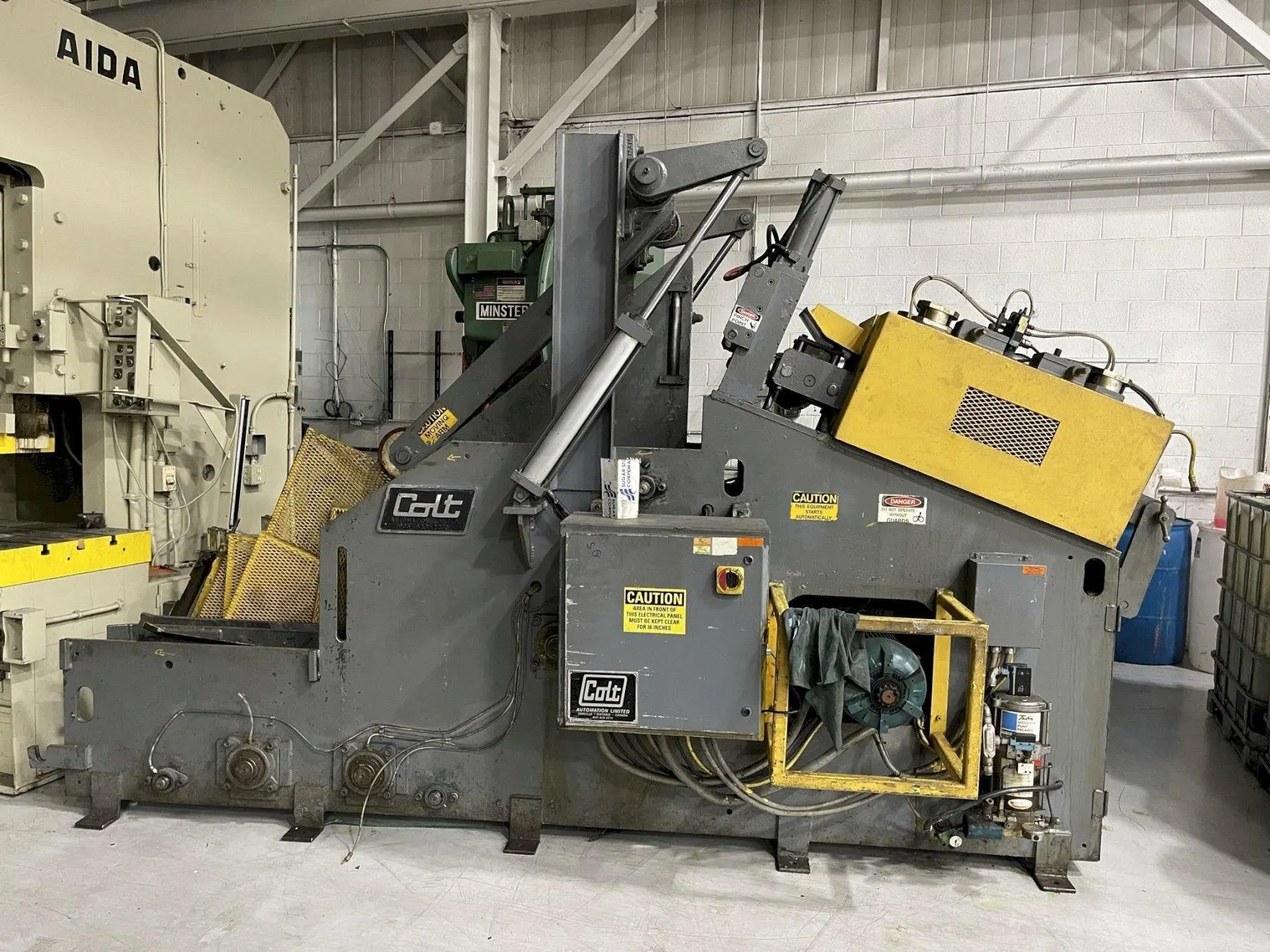

USED COLT CSHCE-80-12

COLT Coil Cradle Straightener Combination 8,000 Lbs x 12" Wide

Colt Coil Cradle Straightener Combination Uncoiler Specifications:
Coil weight capacity: 8,000 Lbs.
Coil width capacity: 12"
Stock thickness capacity: .190" x 12" Wide
Stock thickness capacity: .250" x 06" Wide
Coil O.D. capacity: 60"

Colt Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Entry and exit coil cradle straightener pinch rolls x 5" diameter
Air operated upper entry and exit pinch roll adjustment
Seven coil cradle straightening rolls x 4" diameter
Bank type upper straightening roll adjustments
Inclined coil cradle straightening head
Adjustable stock width edge guides
Air operated entry coil end-debender
Air operated coil hold down arm
Exit cascade loop support rollers
Adjustable coil side plates
Coil storage rack
Outboard air pressure regulators and gauges
Operator's control console
Jog forward and reverse
Auto / Run cycle
Loop control
