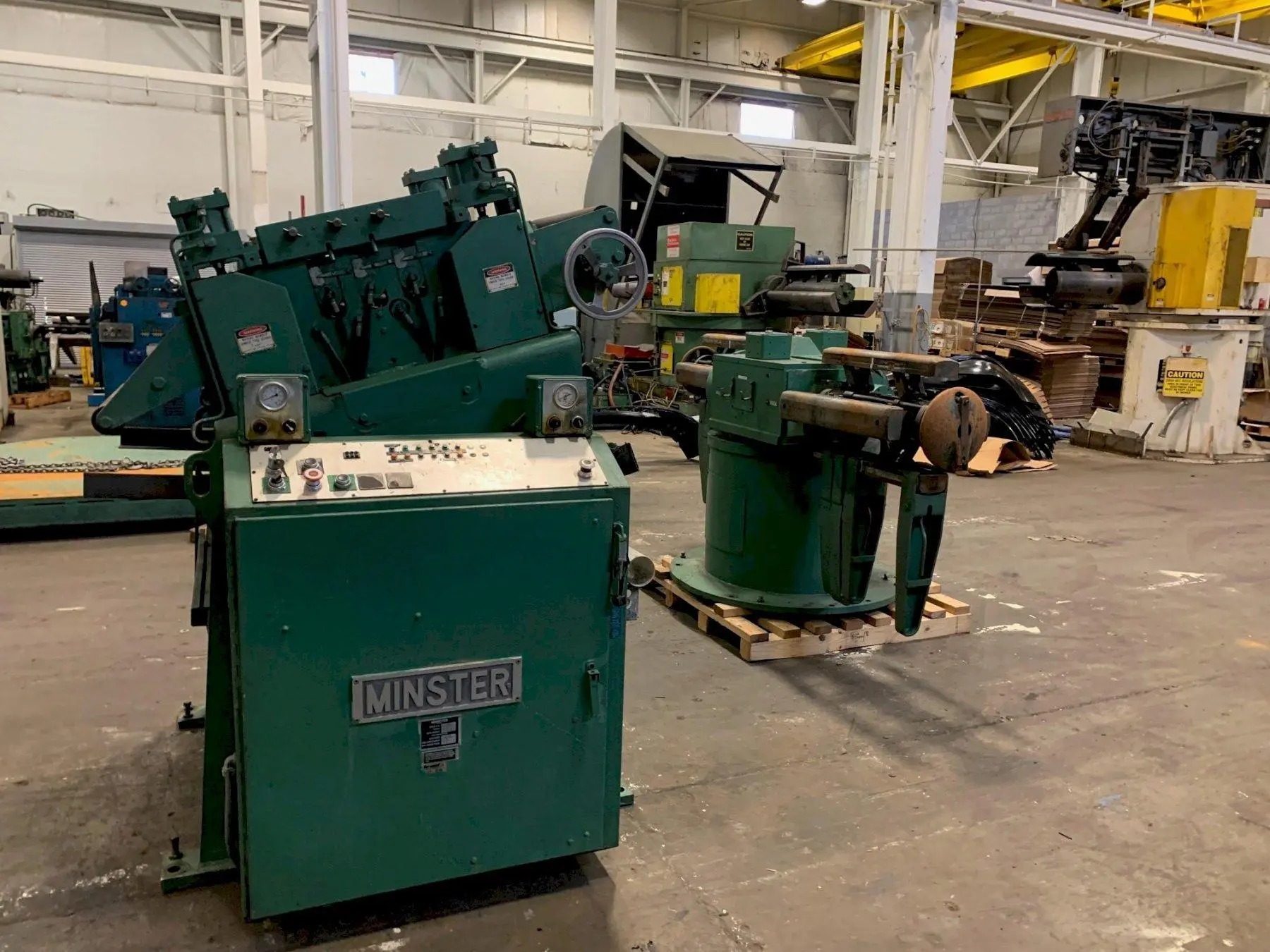

USED MINSTER MR6-20 / MS20-20-7

Minster Double End Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 6,000 Lbs.
Coil width capacity: 20"
Stock thickness capacity: .090" x 20" Wide
Expansion range: 16" - 20"
Coil O.D. capacity: 60"

Minster Double End Coil Reel and Powered Straightener Combination Equipment and Features:Minster Double End Coil Reel Uncoiler Model No.: MR6-26DThree leaf mandrel coil reelAdjustable coil keeper arms Manual mandrel expansion
Flip out front mounted expansion handlesAir drag brake mounted on main coil reel spindleOutboard air regulator for drag brake adjustment
Minster Powered Coil Straightener Model No.: MS20-20-7Entry and exit powered coil straightener pinch rolls with air operated adjustment Outboard air regulator for upper powered coil straightener pinch roll air pressure adjustmentSeven coil straightening rolls x 2" diameterStock width edge guides via hand crankInclined powered coil straightening headAutomatic lubrication system Two roll cascade loop support sectionVariable speed powered coil straightener driveJog forward and reverseAuto / Run cycleLoop control
