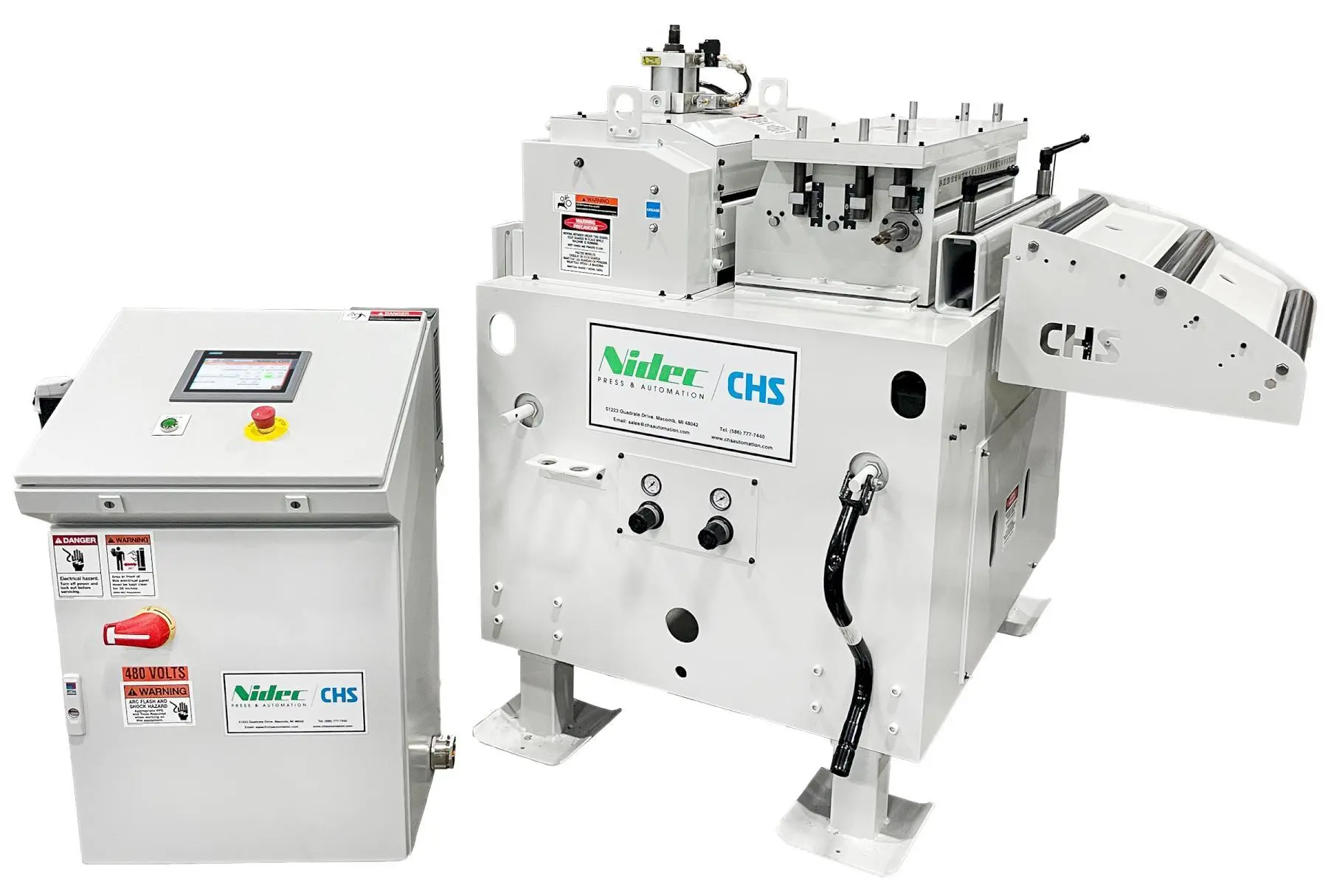

NEW NIDEC-CHS MXS-336 / DPR-10,000# X 36-RH

NIDEC-CHS / Dallas Coil Feed Line 10,000 Lbs. x 36" Wide

Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 36"
Stock thickness capacity at full width: .093"
Stock thickness capacity at 06" width: .140"

NEW NIDEC-CHS Servo Roll Feed - Straightener Combination Model No. MXS-336Three inch diameter upper and lower feed rolls Piloting upper feed roll - pneumatic
Adjustable stock width edge guides
Seven straightening rolls
Entry pinch rolls for stock threading
Adjustable stock width edge guides
Entry cascade loop support rollers
HD Cabinet base with adjustable pass line
AC Servo drive and control package
Touch screen HMI
480 Volt
Machine set to left to right feed direction
Warranty: New Machine 4 - 2: Year: https://www.minster.com/c/CHS4-2_Warranty.pdf

Dallas Ind. Motorized Coil Reel Uncoiler and Load Car Equipment and Features:
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Adjustable coil reel keeper arms
Air operated coil hold down arm
Motorized coil hold down arm end wheel
Self contained hydraulic pump unit
Traveling coil load car
Powered lift and travel
Adjustable narrow coil supports
Coil car track
Operator's control station
Jog forward and reverse
Auto / Run cycle
Loop control
Warranty:  MDNA Thirty day return privilege
