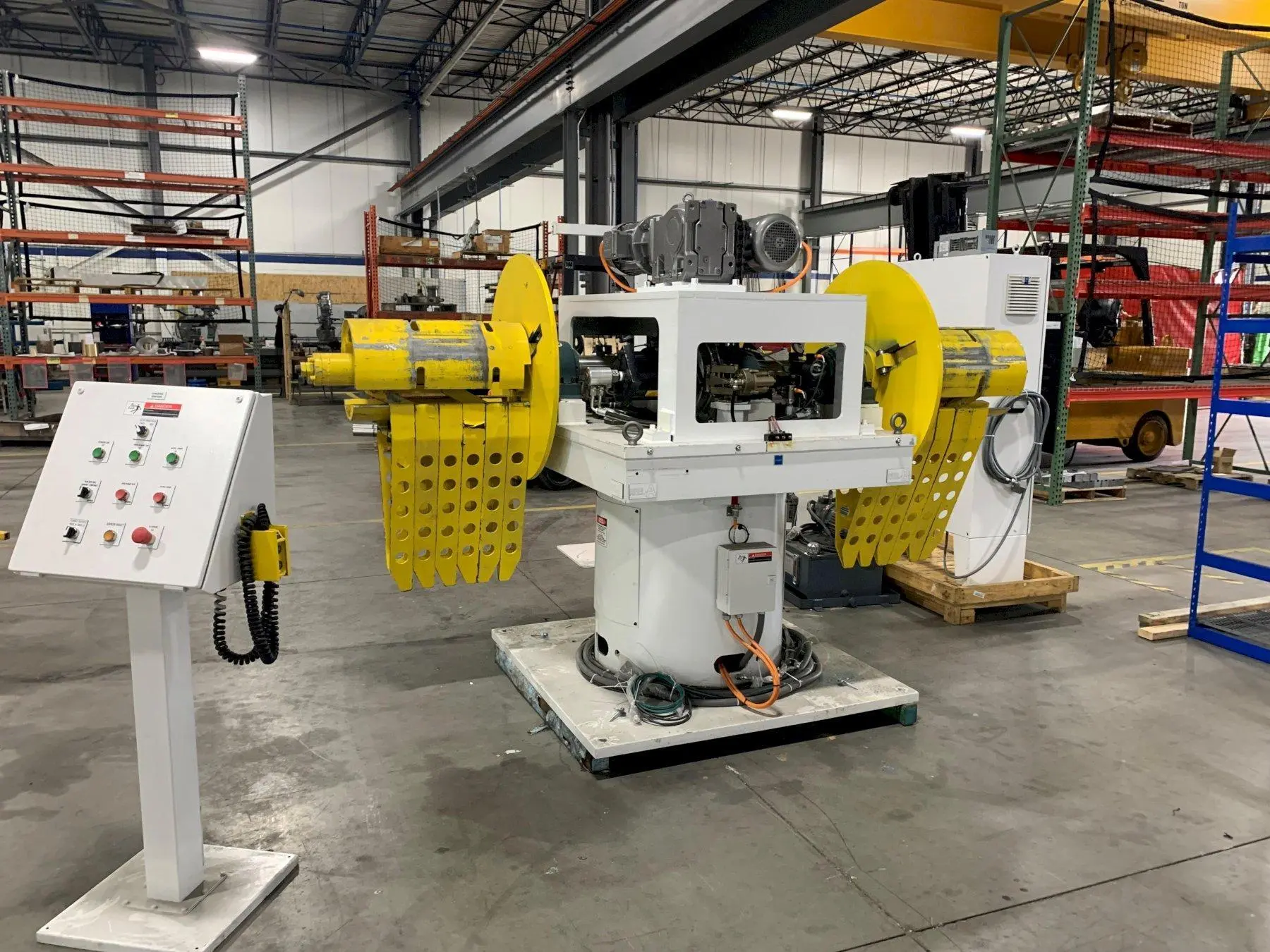

NIDEC CHS Double End Motorized Coil Reel 8,000 Lb x 18" Wide
NIDEC CHS Double End Motorized Coil Reel Specifications:
Coil weight capacity: 8,000 Lb. (Per Side)
Coil width capacity: 18"
Expansion range: 16" - 21"
Coil O.D. capacity: 60"
NIDEC CHS Double End Motorized Coil Reel Equipment and Features:
Three leaf mandrel assemblies
Hydraulic H Link type expansion
Full set of coil keeper arms
Air brakes mounted on main spindles (caliper type)
Locking pin for main turret
Hydraulic turret rotation
Centralized lubrication points
Hand held pendant control for jog forward / reverse functions
Dual AC variable frequency drive system
Free standing electrical enclosure
Free standing pedestal operators control station
Fused disconnect
Auto / Run cycle
Laser loop control
