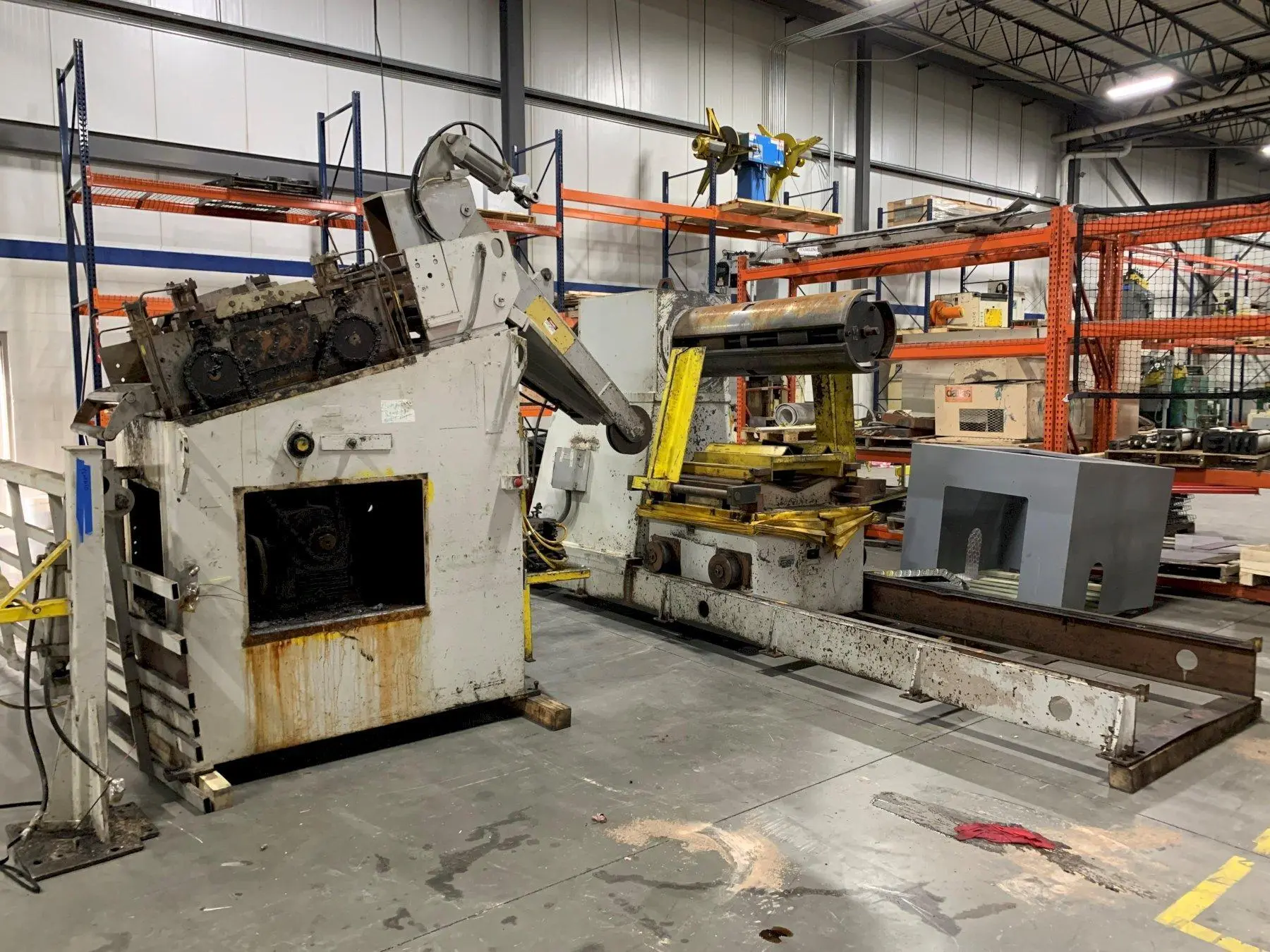

USED PERFECTO RS30-36B . 28-36-7

Perfecto Coil Feed Line 30,000 Lbs. x 36" Wide

Stock thickness capacities:
Max stock thickness at 36" wide:  .104"
Max stock thickness at 18" wide: .140"

Perfecto Coil Reel Model No. RS30-36B
Three leaf mandrel
Hydraulic mandrel expansion
Threading drive for jog forward and reverse
Air brake (adjustable tensioning)
Traveling coil load car
Powered lift and travel

Perfecto Powered Coil Straightener Model No. 28-36-7
Entry and exit pinch rolls with air operated adjustment
Seven straightening rolls x 2.8" diameter
Back up support rollers on upper and lower straightening rolls
Individual upper roll adjustments
Coil hold down arm with motorized end wheel
Stock peeler table
Adjustable stock width edge guides
AC VFD drive and control system
Operator's control station
Jog forward and reverse
Auto / Run cycle - loop control
Perfecto Exit Threading Table

Perfecto Servo Roll Feed - Specs to be confirmed

Optional:
NEW NIDEC-CHS Servo Roll Feed (Stock machine)
Model MX-4536
4.5" Diameter feed rolls
Matte chrome finish
Pilot release upper feed roll
Adjustable stock width edge guides
Cabinet base mounted
Adjustable pass line
Right to left feed direction
SIEMENS AC Servo drive and control package (NIDEC-CHS Standard)
