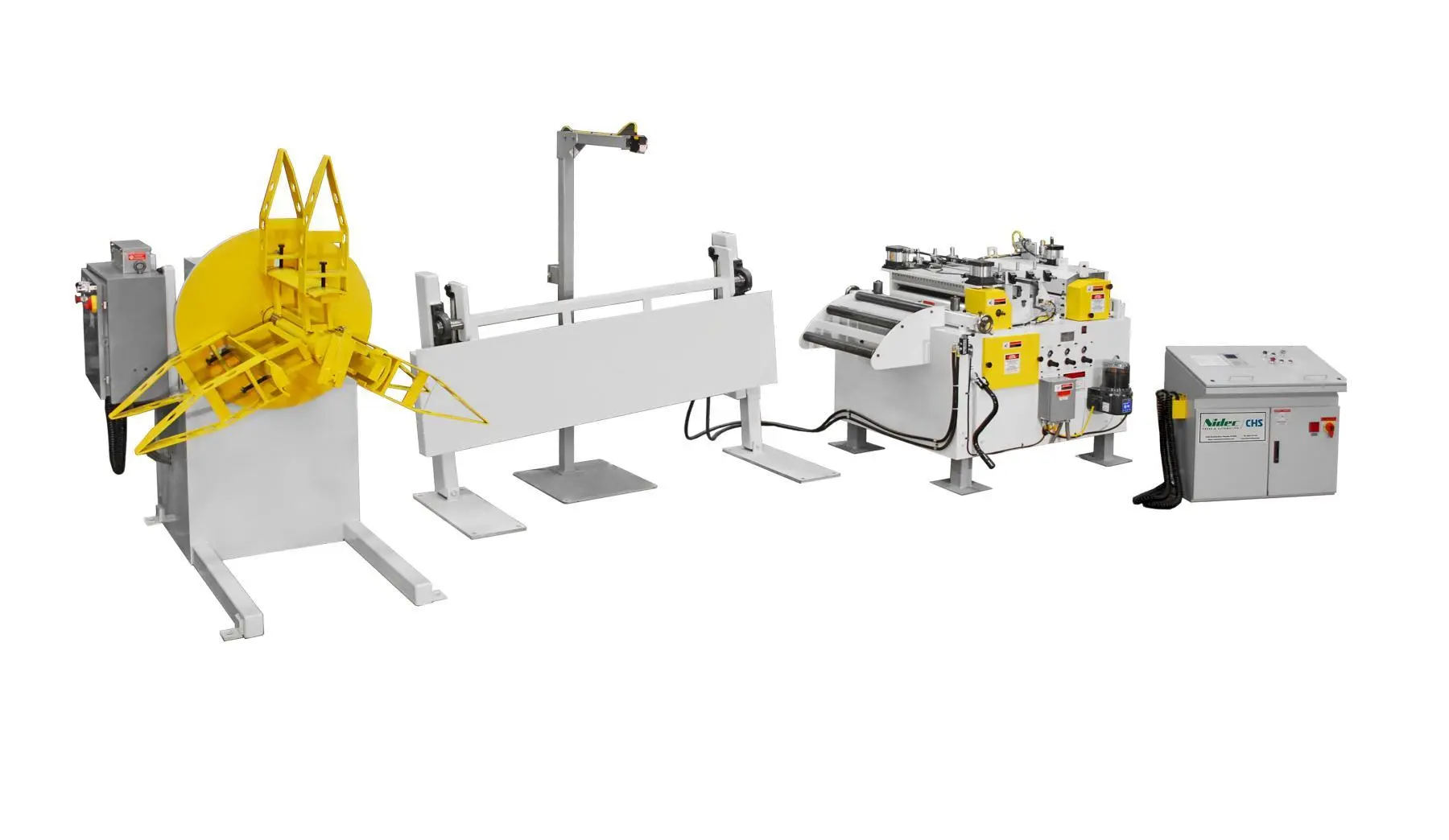

NEW 2024 CHS R80-24DR / MXS-324

(NEW) NIDEC-CHS Complete Coil Feed Line 8,000 Lbs. x 24" Wide

NIDEC-CHS Complete Coil Feed Line
Stock Thickness:  .093" x 24" Wide
Stock Thickness:  .140" x 06" Wide

NIDEC-CHS Coil Reel Model No. R80-24-DR
Full set of adjustable coil keeper arms (6)
Mandrel expansion - manual Mandrel shaft mounted in main bearing tube Motorized payout AC VFD control system480VOperator's control Remote pendant control for jog functions Auto / run cycle Variable speed (payout) laser loop control system

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Equipment and Features:Three inch diameter full width upper and lower servo feed rollsMatte chrome finish on servo feed rollsAir operated upper servo feed roll adjustment / pilot Centralized lubrication pointsCabinet base mounted with heavy duty pass line adjustmentSolenoid controlled pilot release Straightener model no PL-225-5-24Five servo feed straightening rolls x 2.25" diameterUpper servo feed straightening roll adjustmentsServo feed pinch roll for stock threading via crank handle (manual)Cascade loop support rollersAC servo roll feed drive and controls (Consult sales for complete details)Job memory storageBatch countingOn the fly micro adjustmentFree standing sloped front servo roll feed control consoleRemote pendant control for jog forward and reverseFused disconnect480 Volt

Consult sales full detailed OEM specifications and quotation
