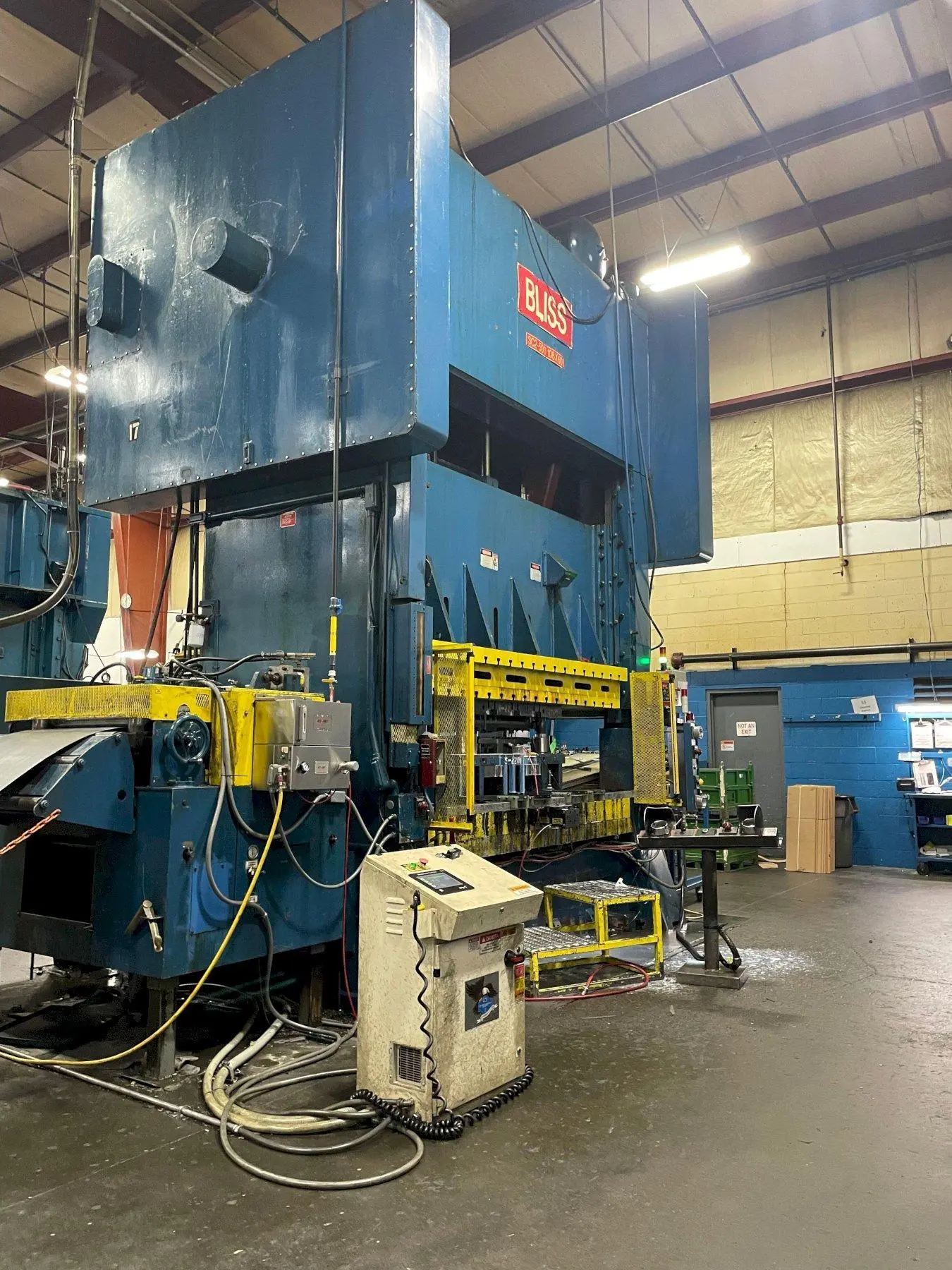

USED BLISS SC2-500-108

500 TON BLISS SC2-500-108-60 Straight Side Mechanical Press, Year 1989

500 ton Bliss Straight Side Mechanical Press
Press Model No SC2-500-108-60

14" Stroke
44" Shut Height (SDAU) on Bed
36" Die Height On Bolster
12" Motorized Adjustment
108" LR x 60" FB Bed Area
108"  LR x 60" FB Slide Area
20 - 50 VSPM

Equipped with and Features:
Air Clutch And Brake
Air Counterbalances
Recirculating Lube System
8" T Slotted Bolster
T-Slotted With Knockouts
(2) Plug In Pedestal Palm Button Stations
75 HP Dynamatic Eddy Current Drive
Light Curtains Front And Back
37" Wide Windows
Floor Standing

Footprint: 148" x 102"
245" Max Overall Height

Machine can be seen under power
